Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the bulb socket.

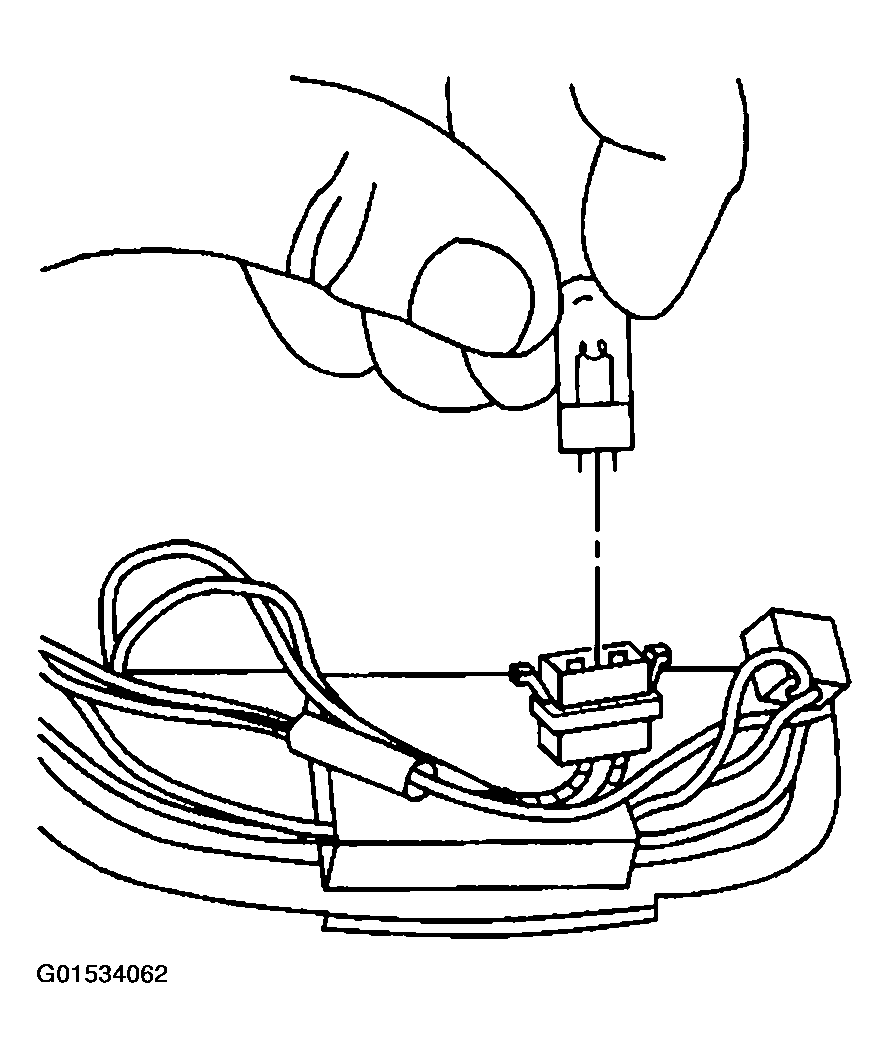

    Fig 1: Installing Bulb Into Bulb Socket
    G01534062Courtesy of GENERAL MOTORS CORP.
  2. Push the lamp socket into the housing.
  3. Align the forward tab on the switch block/reading lamp housing into the slot in the front of the overhead console.
  4. Align the rear locking tabs to the overhead console.
  5. Press up on the switch block/reading lamp housing in order to snap them into the trim ring.

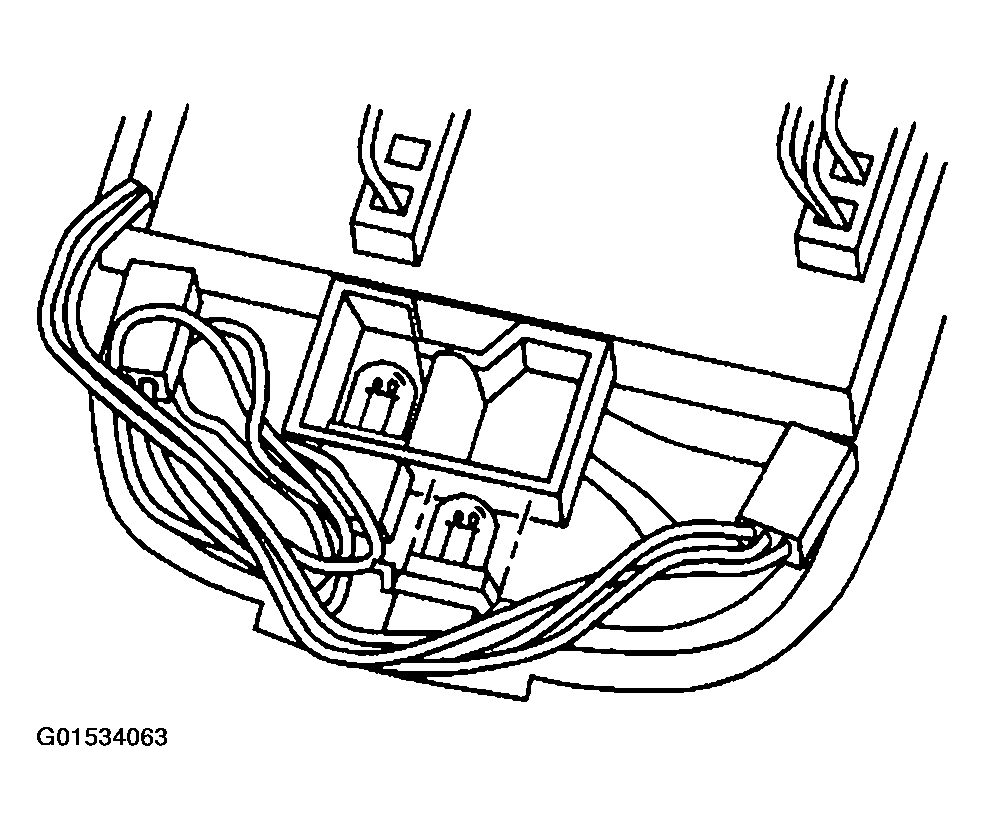

    Fig 2: Installing Reading Lamp Socket Into Housing
    G01534063Courtesy of GENERAL MOTORS CORP.
