Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the socket.
  2. Install the socket to the front park/turn signal/sidemarker lamp.
  3. Position the front park/turn signal/sidemarker lamp to the fender:
    1. Locate the tabs into the fender.
    2. Install the tab into the headlamp bracket.
  4. Install the wing nut to headlamp bracket and hand tighten.
  5. Close the hood.

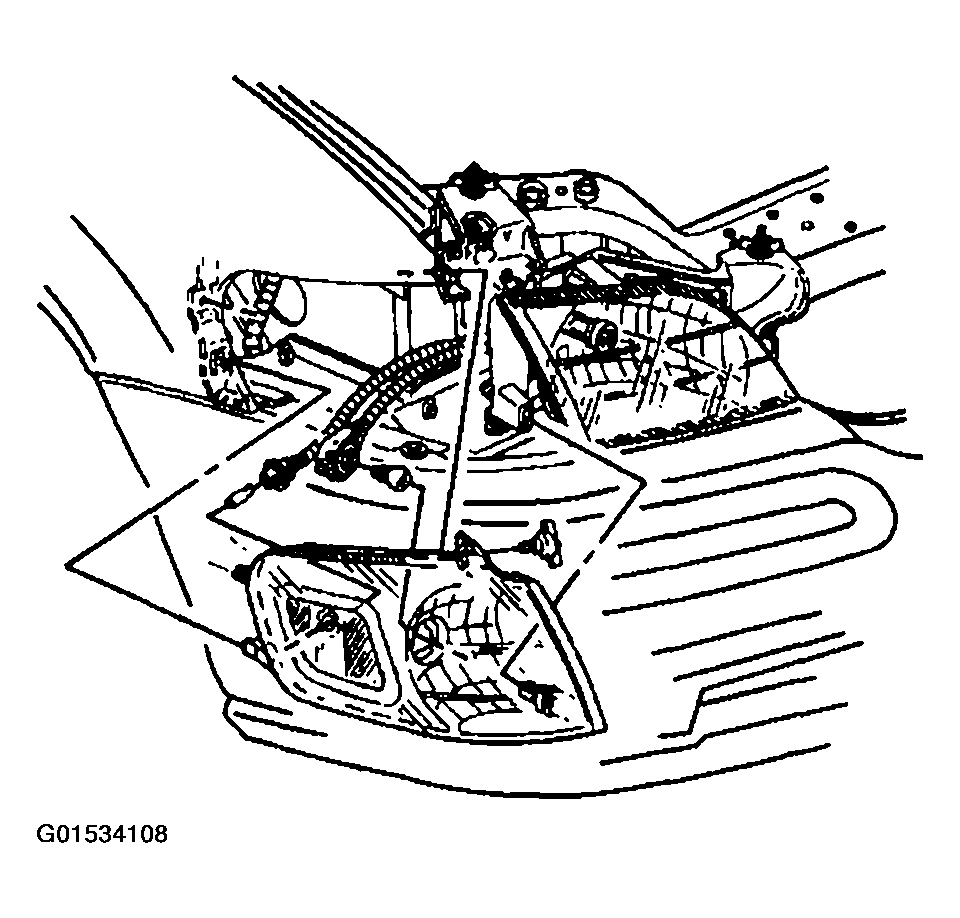

    Fig 1: Installing Front Park/Turn Signal/Sidemarker Lamp From Fender
    G01534108Courtesy of GENERAL MOTORS CORP.
