Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the compartment door.
  2. Pry the compartment lamp outward in order to remove the compartment lamp.
  3. Remove the bulb from the socket.
  4. Disconnect the electrical connector.

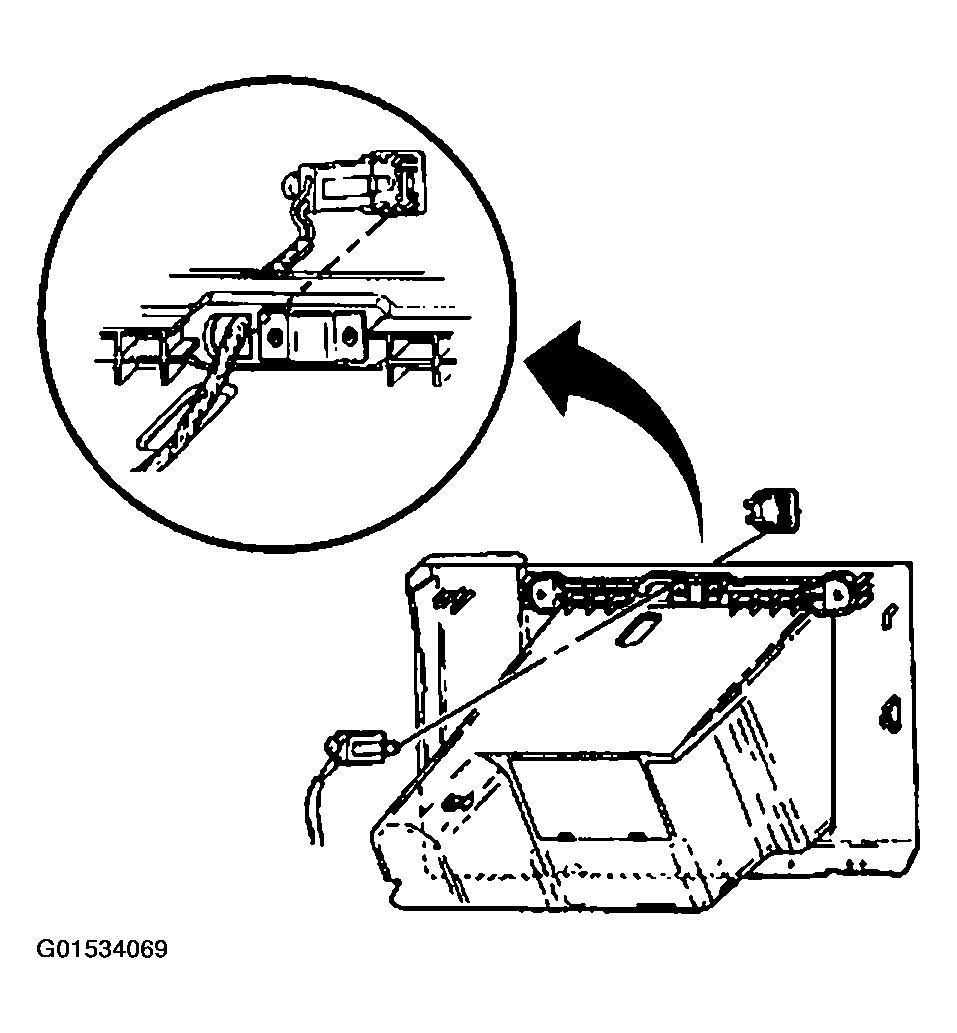

    Fig 1: Removing Instrument Panel Compartment Lamp Bulb From Socket
    G01534069Courtesy of GENERAL MOTORS CORP.
