Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the bulb into the lamp socket.
  3. Apply pressure to the compartment lamp until the compartment lamp snaps in.
  4. Close the compartment door.

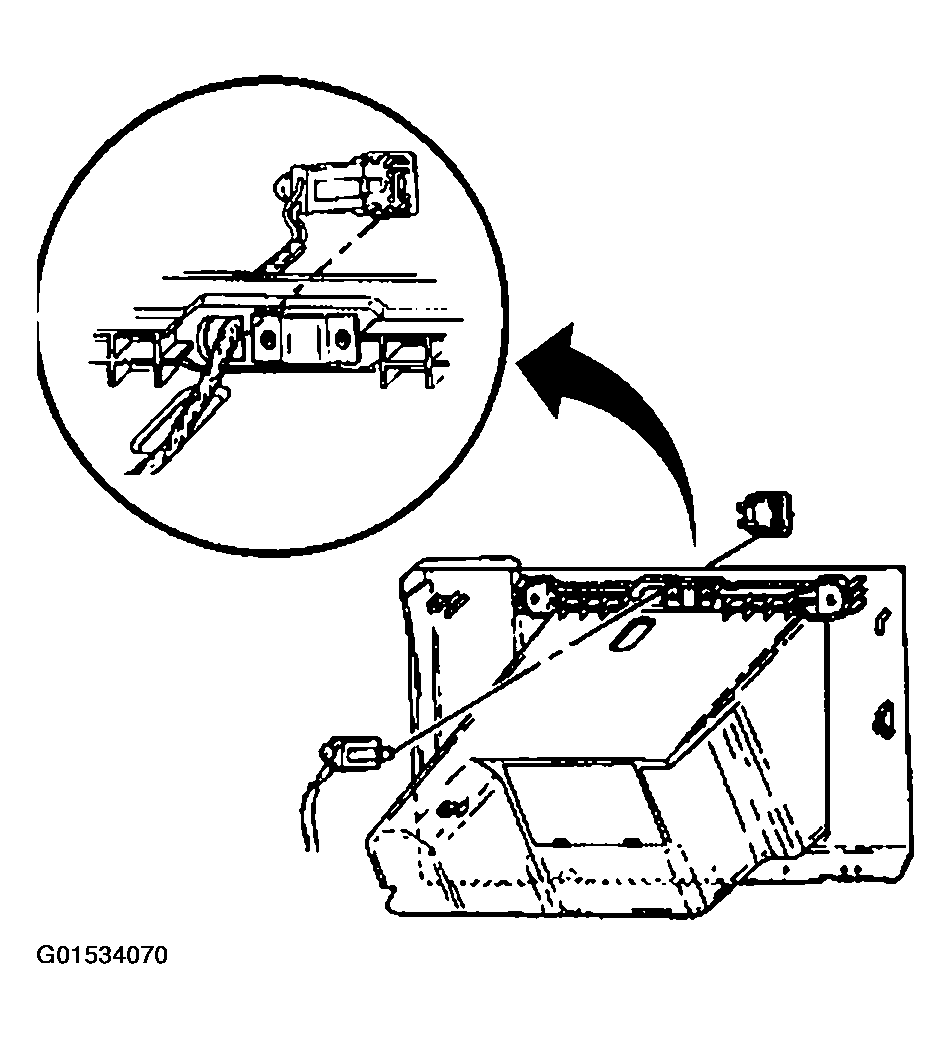

    Fig 1: Installing Instrument Panel Compartment Lamp Bulb Into Socket
    G01534070Courtesy of GENERAL MOTORS CORP.
