Headlamp Aiming Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Measure from the floor to the center of the headlamp bulb.
  3. At the screen, measure from the floor and place the horizontal tape at the measured distance.
  4. Measure from the reference line on the floor to the left headlamp bulb centerline.
  5. At the screen, measure from the reference line and place the vertical tape at the measured distance.
  6. Measure from the reference line on the floor to the right headlamp bulb centerline.
  7. At the screen, measure from the reference line and place the vertical tape at the measured distance.
    Fig 1: Identifying Screen Distance From Vehicle
    G01534091Courtesy of GENERAL MOTORS CORP.

    Important:  Do not cover the headlamp, this may cause excessive heat build up.

  8. Turn ON the low beam headlamps and block the light from projecting onto the screen from the passenger side headlamp.

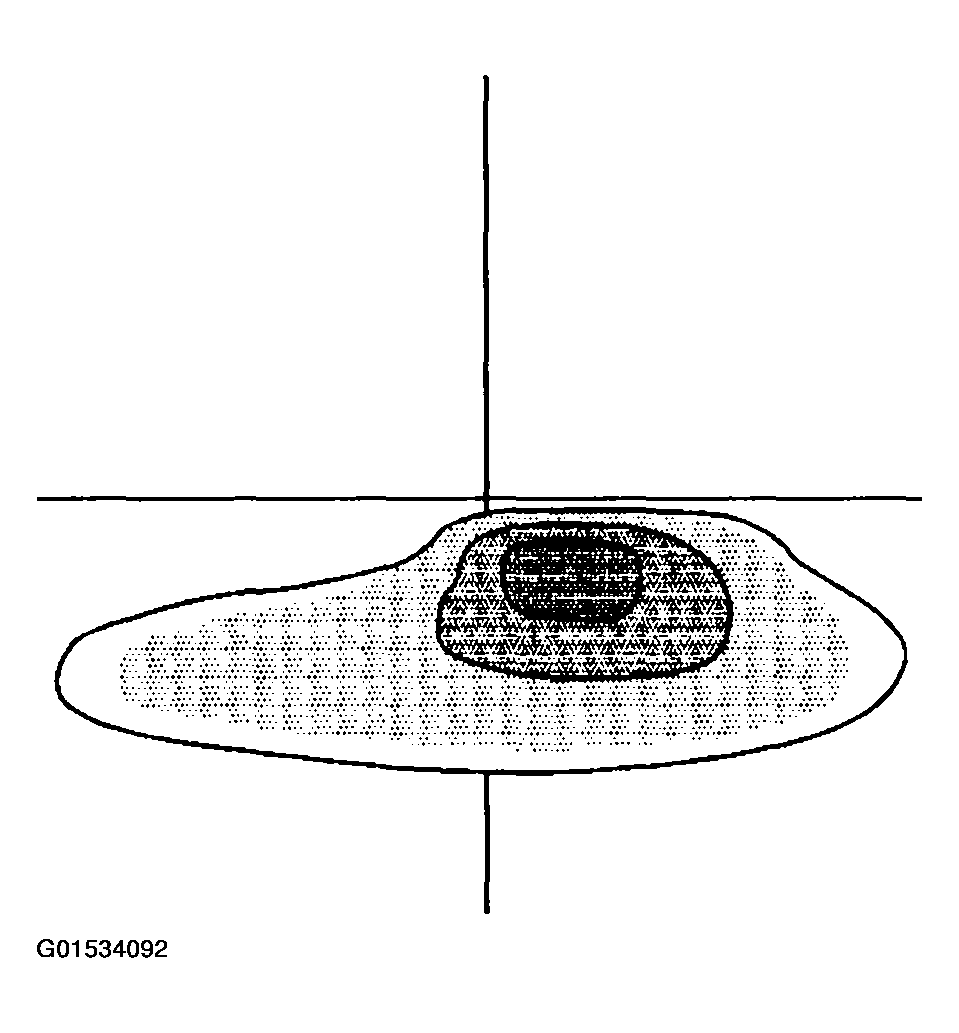

    Fig 2: Identifying Light Projection
    G01534092Courtesy of GENERAL MOTORS CORP.
  9. Adjust the horizontal and vertical aim of the headlamps to the specifications required by the state and the local authorities, or as shown in step number 8.
  10. Rotate the headlamp adjuster (1) to change the vertical aim of the headlamp.
  11. Repeat the aiming procedure for the passenger side headlamp while blocking the light from projecting onto the screen from the driver side headlamp.
  12. Turn the headlamps OFF.
  13. Close the hood.

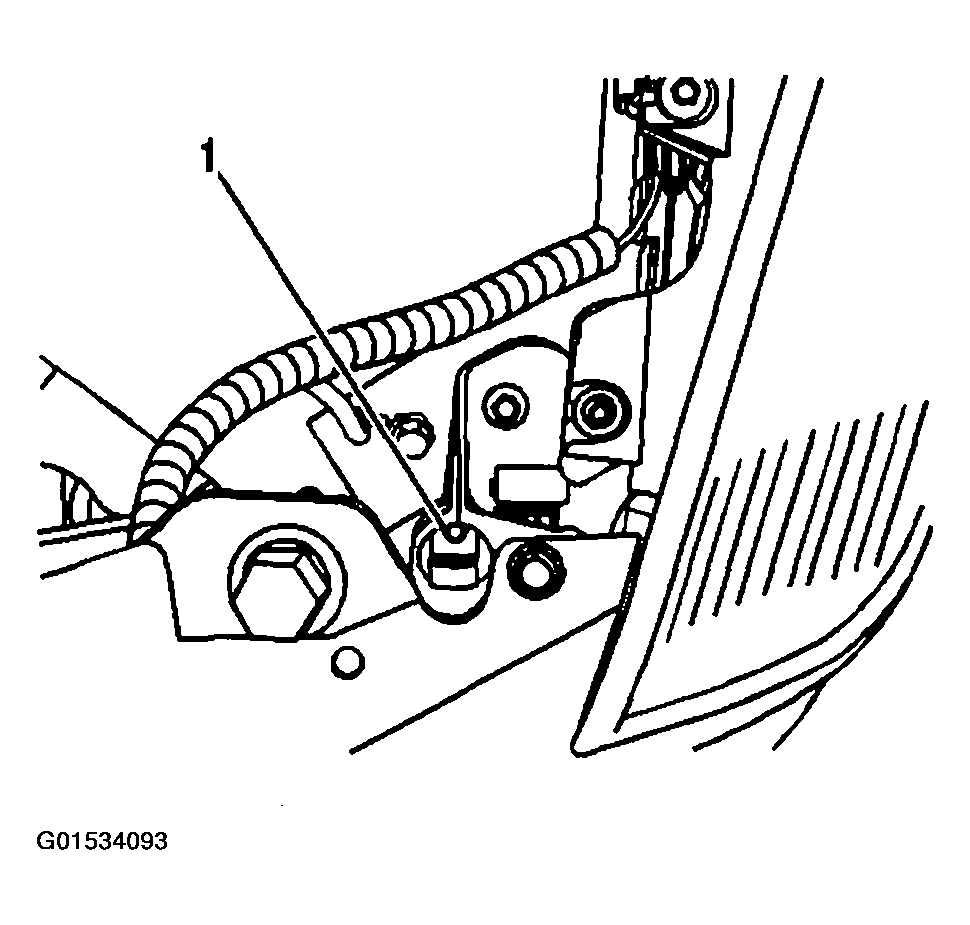

    Fig 3: Locating Headlamp Adjuster
    G01534093Courtesy of GENERAL MOTORS CORP.
