Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Partially remove the front fender liner. Refer to FENDER LINER REPLACEMENT in Body Front End.
CAUTION: Refer to HALOGEN BULB CAUTION in Cautions and Notices.
Remove the fog lamp bulb/socket from the fog lamp by rotating counterclockwise.

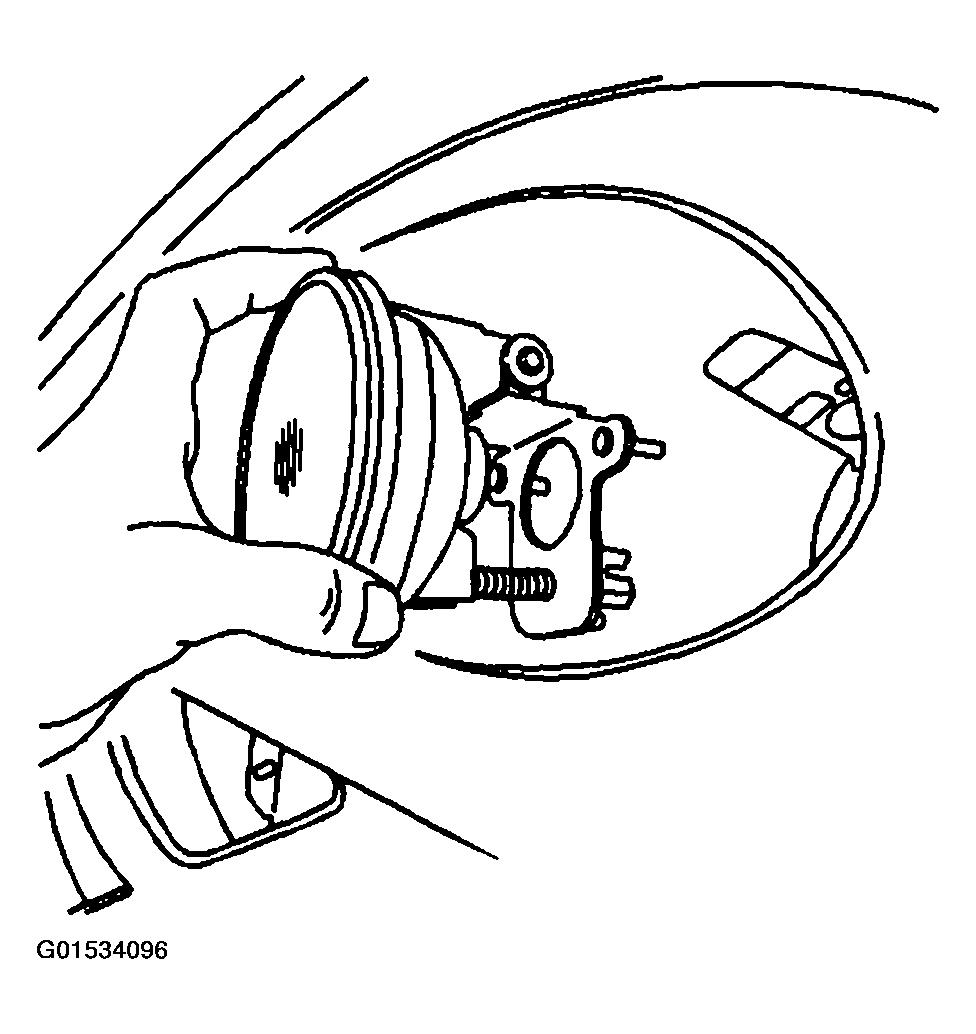

Fig 1: Removing Front Fog Lamp Bulb/Socket From Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the nuts from the fog lamp.

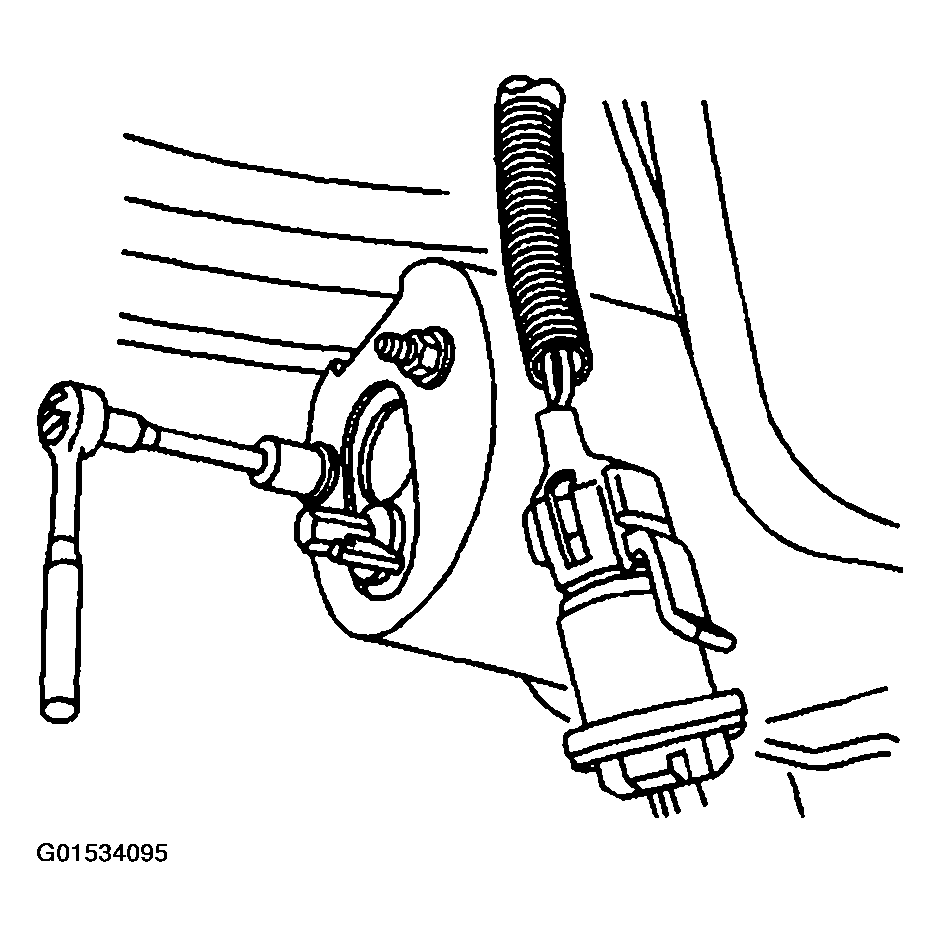

Fig 2: Removing Nuts From Front Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Remove the fog lamp from the front bumper fascia.

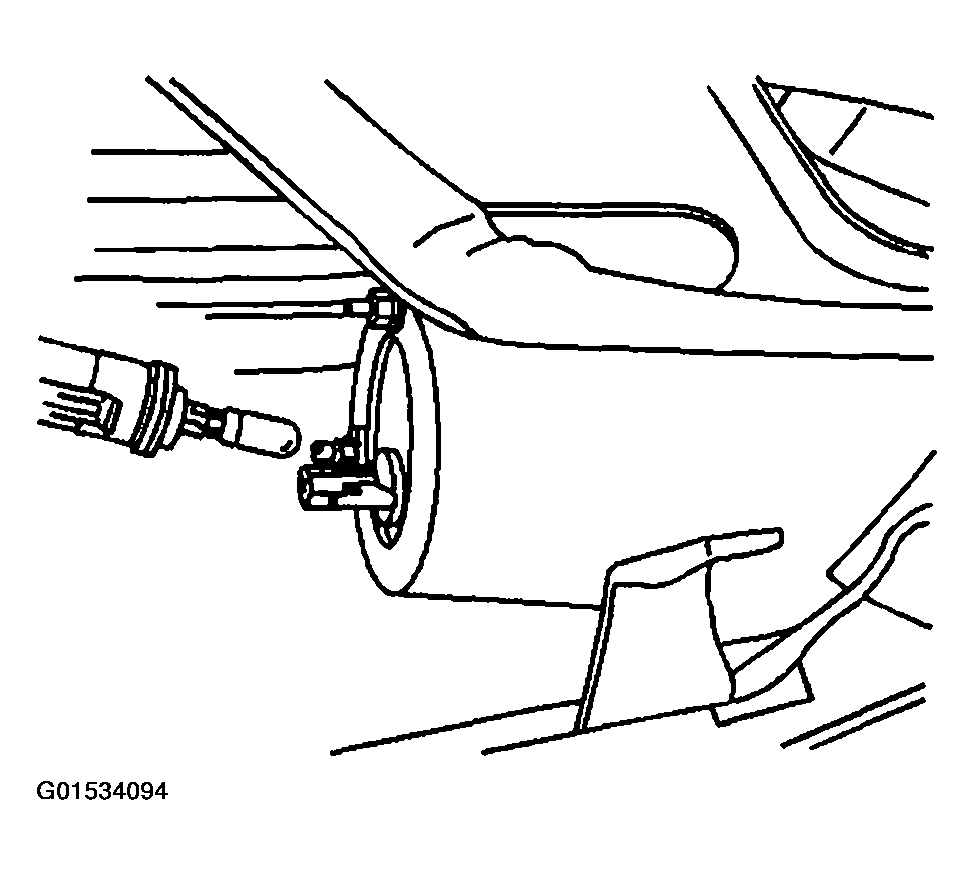

Fig 3: Removing Front Fog Lamp From Front Bumper Fascia
Courtesy of GENERAL MOTORS CORP.
