Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to HALOGEN BULB CAUTION in Cautions and Notices.
  1. Partially remove the front fender liner to gain access to the fog lamp assembly. Refer to FENDER LINER REPLACEMENT in Body Front End.
  2. Remove the fog lamp bulb/socket from the fog lamp by rotating counterclockwise.

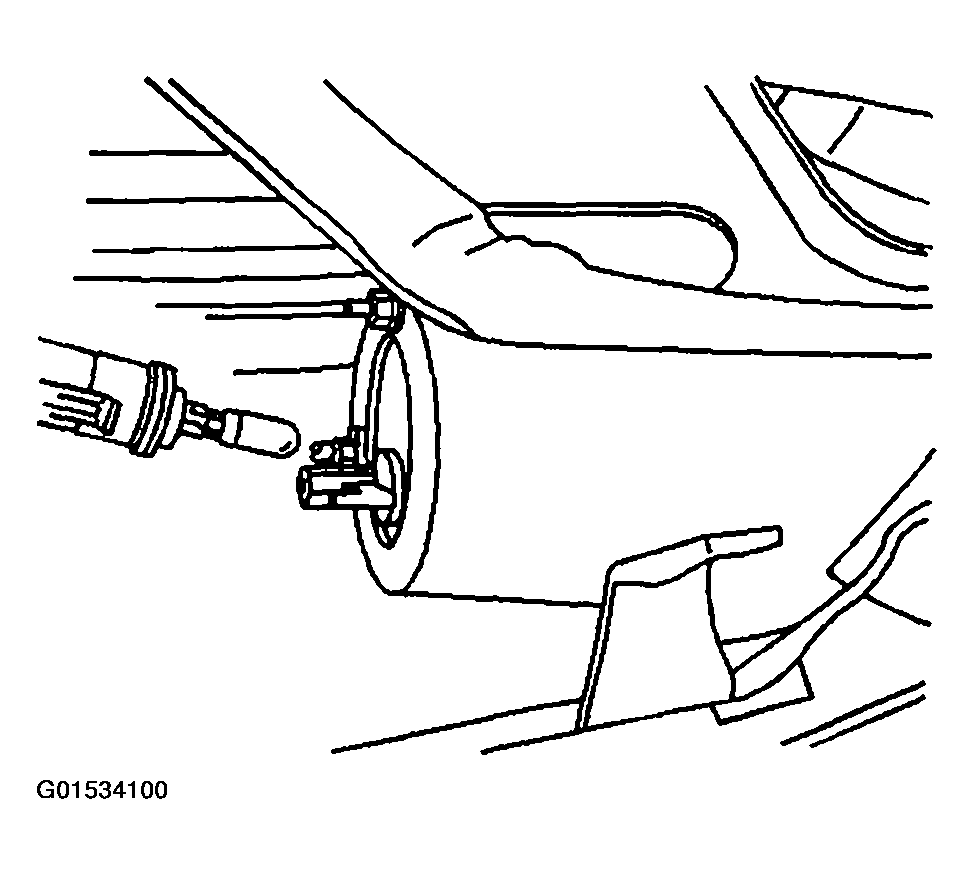

    Fig 1: Removing Rear Fog Lamp Bulb/Socket From Fog Lamp
    G01534100Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector from the fog lamp bulb/socket.

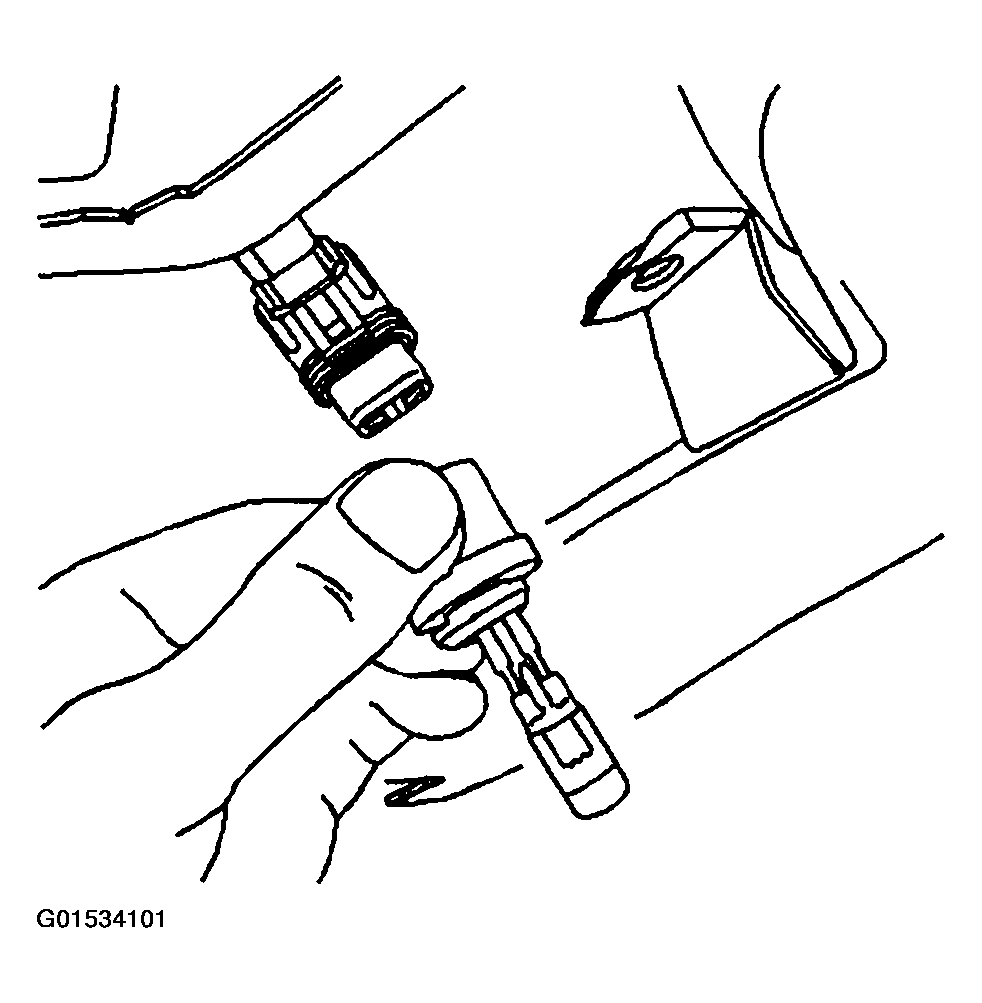

    Fig 2: Disconnecting Electrical Connector From Rear Fog Lamp Bulb/Socket
    G01534101Courtesy of GENERAL MOTORS CORP.
