Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the fog lamp bulb/socket.
  2. Install the fog lamp bulb/socket to the fog lamp rotating clockwise until fully seated.
  3. Install the front fender liner. Refer to FENDER LINER REPLACEMENT in Body Front End.

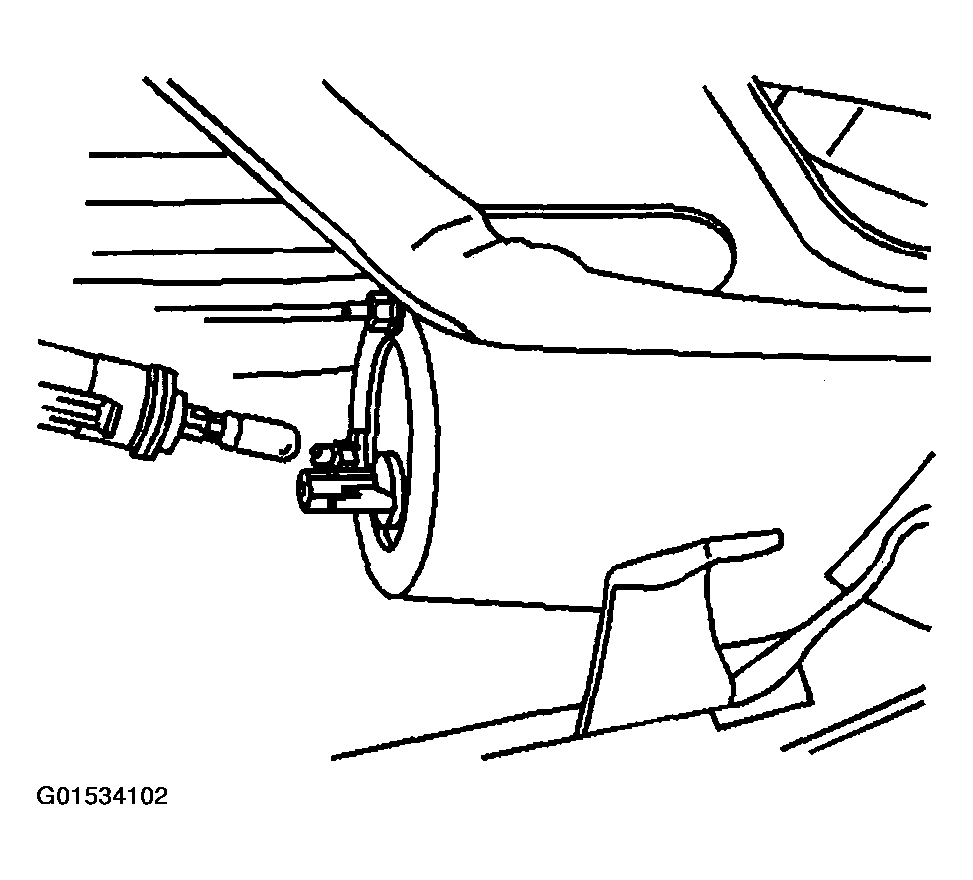

    Fig 1: Installing Rear Fog Lamp Bulb/Socket To Fog Lamp
    G01534102Courtesy of GENERAL MOTORS CORP.
