Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small, flat-bladed tool in order to release the retainers and remove the dome lamp from the headliner.
  2. Disconnect the electrical connectors from the dome lamp.
  3. Remove the dome lamp from the headliner.
    Fig 1: Disconnecting Dome Lamp Connector (Without U42)
    G01534073Courtesy of GENERAL MOTORS CORP.
  4. Use a small, flat-bladed tool in order to remove the dome lamp lens from the dome lamp.
  5. Use a small, flat-bladed tool in order to remove the bulb from the socket.

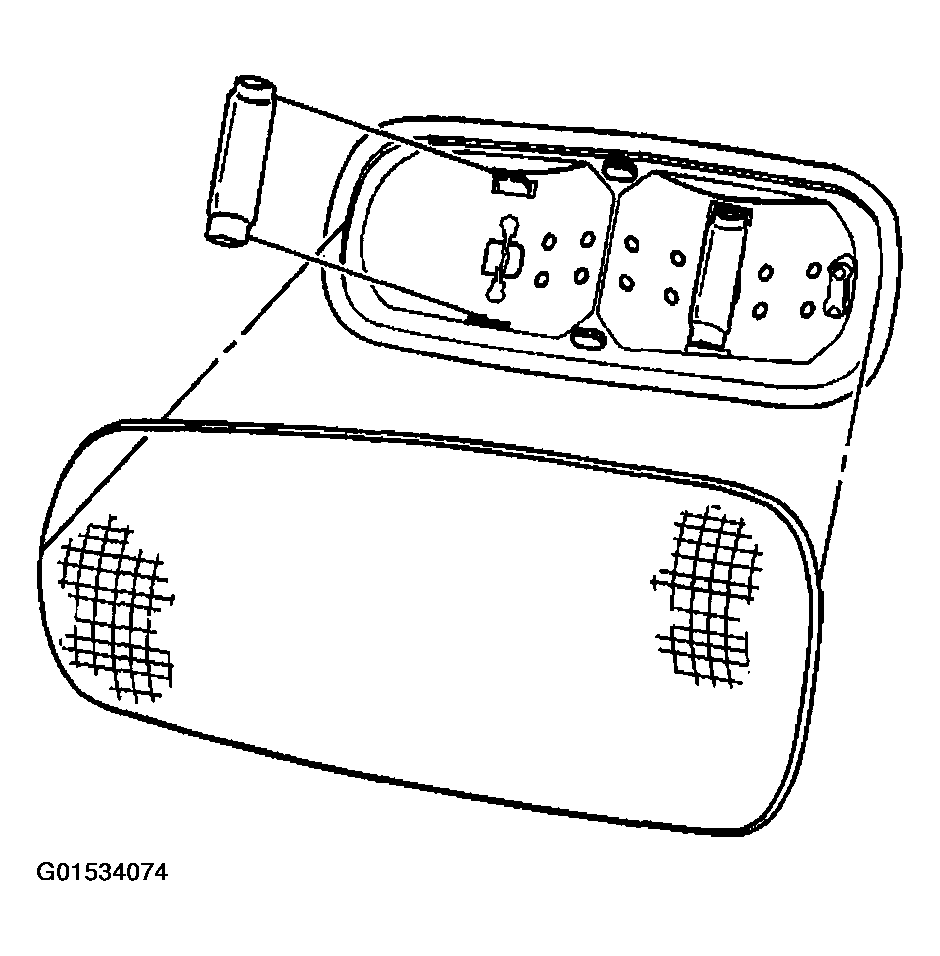

    Fig 2: Removing Dome Lamp Lens And Bulb (Without U42)
    G01534074Courtesy of GENERAL MOTORS CORP.
