Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the bulb into the socket.
  2. Snap the dome lamp lens into the dome lamp.

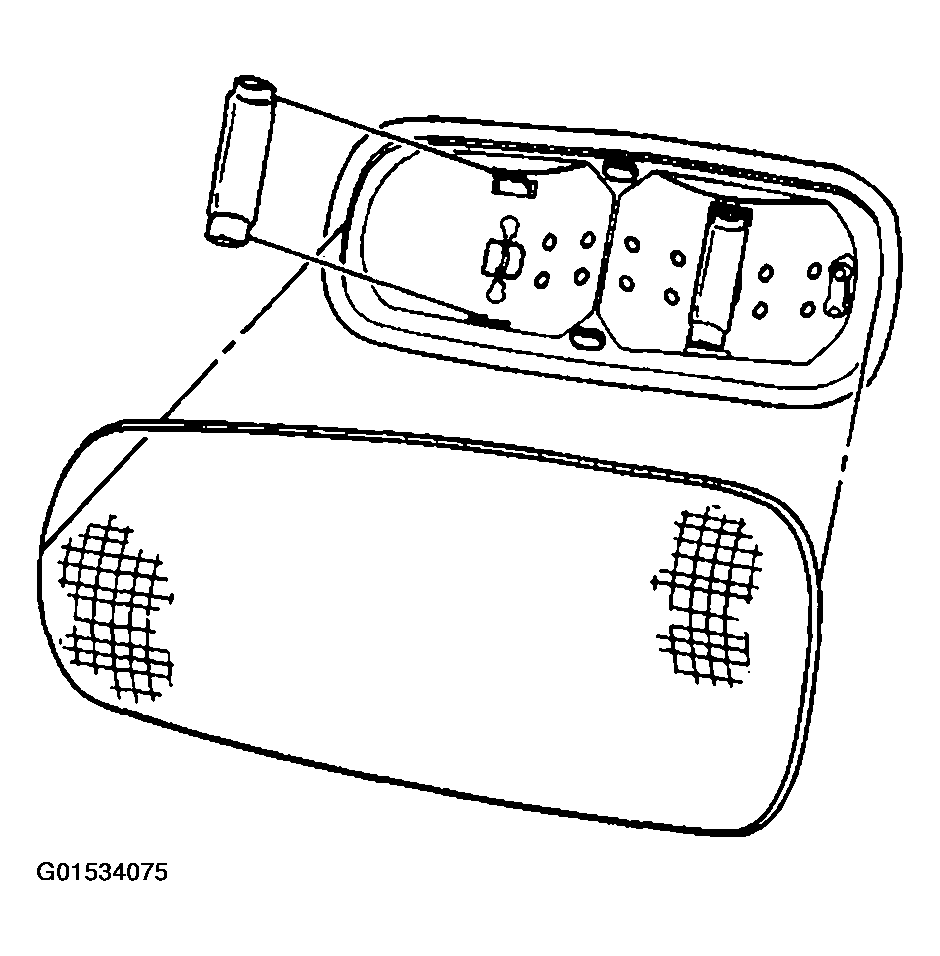

    Fig 1: Installing Dome Lamp Bulb And Lens (Without U42)
    G01534075Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connectors to the dome lamp.
  4. Install the dome lamp to the headliner.
  5. Press the dome lamp into the hole in the headliner in order to snap-in the retainers.
    Fig 2: Connecting Dome Lamp Connectors (Without U42)
    G01534076Courtesy of GENERAL MOTORS CORP.
