Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the dome lamp.
  2. Align the dome lamp to the headliner.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the screws to the dome lamp.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  4. Install the dome lamp lens cover.

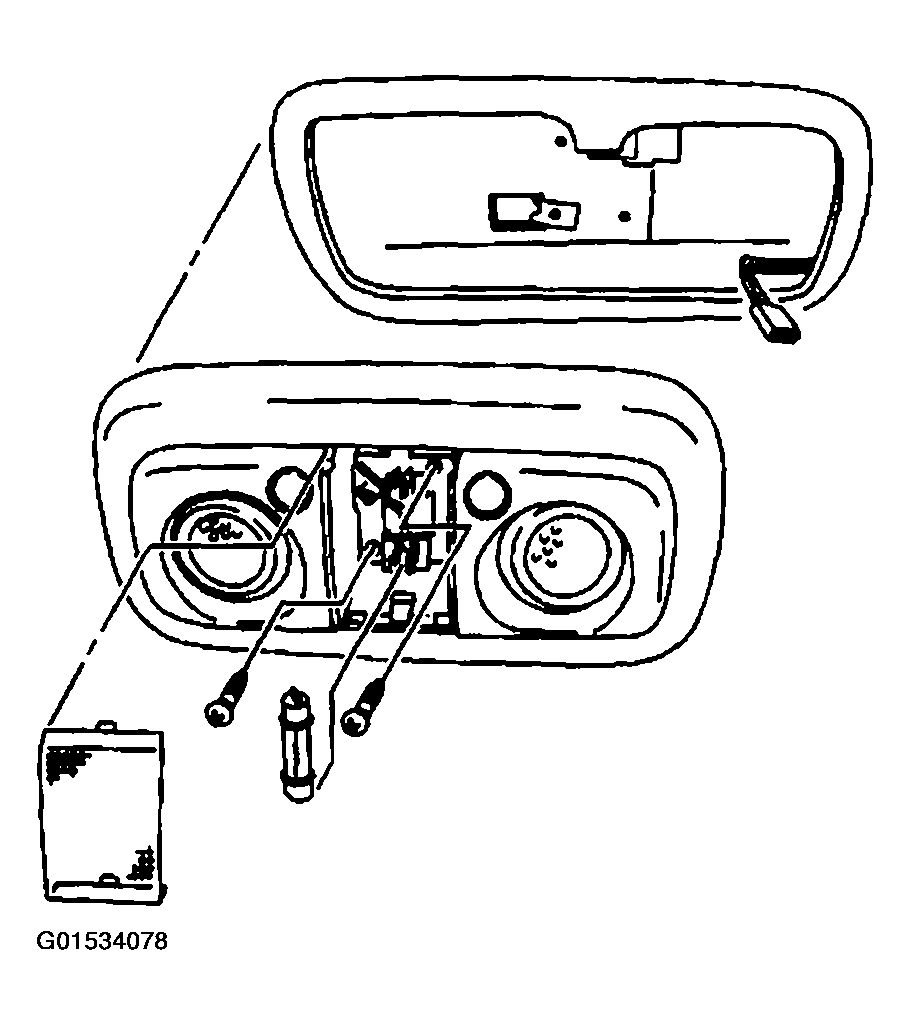

    Fig 1: Installing Dome Lamp And Dome Lamp Lens Cover (With U2)
    G01534078Courtesy of GENERAL MOTORS CORP.
