Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the VES overhead console. Refer to INTERIOR TRIM in Entertainment.
  2. Disconnect the dome light electrical connectors.

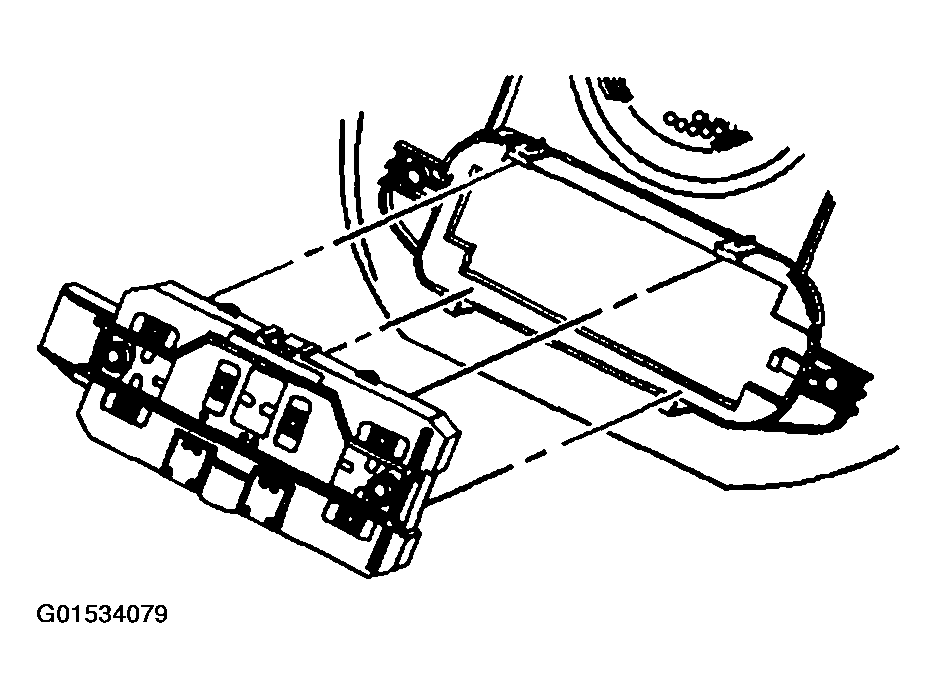

    Fig 1: Disconnecting Dome Light Electrical Connectors
    G01534079Courtesy of GENERAL MOTORS CORP.
  3. Using a flat-bladed tool, remove the dome light assembly from the overhead console.

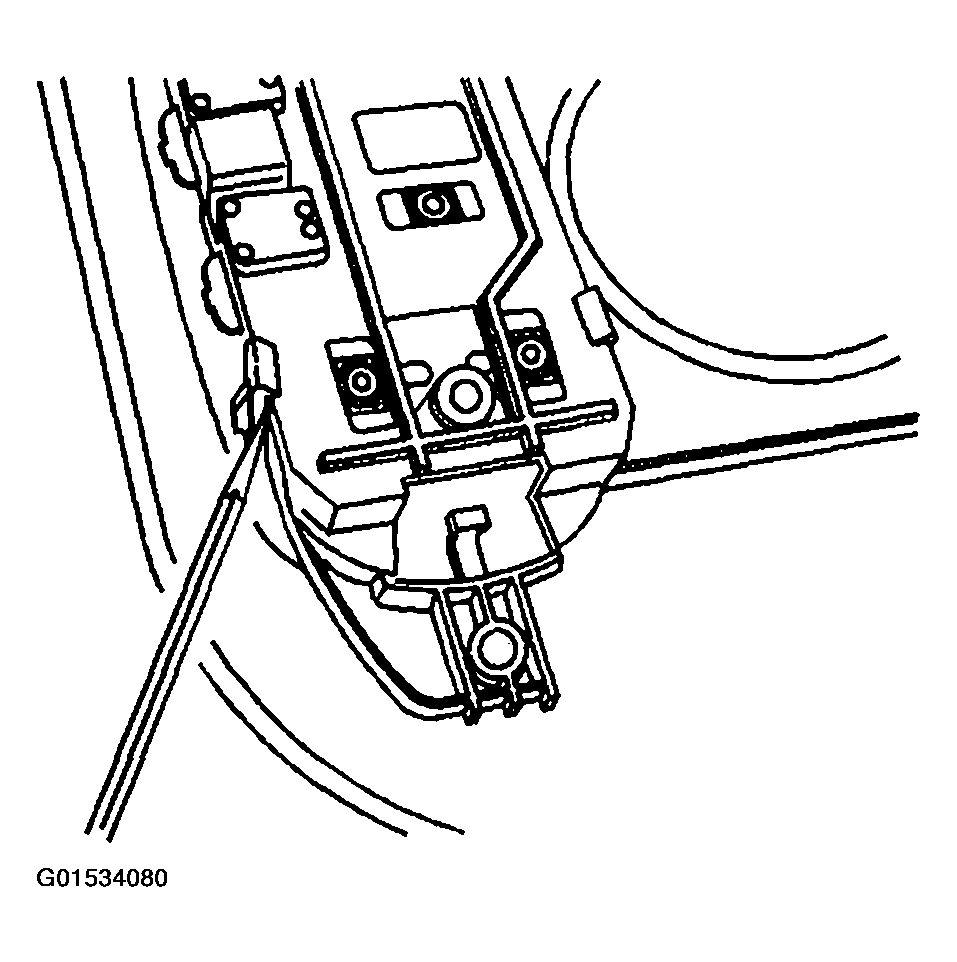

    Fig 2: Removing Dome Light Assembly From Overhead Console
    G01534080Courtesy of GENERAL MOTORS CORP.
