Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fig 1: Snapping Dome Lamp Bracket Assembly Into Overhead Console
    G01534081Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the dome lamp assembly.
  3. Install the VES overhead console. Refer to INTERIOR TRIM in Entertainment.

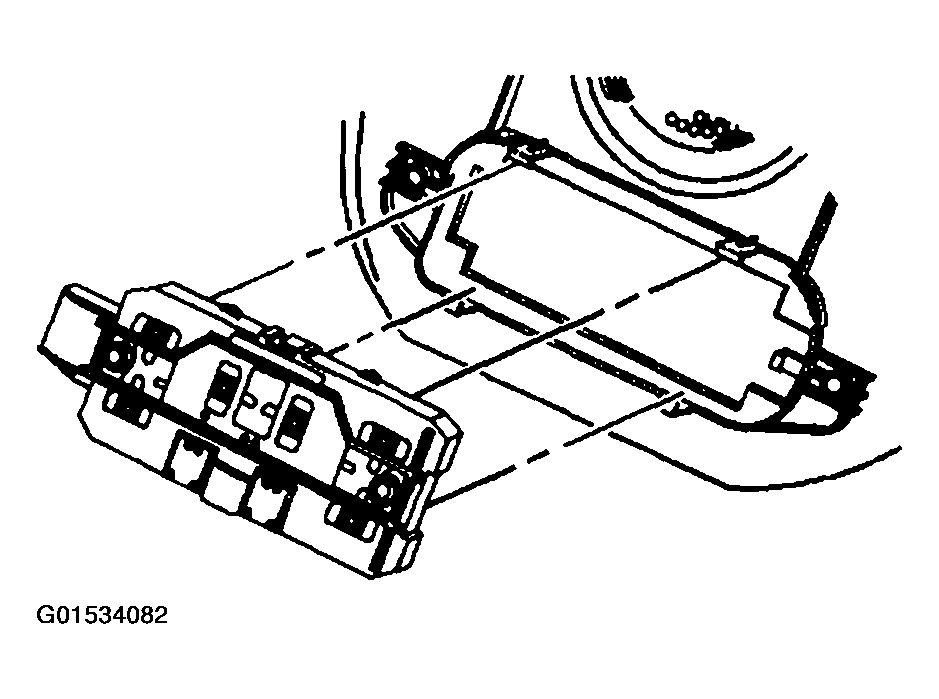

    Fig 2: Installing VES Overhead Console
    G01534082Courtesy of GENERAL MOTORS CORP.
