Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a small flat-bladed tool, remove the dome lens cover by prying the left side of the cover loose.
  2. Remove the lens cover.

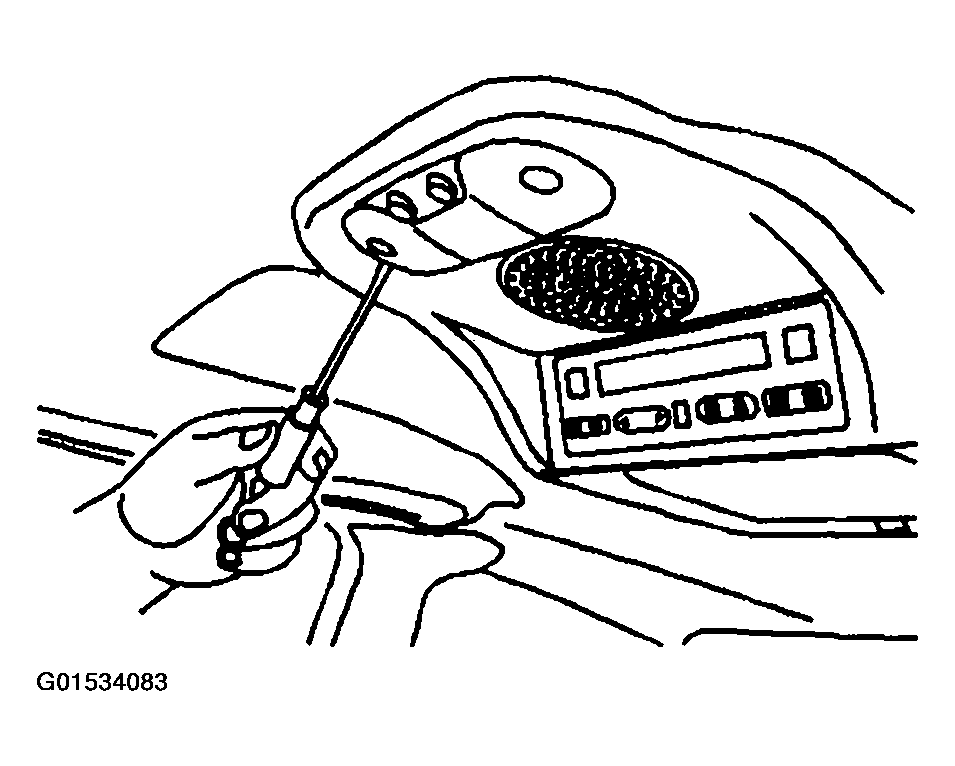

    Fig 1: Removing Dome Lens Cover
    G01534083Courtesy of GENERAL MOTORS CORP.
  3. Remove the dome light bulb.

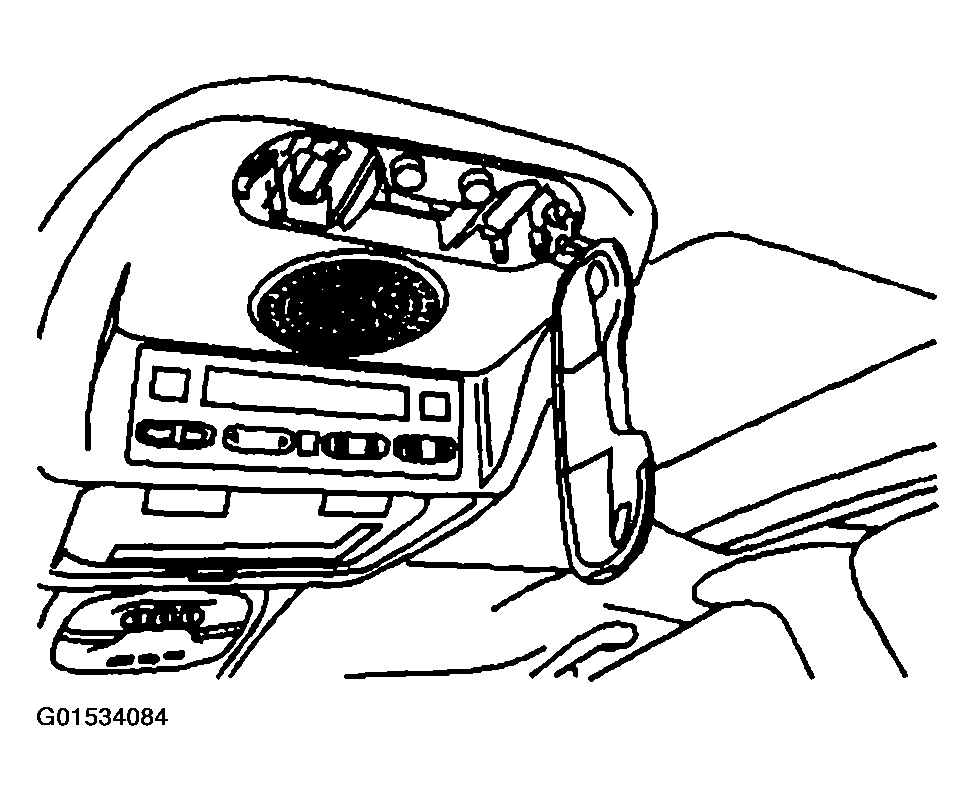

    Fig 2: Removing Dome Light Bulb
    G01534084Courtesy of GENERAL MOTORS CORP.
