Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (IP) upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the security system LED. Refer to LED INDICATOR REPLACEMENT - VEHICLE SECURITY SYSTEM in Theft Deterrent.
  3. Twist the DRL sensor counterclockwise in order to remove the sensor from the IP upper trim.
  4. Remove the DRL sensor from the wiring harness.

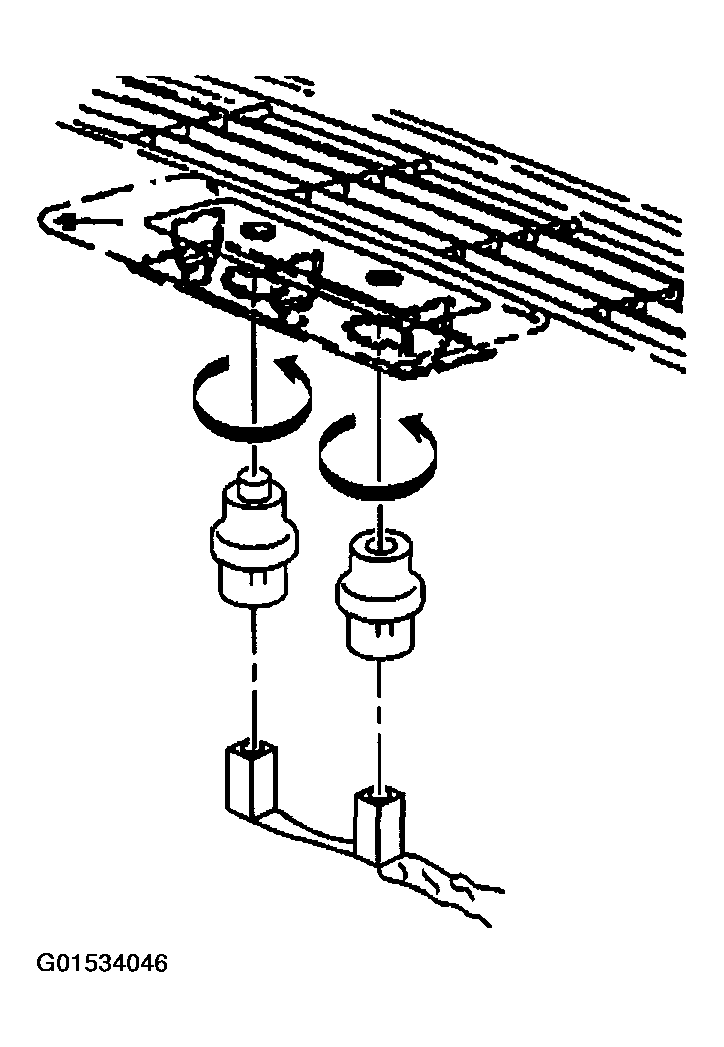

    Fig 1: Twisting DRL Sensor Counterclockwise And Removing
    G01534046Courtesy of GENERAL MOTORS CORP.
