Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the DRL sensor to the wiring harness.
  2. Position the DRL sensor in the IP upper trim and twist the sensor to secure.
  3. Install the security system LED. Refer to LED INDICATOR REPLACEMENT - VEHICLE SECURITY SYSTEM in Theft Deterrent.
  4. Install the IP upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.

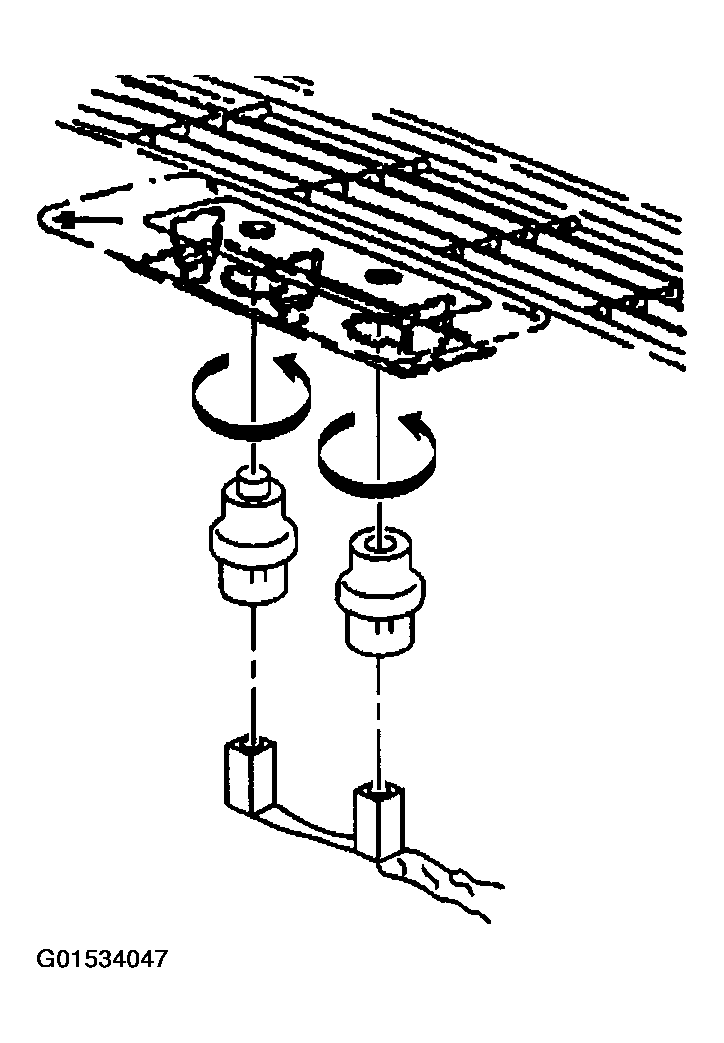

    Fig 1: Installing DRL Sensor By Twisting Clockwise
    G01534047Courtesy of GENERAL MOTORS CORP.
