Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  2. Remove the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  3. Remove the right instrument panel courtesy lamp from the instrument panel.

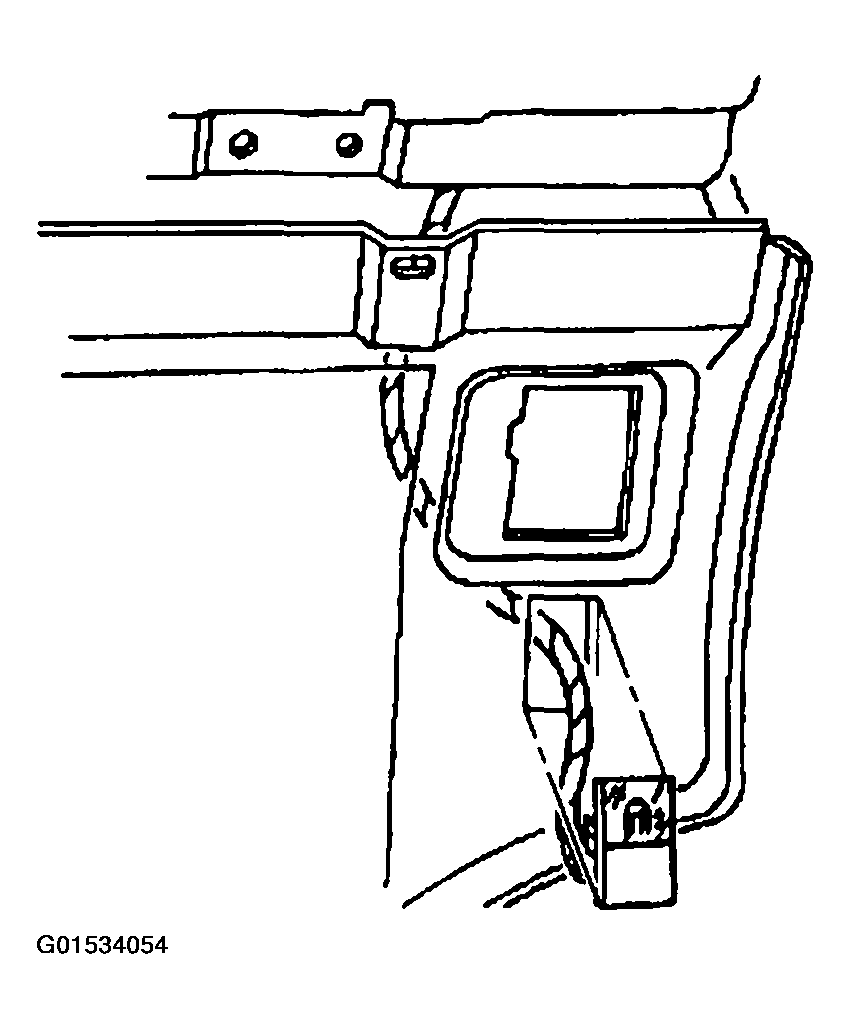

    Fig 1: Removing Right Instrument Panel Courtesy Lamp From Instrument Panel
    G01534054Courtesy of GENERAL MOTORS CORP.
  4. Remove the left instrument panel courtesy lamp from the instrument panel.

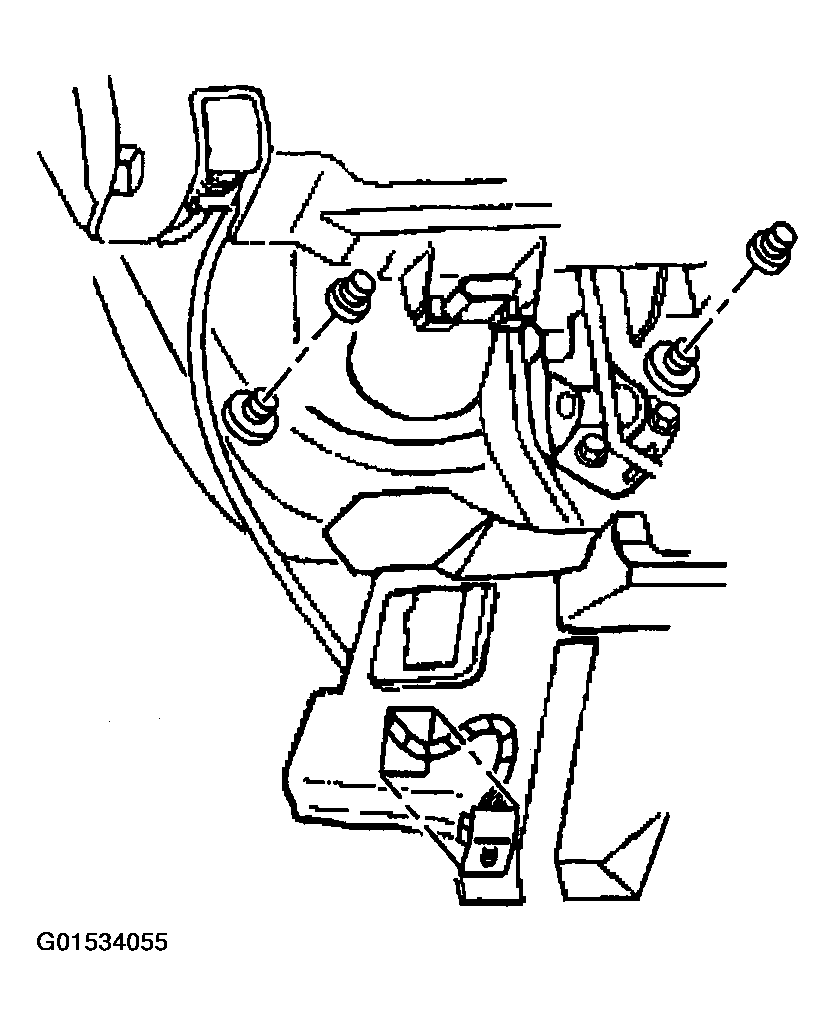

    Fig 2: Removing Left Instrument Panel Courtesy Lamp From Instrument Panel
    G01534055Courtesy of GENERAL MOTORS CORP.
