Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right instrument panel courtesy lamp to the instrument panel insulator.
    Fig 1: Installing Right Instrument Panel Courtesy Lamp From Instrument Panel
    G01534056Courtesy of GENERAL MOTORS CORP.
  2. Install the left instrument panel courtesy lamp to the instrument panel insulator.
  3. Install the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
  4. Install the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.

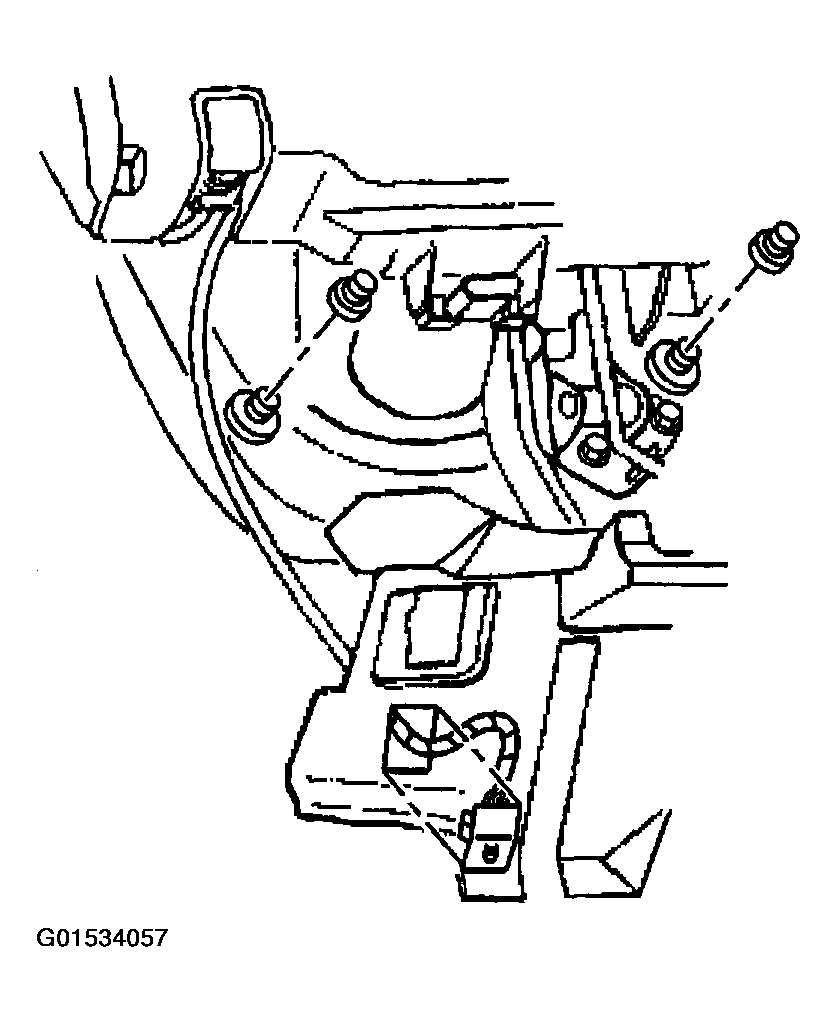

    Fig 2: Installing Left Instrument Panel Courtesy Lamp From Instrument Panel
    G01534057Courtesy of GENERAL MOTORS CORP.
