Turn Signal Lamps Or Indicators Always On Or Flashing (Domestic)

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

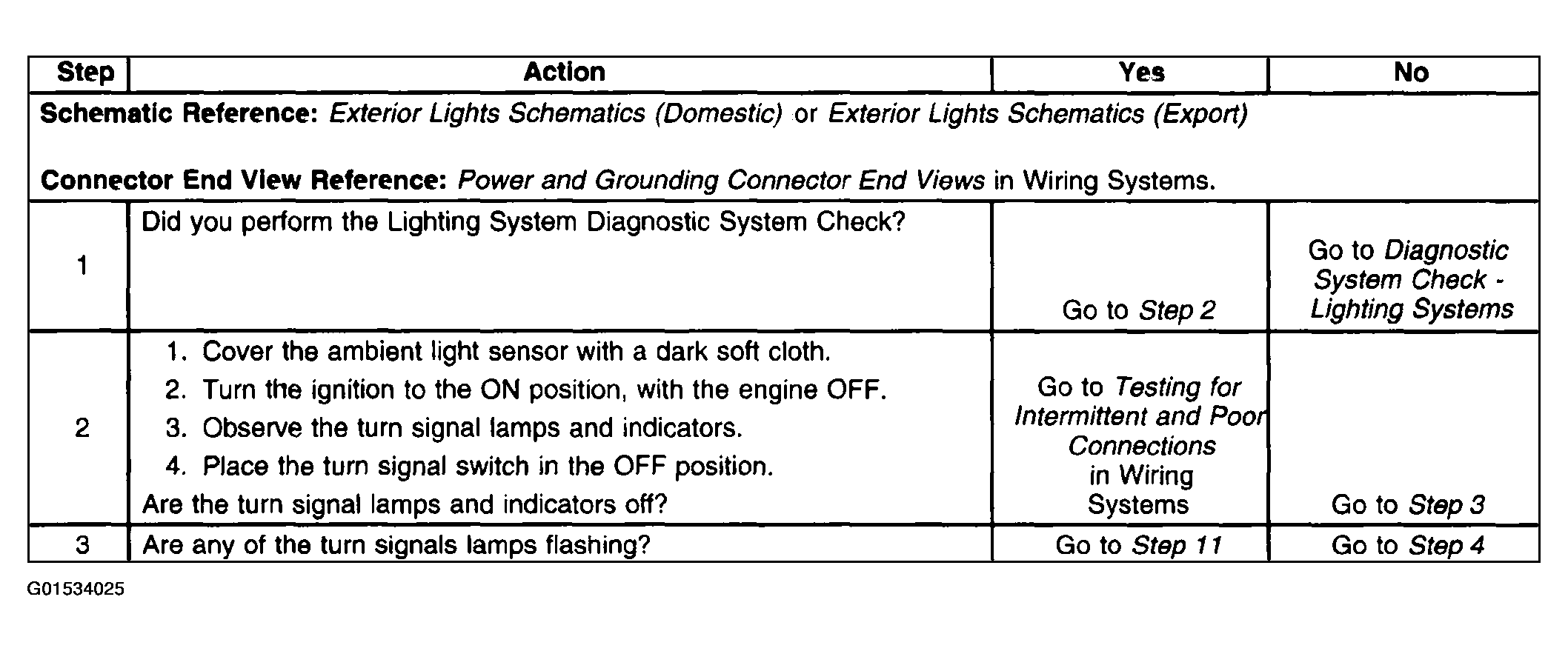

Fig 1: Diagnostic System Check Chart - Turn Signal Lamps Or Indicators Always On Or Flashing (Domestic) (1 Of 2)
G01534025Courtesy of GENERAL MOTORS CORP.
Fig 2: Diagnostic System Check Chart - Turn Signal Lamps Or Indicators Always On Or Flashing (Domestic) (2 Of 2)
G01534026Courtesy of GENERAL MOTORS CORP.
