Turn Signal Lamps And/Or Indicators Inoperative (Export)

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

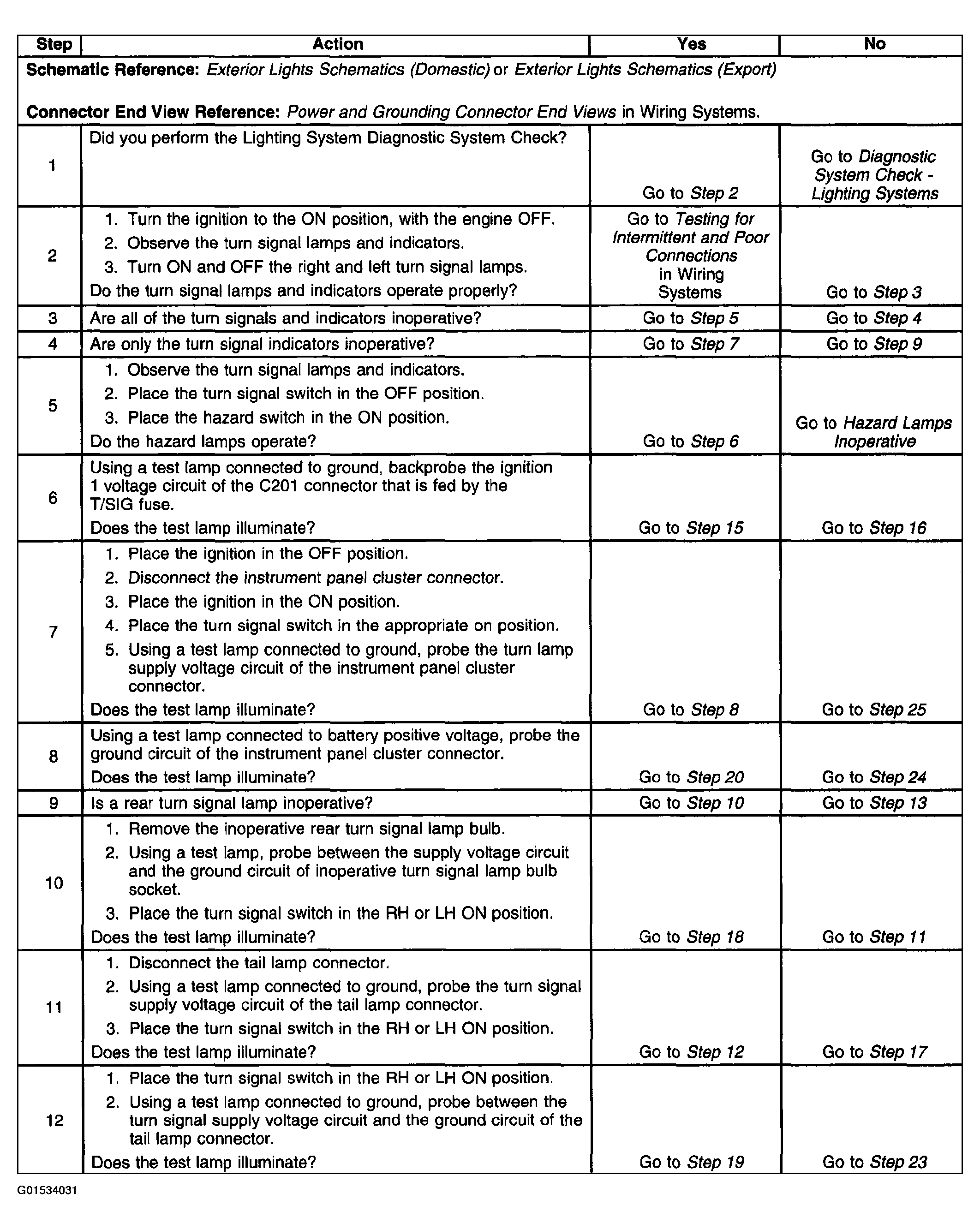

Fig 1: Diagnostic System Check Chart - Turn Signal Lamps And/Or Indicators Inoperative (Export) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

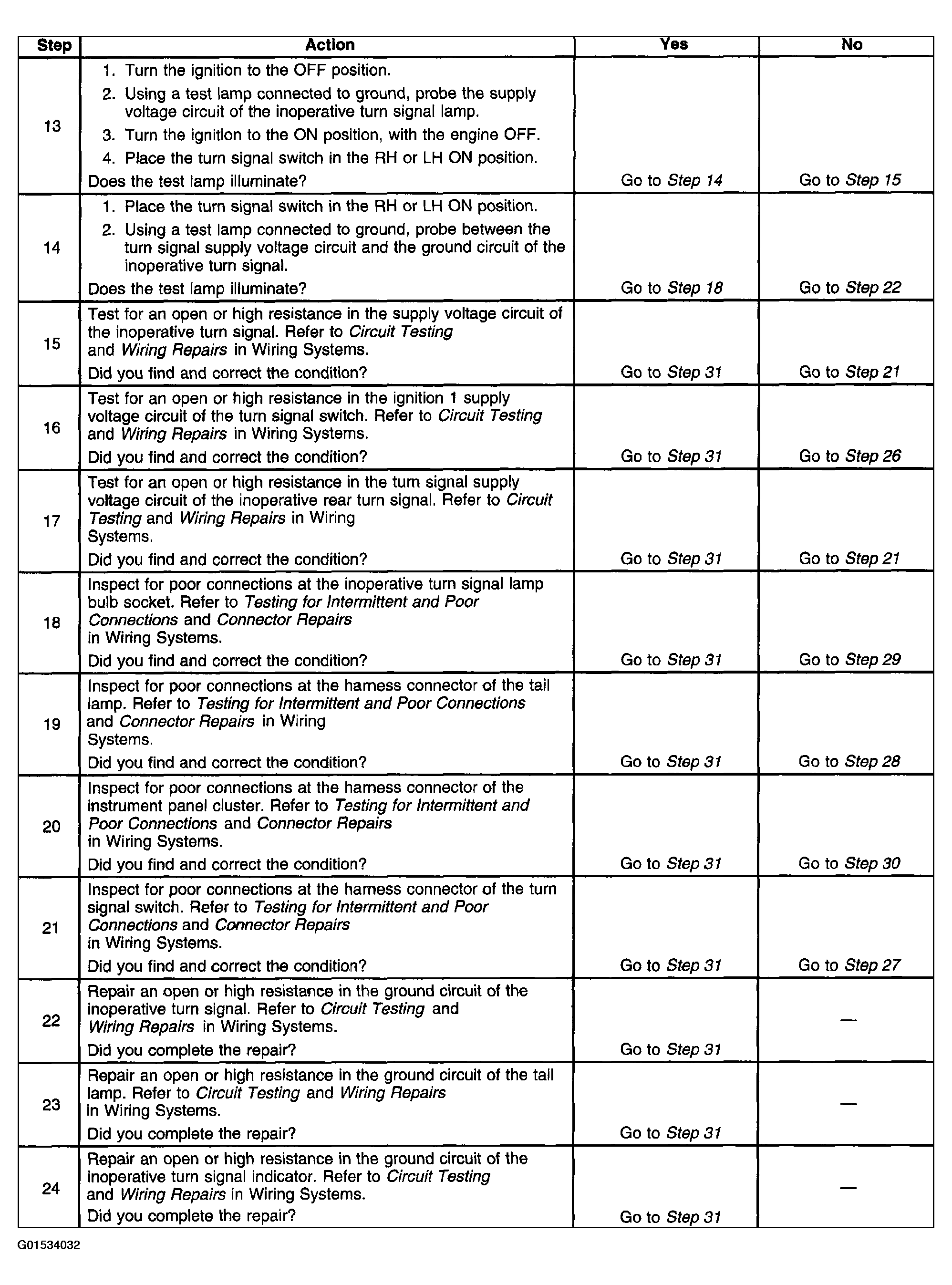

Fig 2: Diagnostic System Check Chart - Turn Signal Lamps And/Or Indicators Inoperative (Export) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

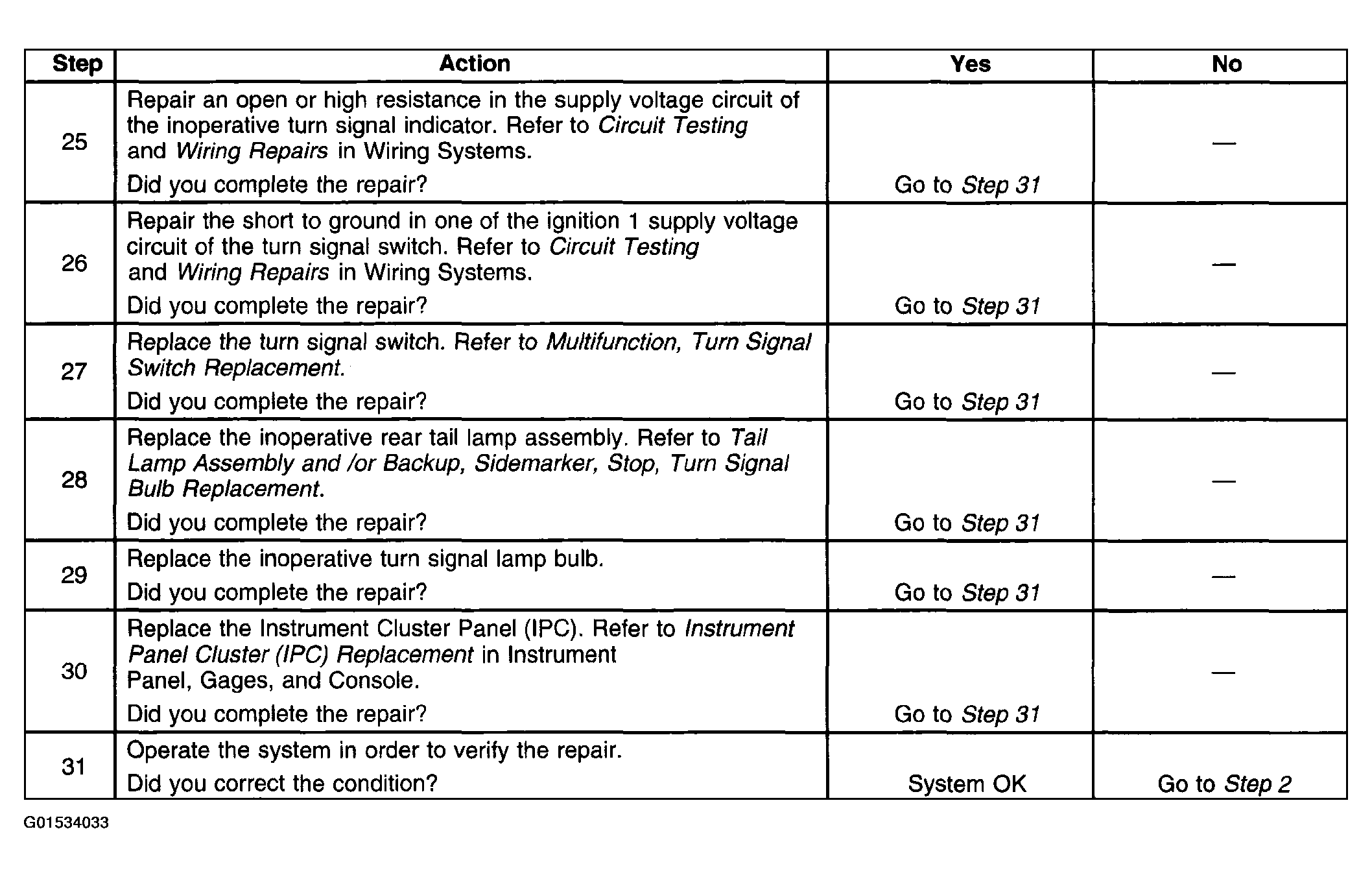

Fig 3: Diagnostic System Check Chart - Turn Signal Lamps And/Or Indicators Inoperative (Export) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
