Instrument Panel (I/P) Compartment Lamp Inoperative

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

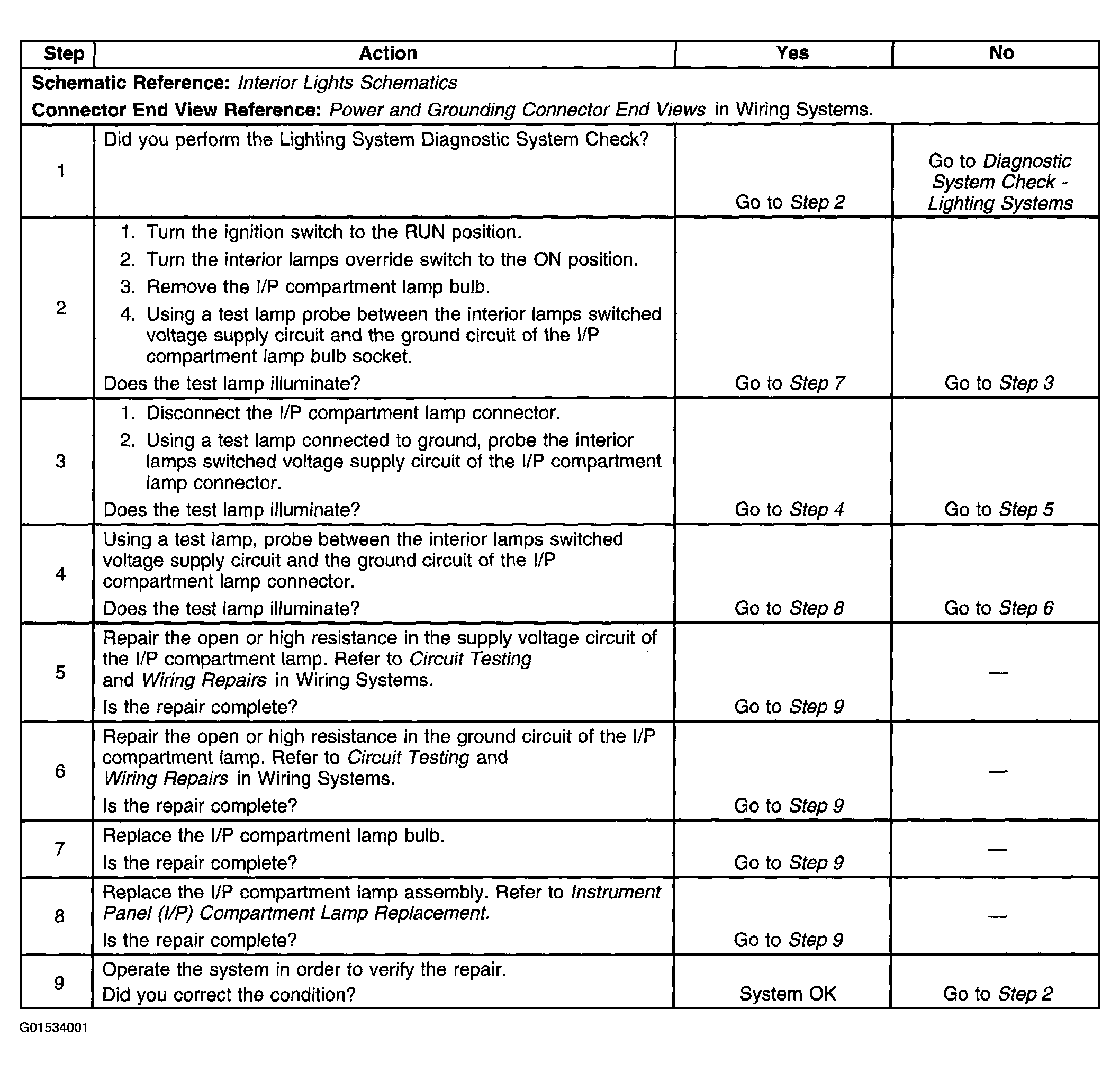

Fig 1: Diagnostic System Check Chart - Instrument Panel (I/P) Compartment Lamp Inoperative
G01534001Courtesy of GENERAL MOTORS CORP.
