DTC U1001 To U1254: Lost Communication with U1XXX Module: Notes
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

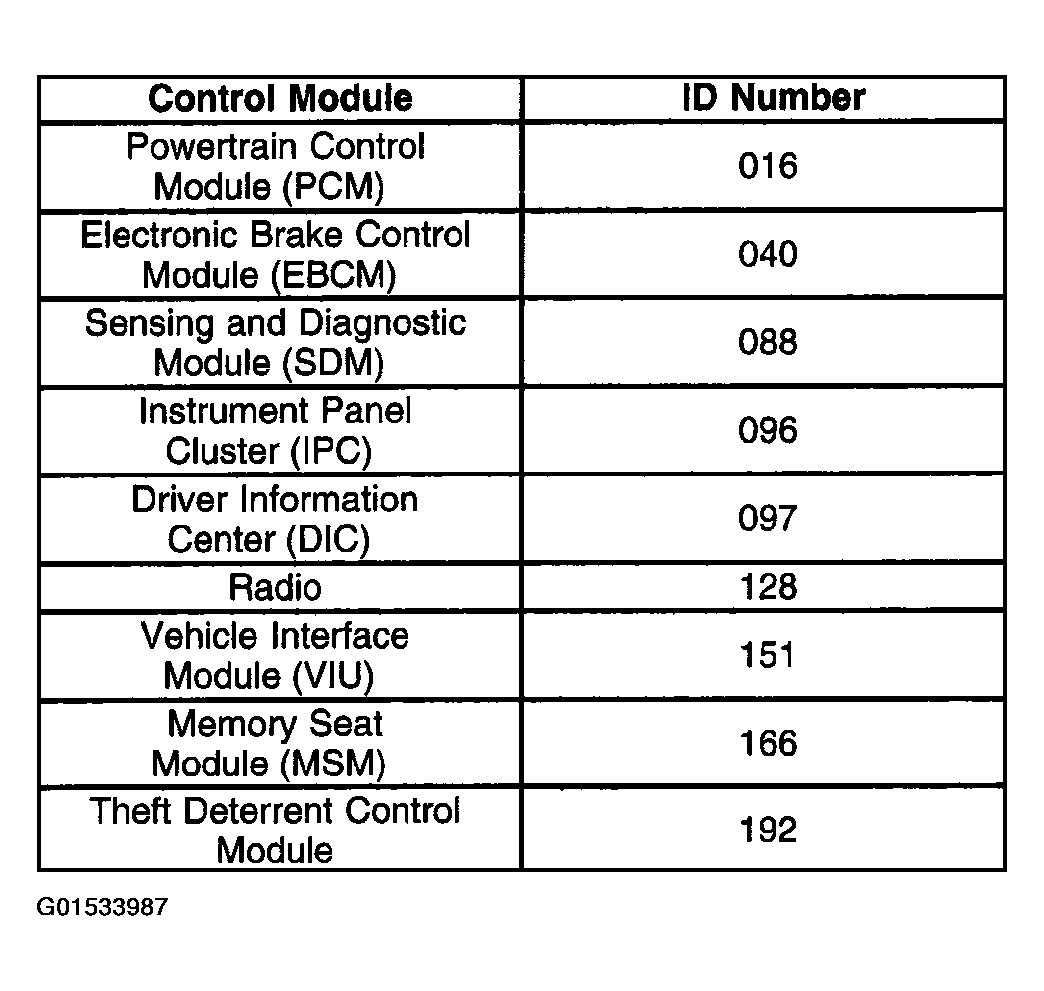

The Control Module ID Number list provides a method for determining which module is not communicating. A module with an internal class 2 serial data circuit malfunction or which loses power during the current ignition cycle would have a Lost Communication DTC set by other modules. Use the Control Module ID Number list in order to determine which module is not communicating and the Lost Communications with XXX diagnostic table in order to diagnose the malfunction.
