Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open and support the hood.
  2. Remove the cover from the underhood electrical center.
  3. Remove the bolt retaining the underhood electrical center to the upper tie bar.

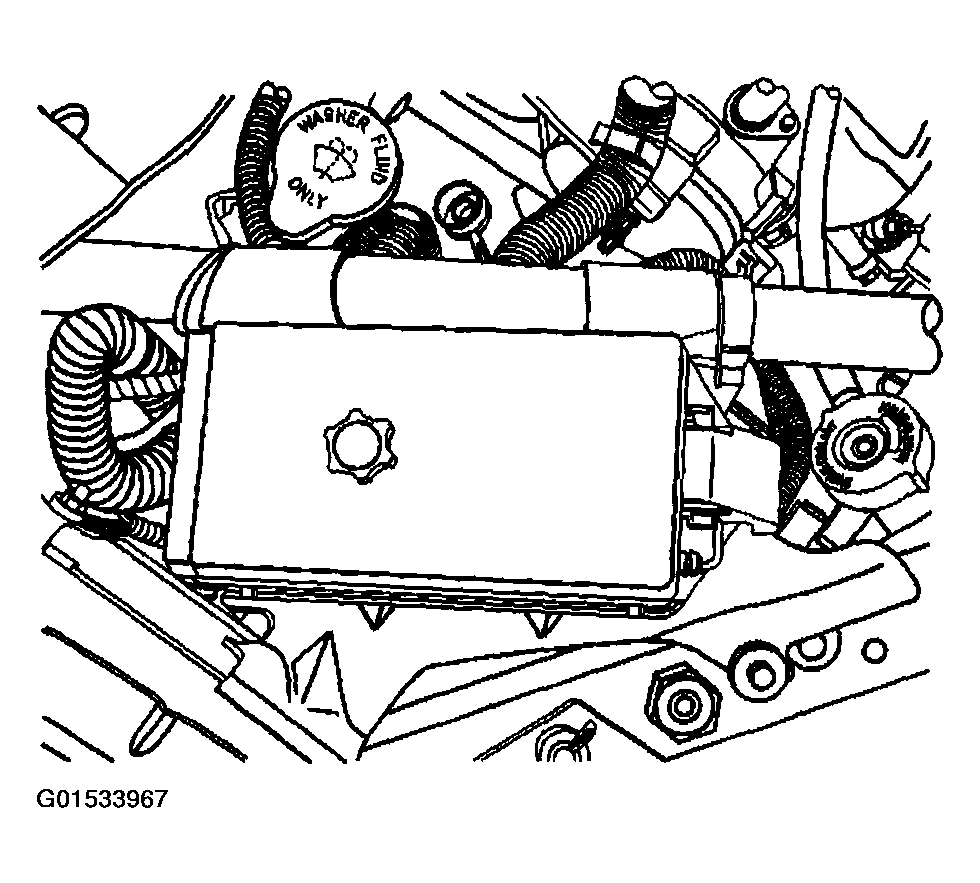

    Fig 1: Identifying Underhood Electrical Center Replacement Procedure
    G01533967Courtesy of GENERAL MOTORS CORP.
  4. Rotate and remove the electrical center from the right sheet metal diagonal brace.
  5. Remove the right sheet metal diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL - RIGHT  in Body Front End.
  6. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Battery.

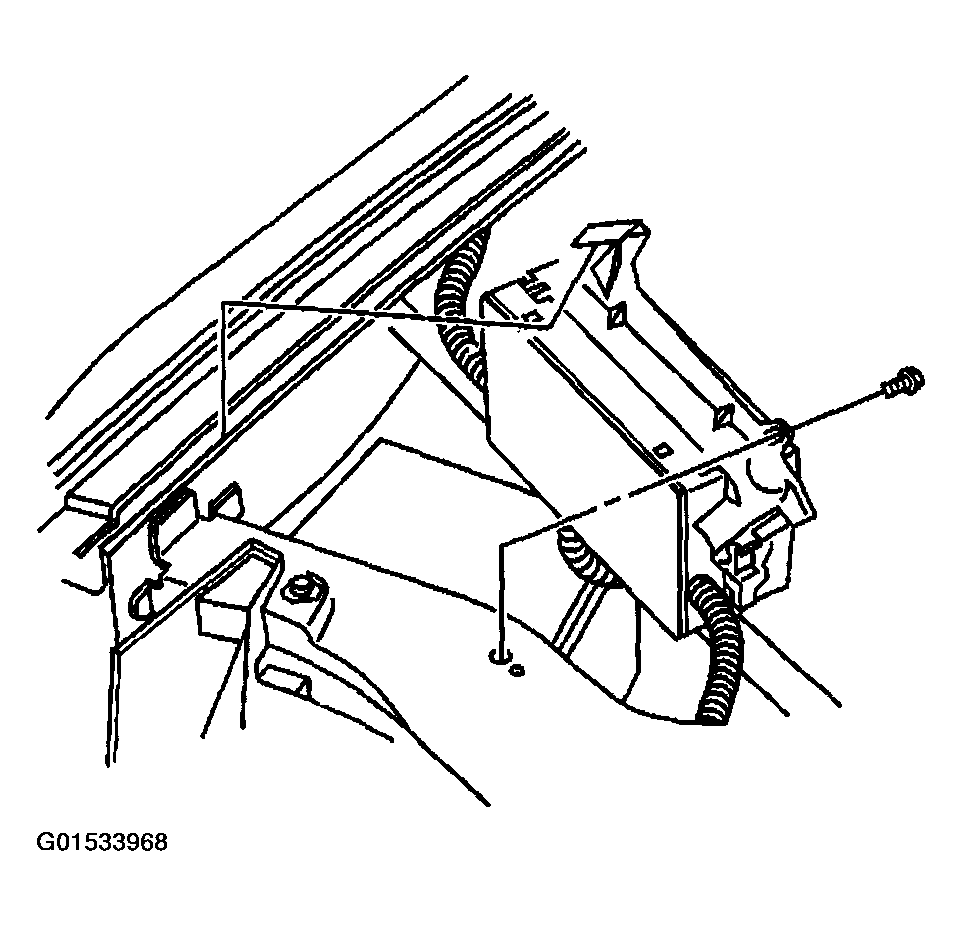

    Fig 2: Identifying Underhood Junction Block Replacement Procedure
    G01533968Courtesy of GENERAL MOTORS CORP.
  7. Remove the nut (1) retaining the positive battery cable to the underhood electrical center.
  8. Remove the positive battery cable lead (2) from the stud.

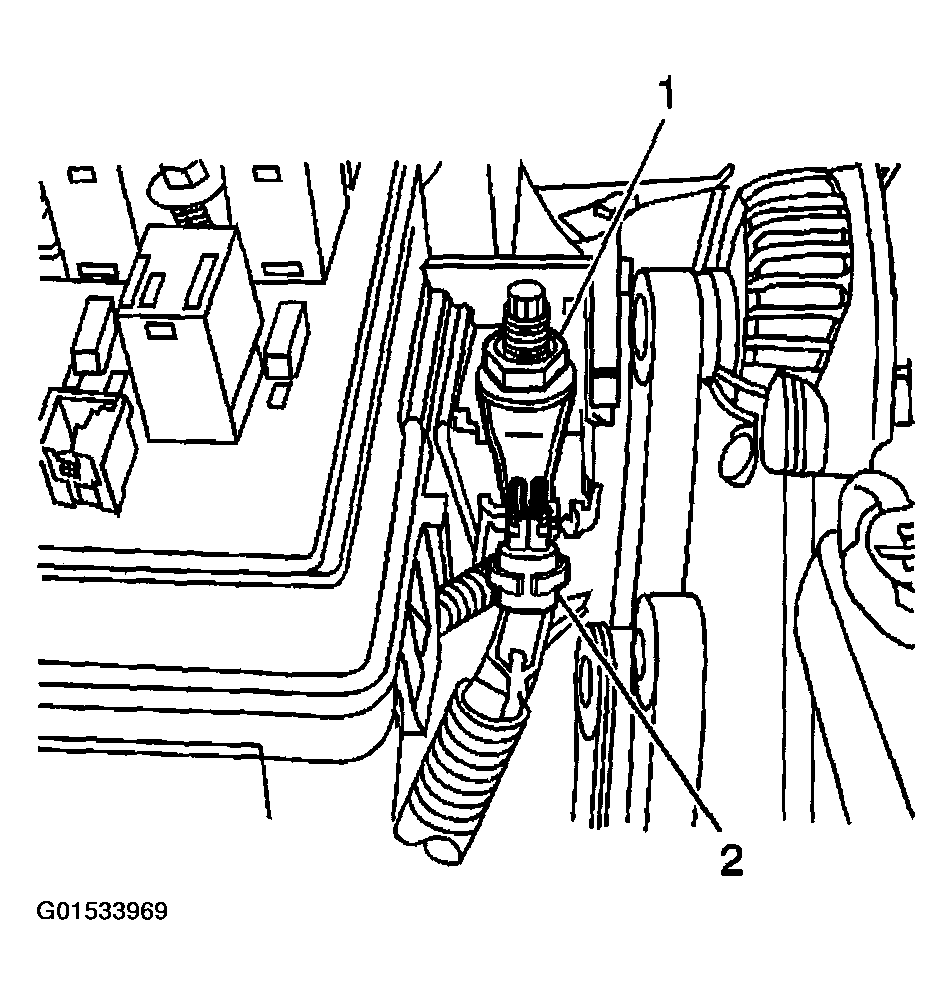

    Fig 3: Removing Positive Battery Cable Lead From Stud
    G01533969Courtesy of GENERAL MOTORS CORP.
  9. Remove the lower cover from the underhood electrical center.
  10. Disconnect the electrical connectors from the underhood electrical center.
  11. Remove the underhood electrical center.

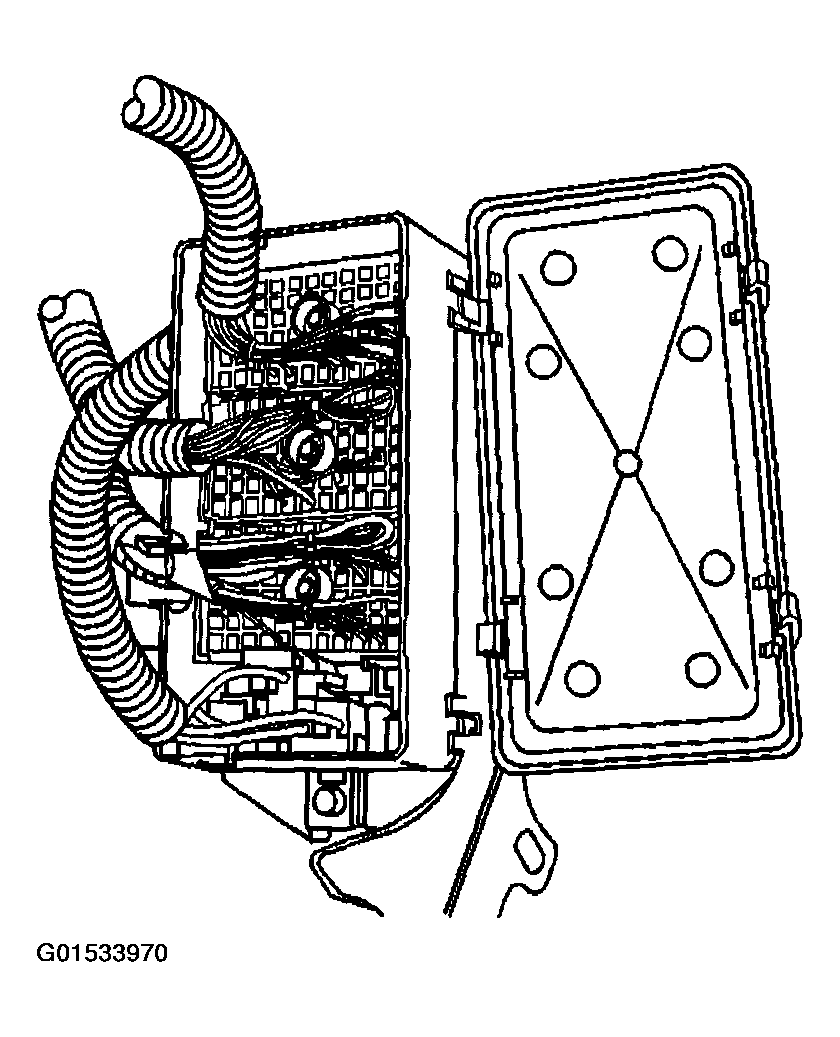

    Fig 4: Removing Underhood Electrical Center
    G01533970Courtesy of GENERAL MOTORS CORP.
