Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the underhood electrical center to the engine compartment.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the electrical connectors to the underhood electrical center.

    Tighten

    Tighten the underhood accessory wiring junction block electrical harness bolts to 7 N.m (62 lb in).

  3. Install the underhood electrical center lower cover.

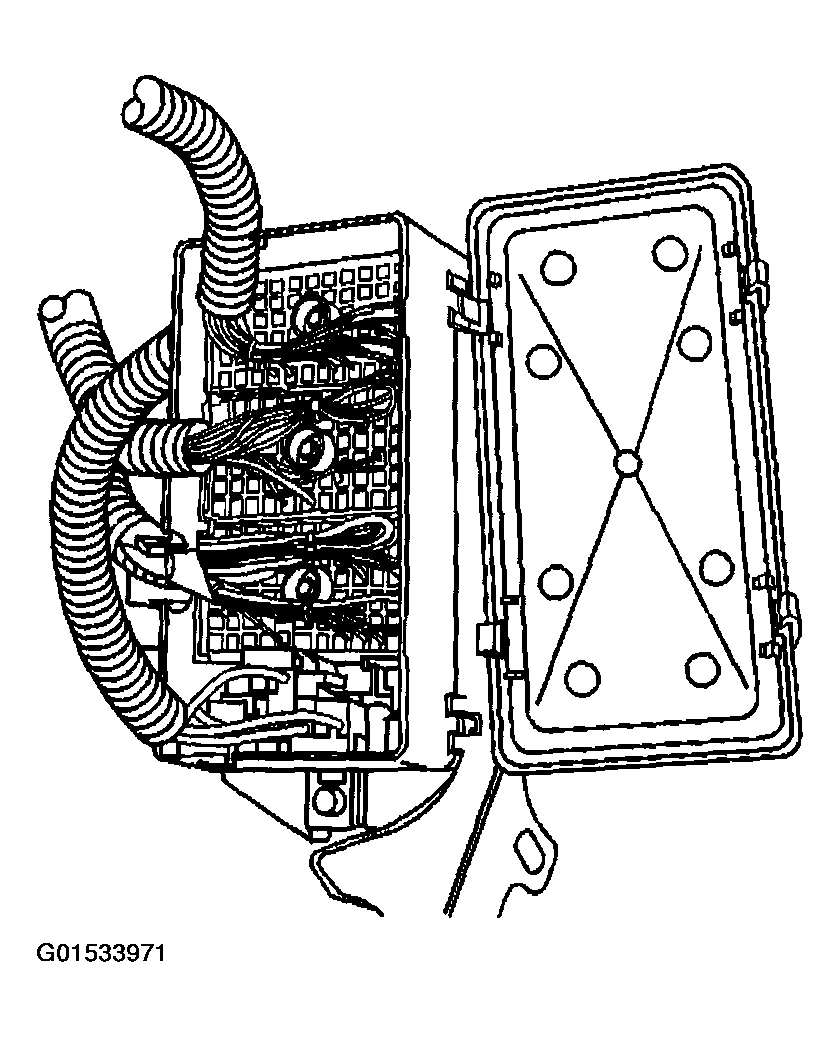

    Fig 1: Installing Underhood Electrical Center Lower Cover
    G01533971Courtesy of GENERAL MOTORS CORP.
  4. Install the positive battery cable lead (2) to the stud on the underhood electrical center.
  5. Install the positive battery cable retaining nut (1).

    Tighten

    Tighten the positive battery cable nut to 16 N.m (12 lb ft).

  6. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Battery.
  7. Install the right sheet metal diagonal brace. Refer to BRACE REPLACEMENT - FRONT FENDER UPPER DIAGONAL - RIGHT  in Body Front End.

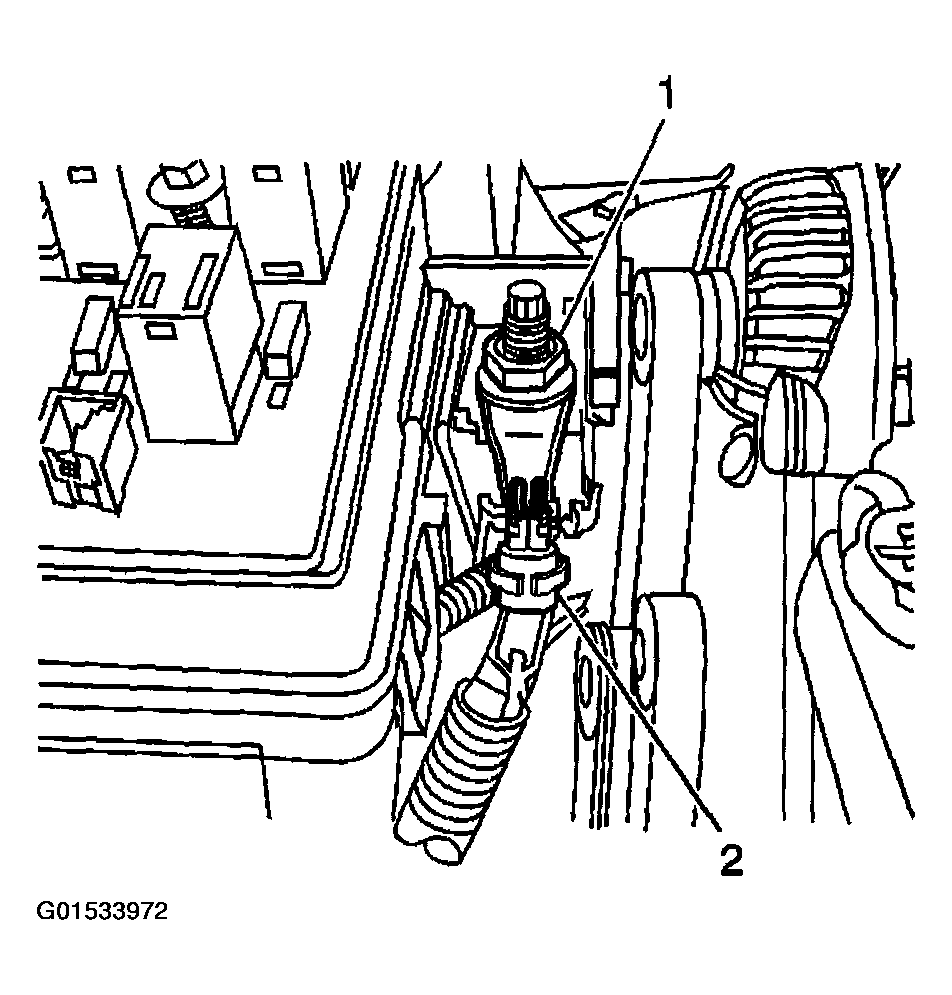

    Fig 2: Installing Positive Battery Cable Lead To Stud
    G01533972Courtesy of GENERAL MOTORS CORP.
  8. Position the underhood electrical center to the right sheet metal diagonal brace and rotate into position.

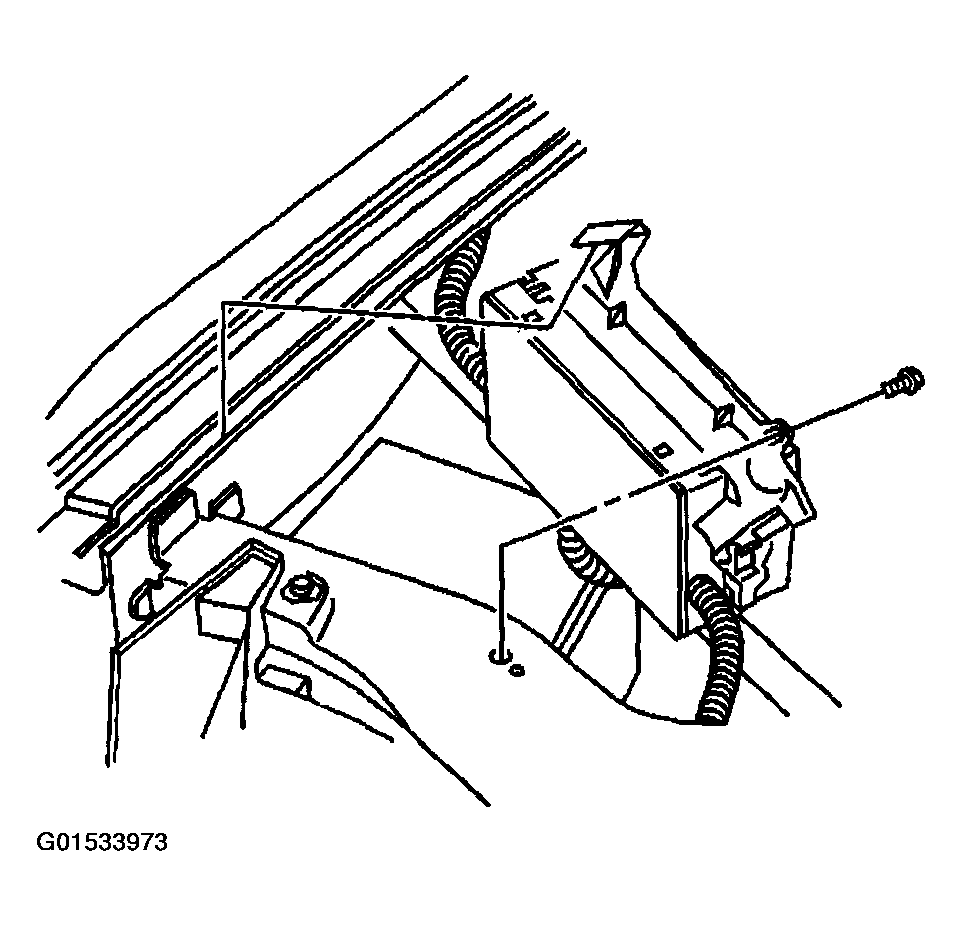

    Fig 3: Positioning Underhood Electrical Center To Right Sheet Metal Diagonal Brace
    G01533973Courtesy of GENERAL MOTORS CORP.
  9. Install the bolt to the electrical center at the upper tie bar.

    Tighten

    Tighten the underhood electrical center to upper tie bar bolt to 2 N.m (18 lb in).

  10. Install the underhood electrical center cover.
  11. Close the hood.

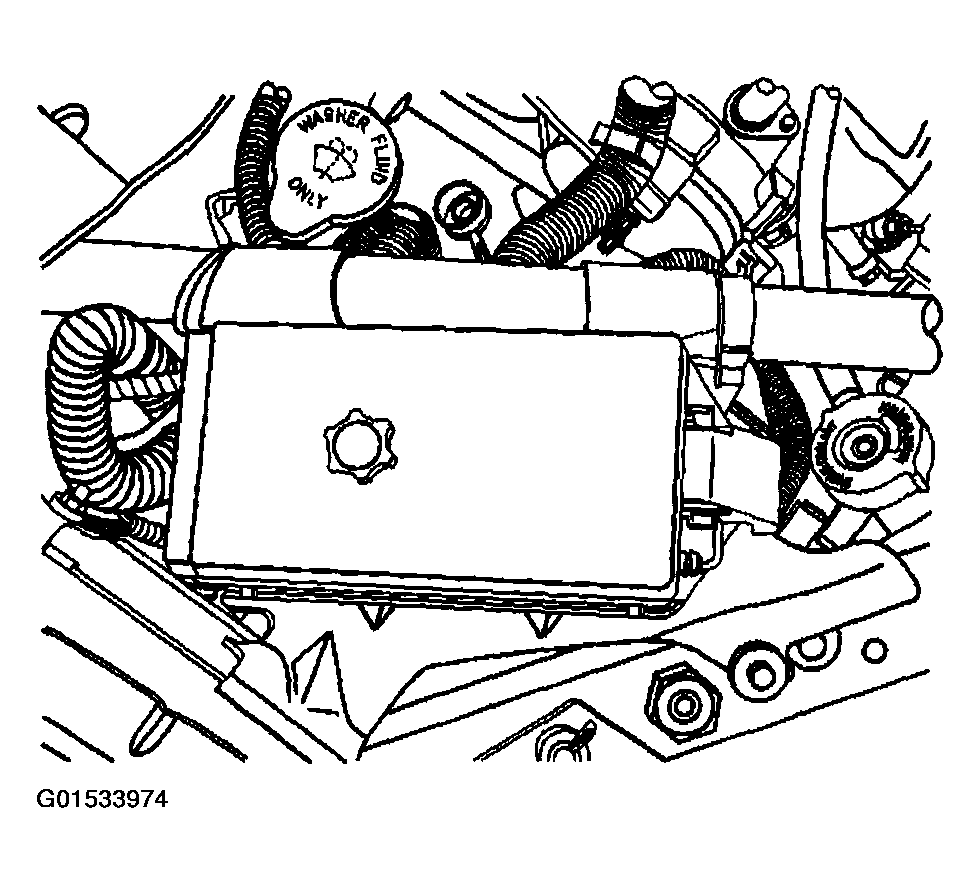

    Fig 4: Installing Bolt To Electrical Center At Upper Tie Bar
    G01533974Courtesy of GENERAL MOTORS CORP.
