Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the relay (2) in the same position as removed.
  2. Install the electrical center cover.

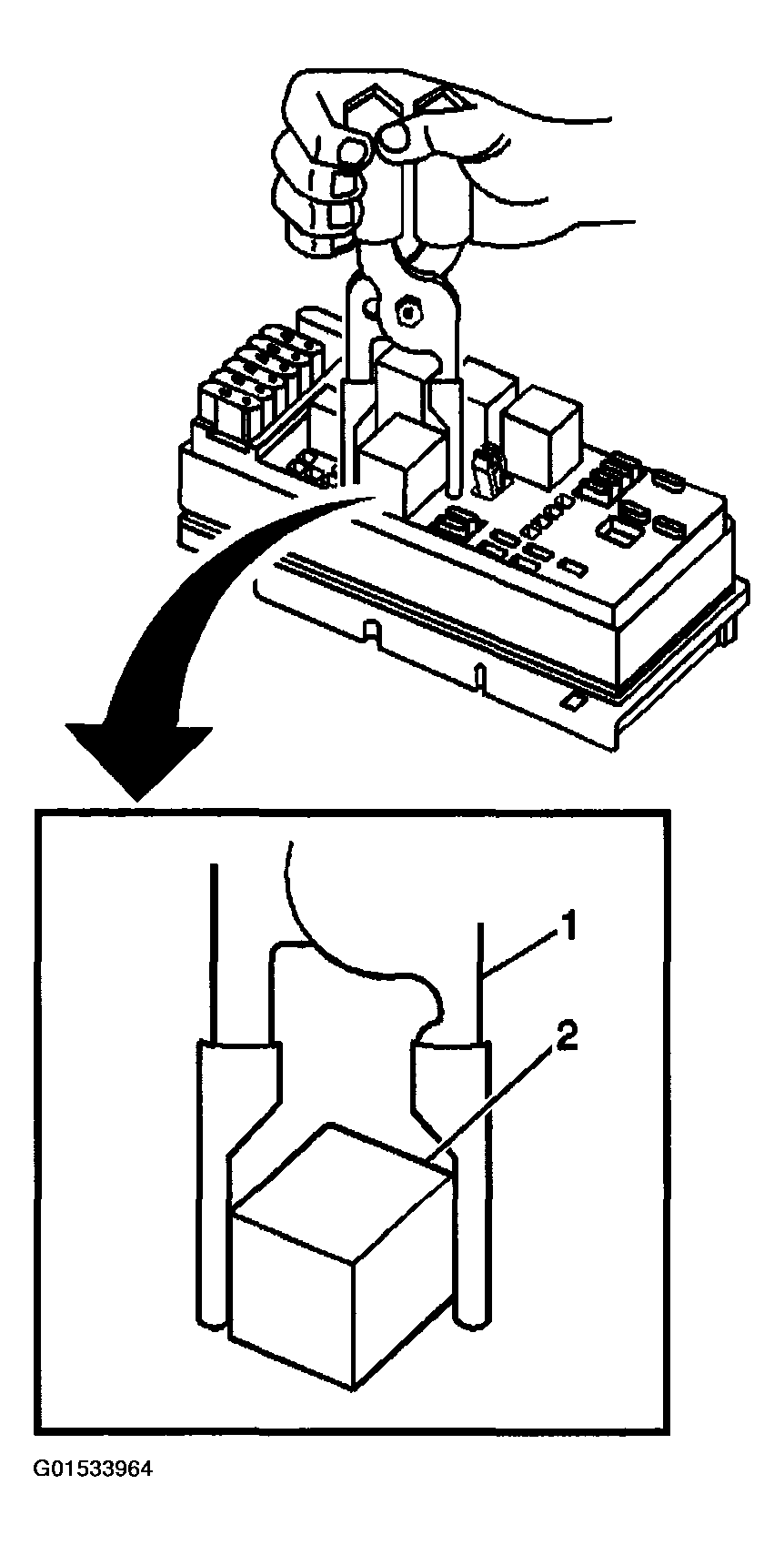

    Fig 1: Identifying Installing Relay With Tool
    G01533964Courtesy of GENERAL MOTORS CORP.
