Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer toBATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Battery.
  2. Remove the fuse block I/P end cover.
  3. Release the front retainer on the fuse block.

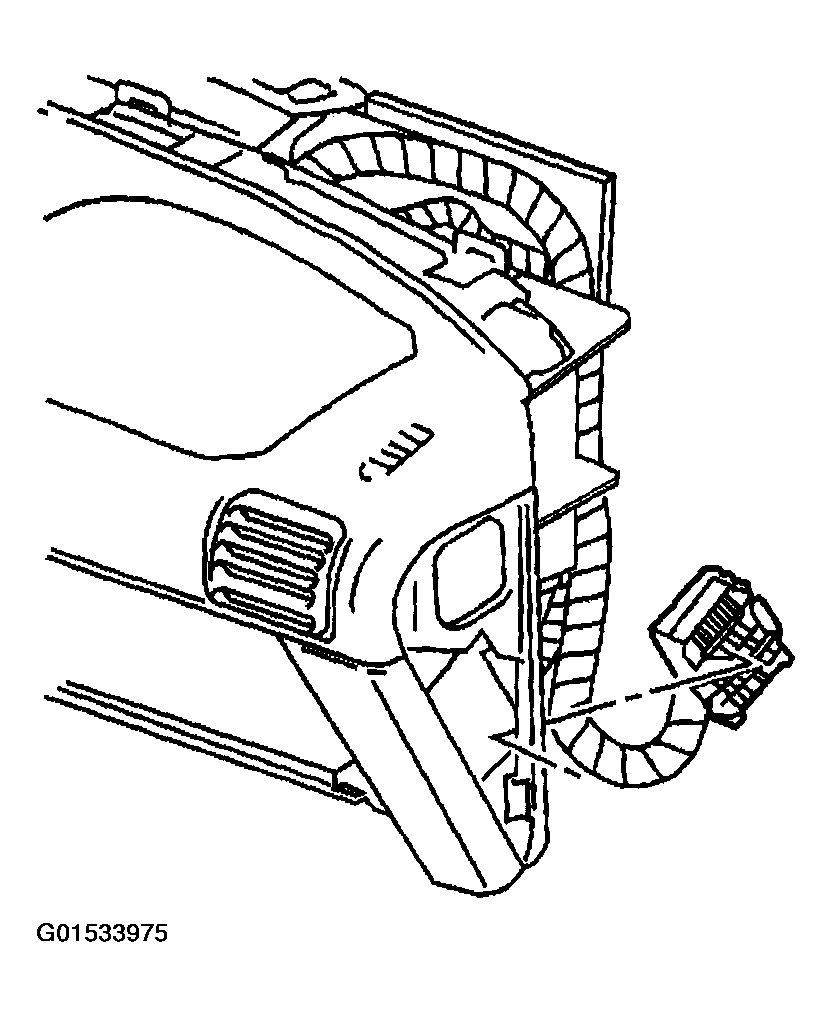

    Fig 1: Identifying Instrument Panel Electrical Center Replacement Procedure
    G01533975Courtesy of GENERAL MOTORS CORP.
  4. Push the fuse block into the instrument panel.
  5. Remove the fuse block from the instrument panel.
  6. Remove the electrical connectors from the fuse block. Refer to CONNECTOR REPAIRS   .

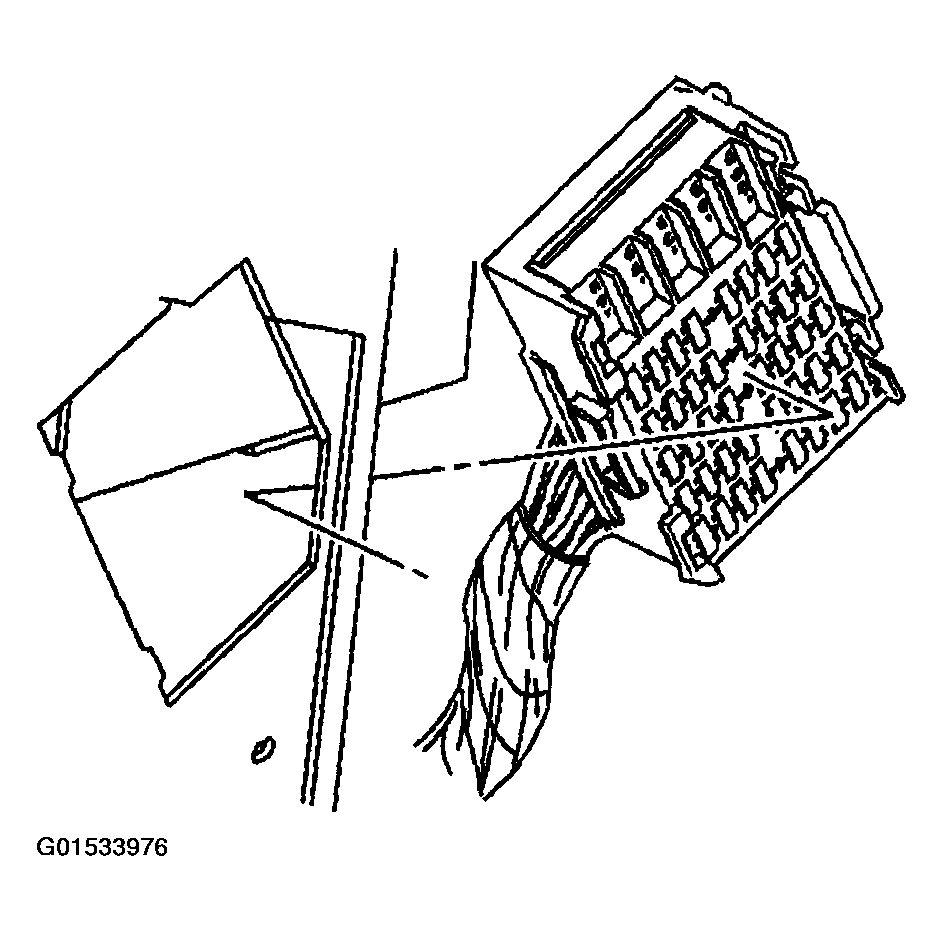

    Fig 2: Identifying Instrument Panel Junction Block Replacement Procedure
    G01533976Courtesy of GENERAL MOTORS CORP.
