Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connectors into the fuse block. Refer to CONNECTOR REPAIRS   .
  2. Align the rear side of the fuse block with the instrument panel.
  3. Push the fuse block into the opening until secure.
  4. Install the I/P end cover.
  5. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  in Battery.

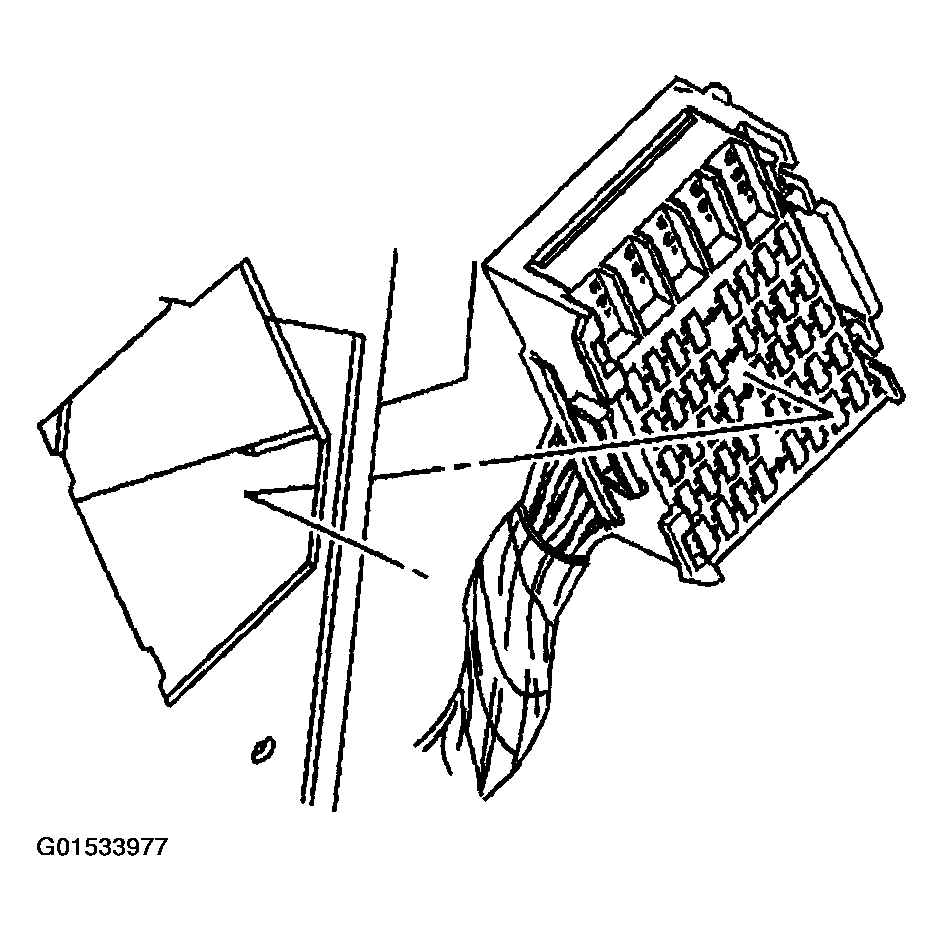

    Fig 1: Installing Electrical Connectors Into Fuse Block
    G01533977Courtesy of GENERAL MOTORS CORP.
