Utility/Van Zoning

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

All grounds, in-line connectors, pass-through grommets, and splice have identifying numbers that correspond to where they are located in the vehicle. The following table explains the numbering system.

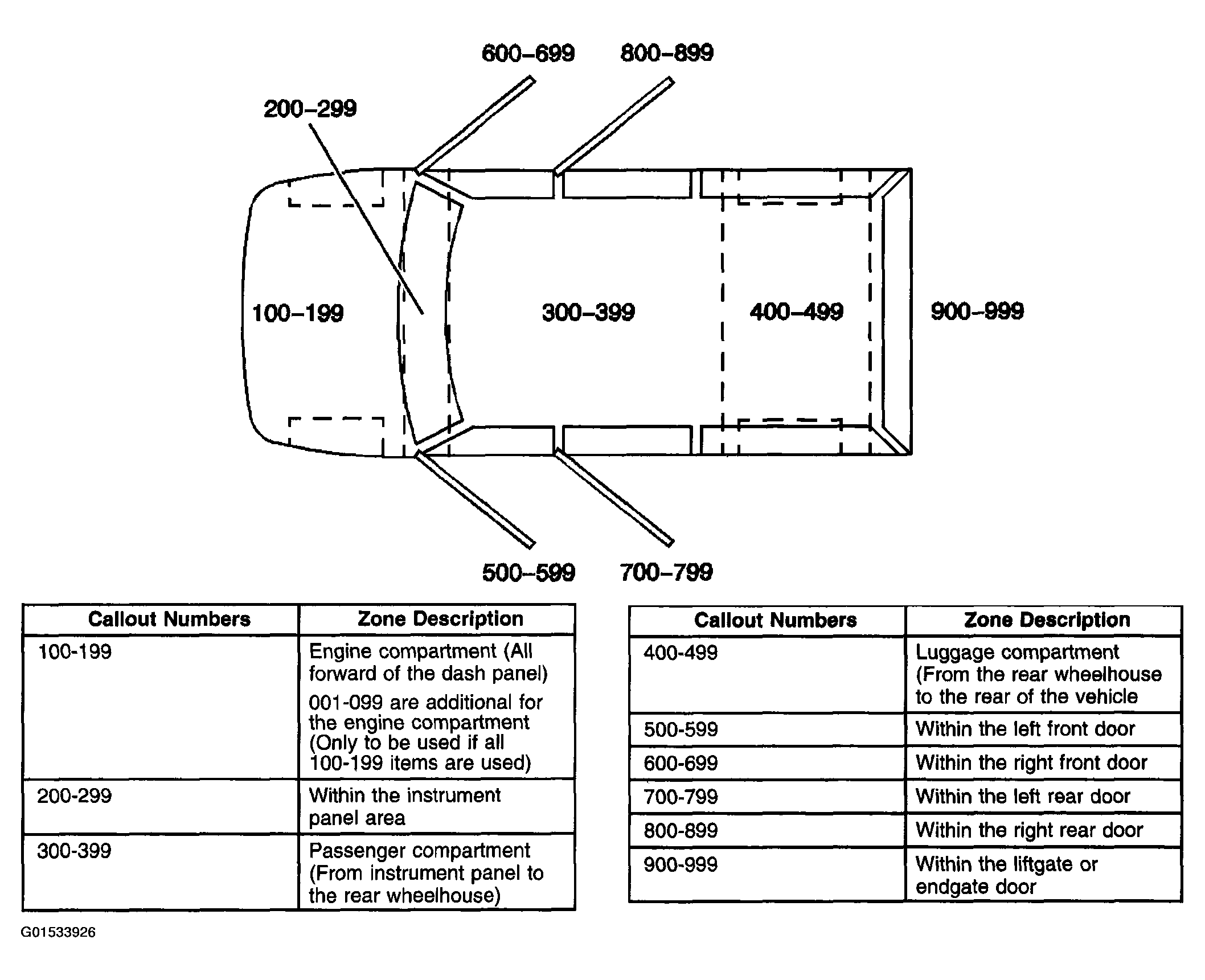

Fig 1: Identifying Utility/Van Zoning - Diagnostic Information And Procedures

G01533926

Courtesy of GENERAL MOTORS CORP.

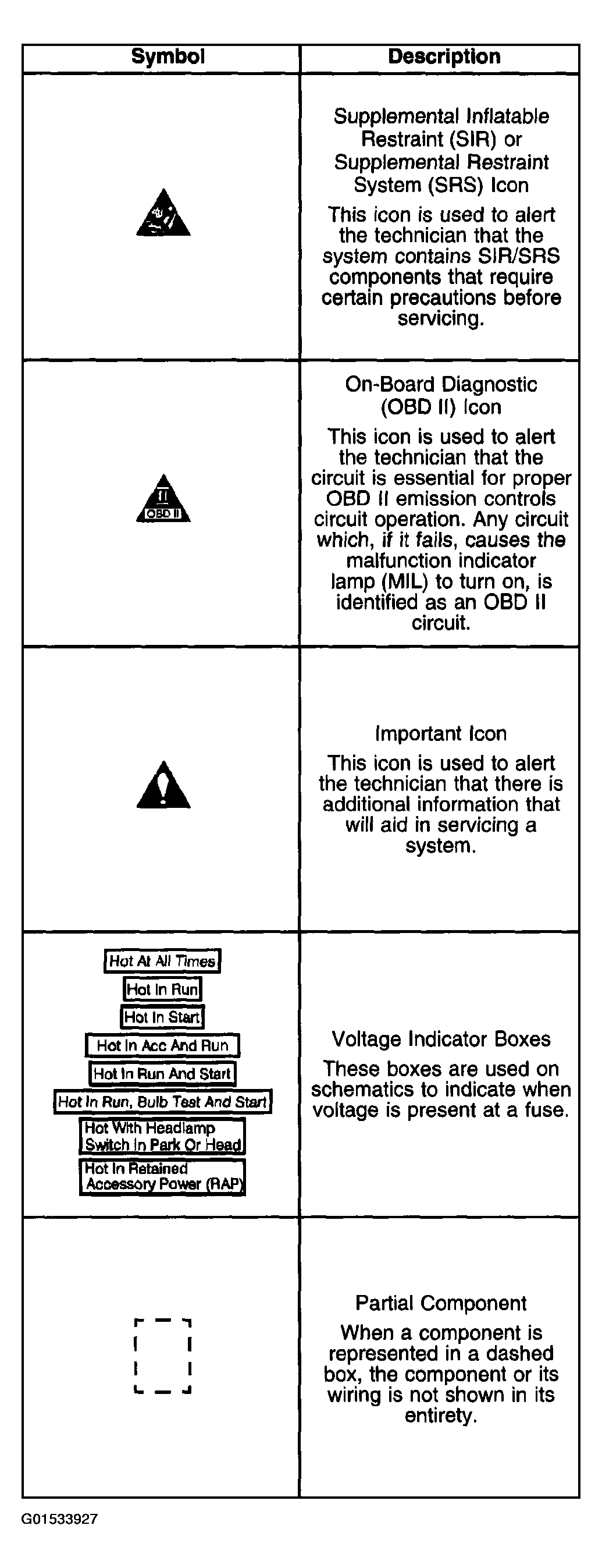

Fig 2: Identifying Electrical Symbols (1 Of 8)

G01533927

Courtesy of GENERAL MOTORS CORP.

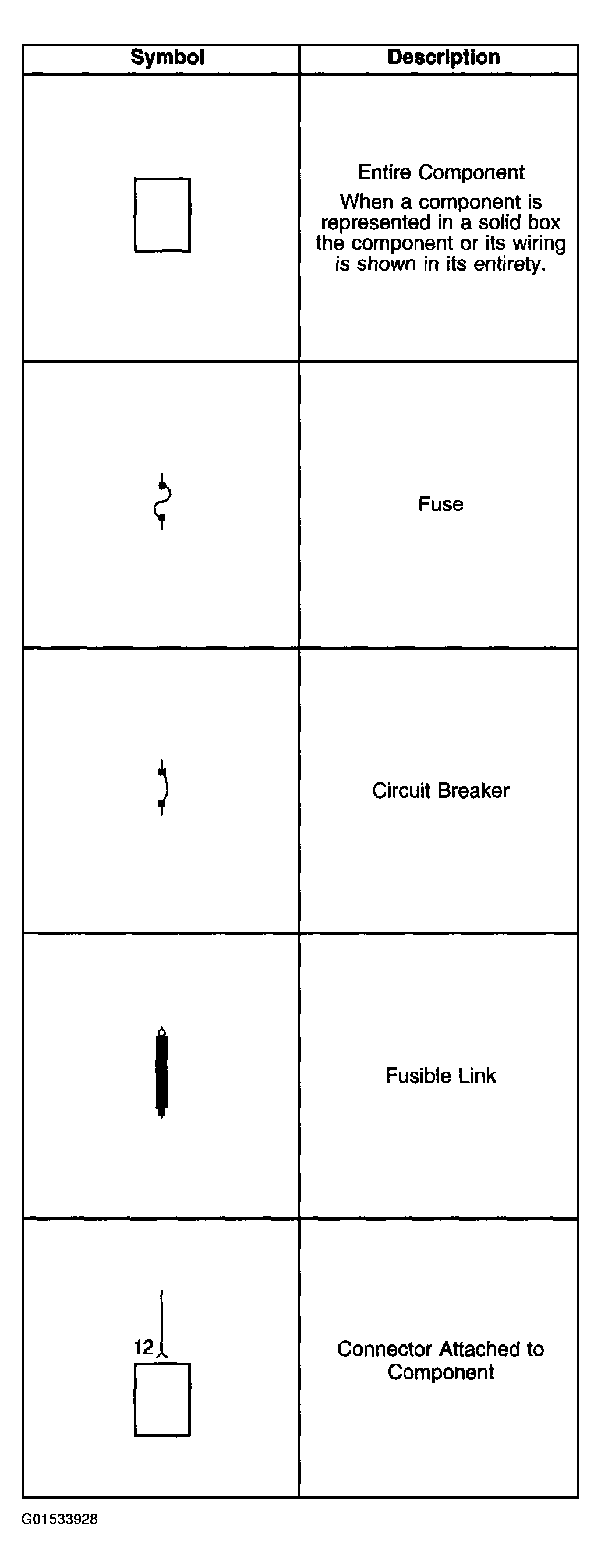

Fig 3: Identifying Electrical Symbols (2 Of 8)

G01533928

Courtesy of GENERAL MOTORS CORP.

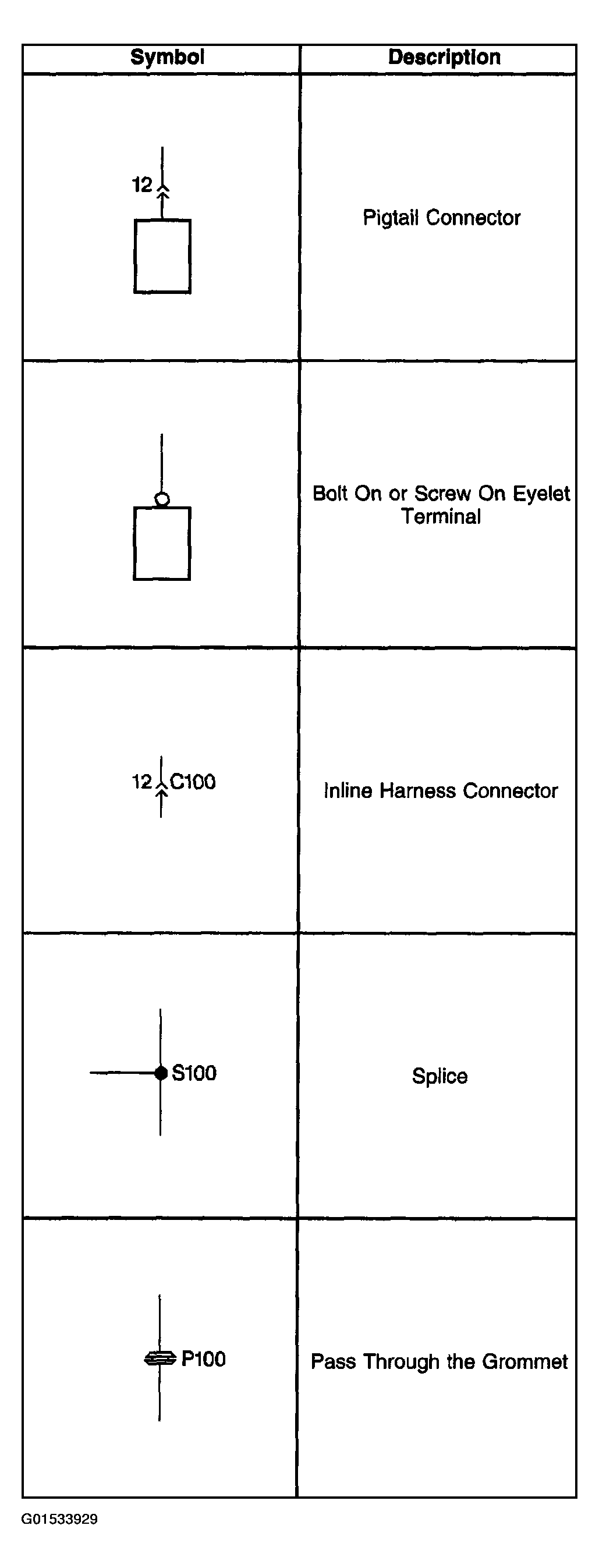

Fig 4: Identifying Electrical Symbols (3 Of 8)

G01533929

Courtesy of GENERAL MOTORS CORP.

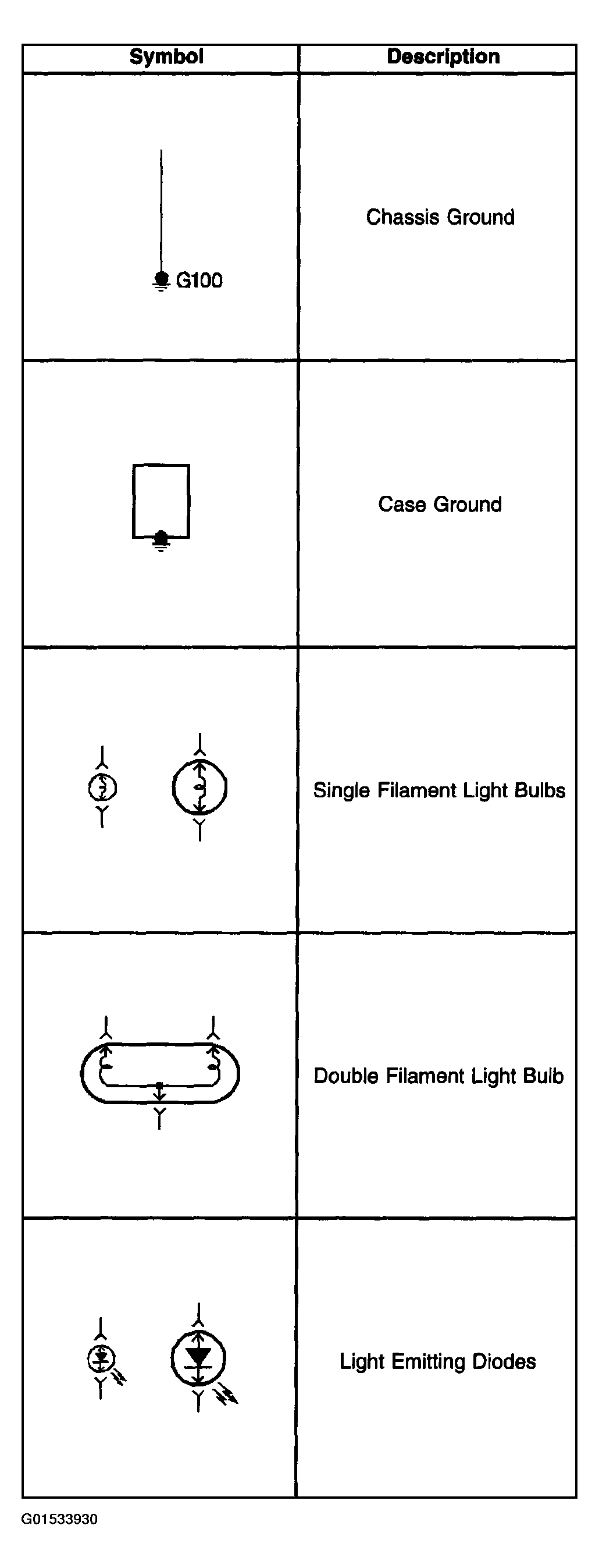

Fig 5: Identifying Electrical Symbols (4 Of 8)

G01533930

Courtesy of GENERAL MOTORS CORP.

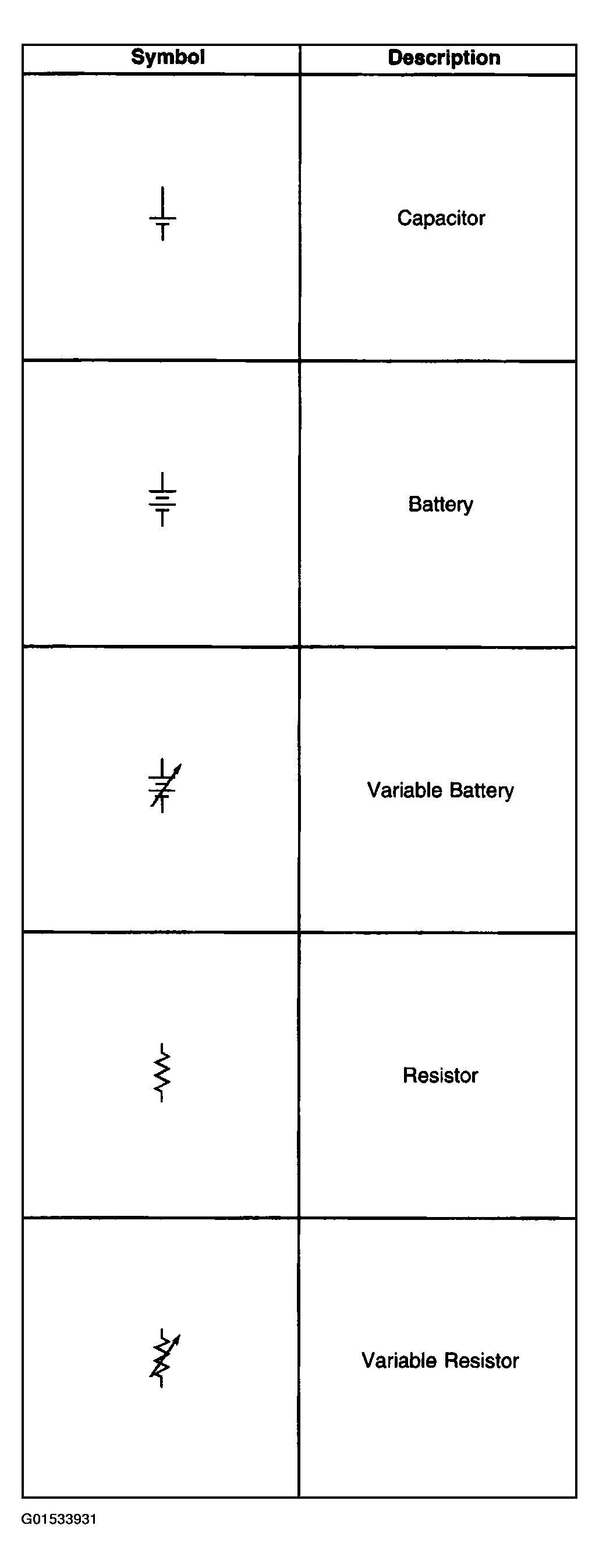

Fig 6: Identifying Electrical Symbols (5 Of 8)

G01533931

Courtesy of GENERAL MOTORS CORP.

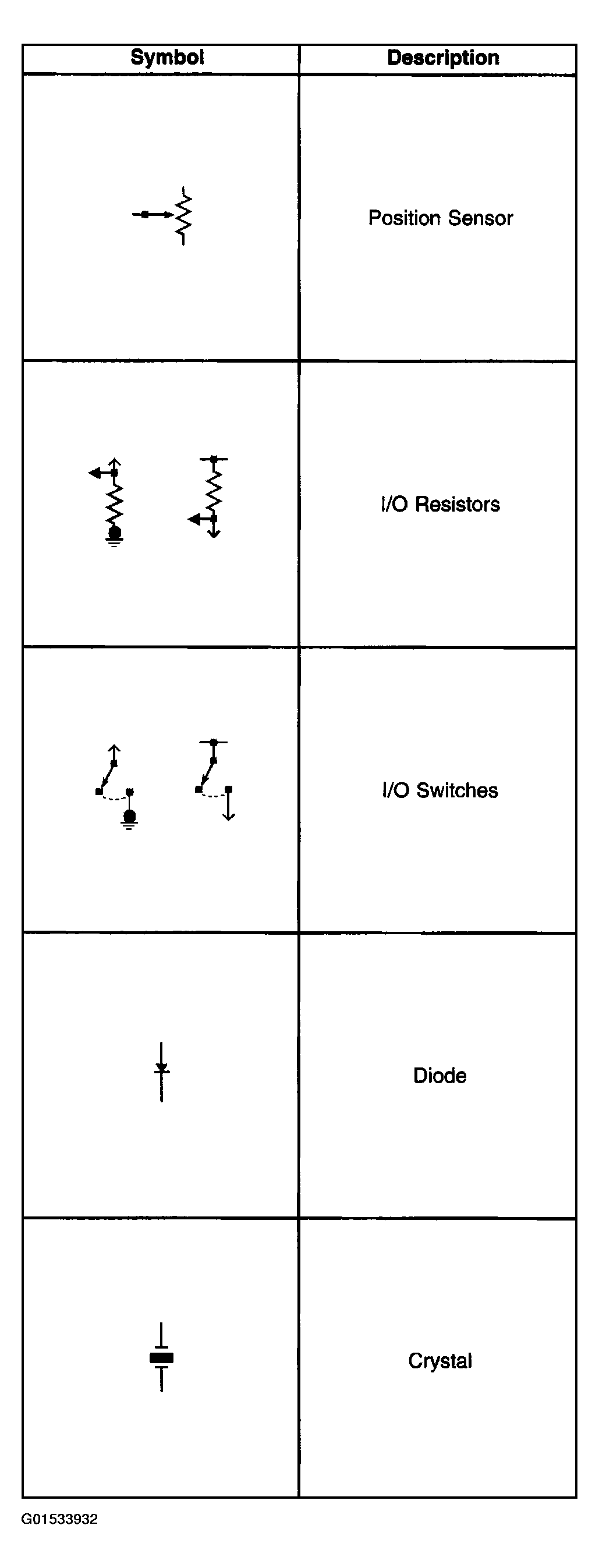

Fig 7: Identifying Electrical Symbols (6 Of 8)

G01533932

Courtesy of GENERAL MOTORS CORP.

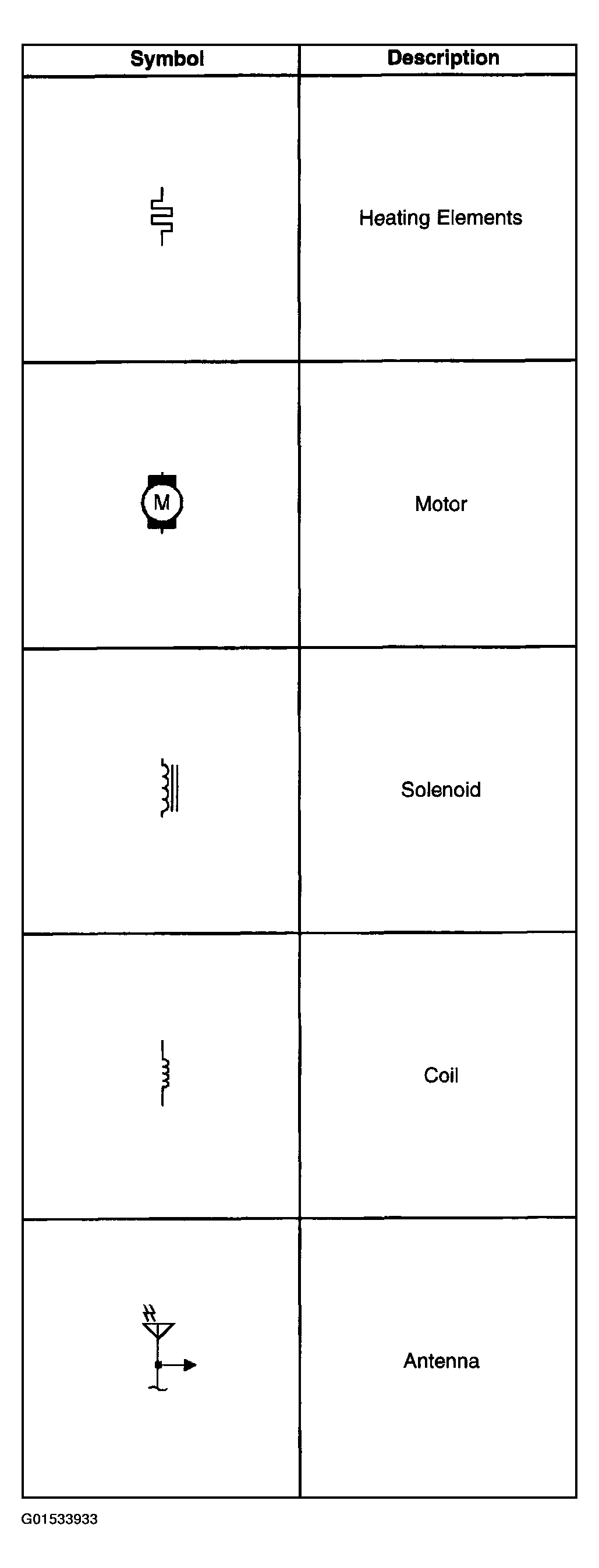

Fig 8: Identifying Electrical Symbols (7 Of 8)

G01533933

Courtesy of GENERAL MOTORS CORP.

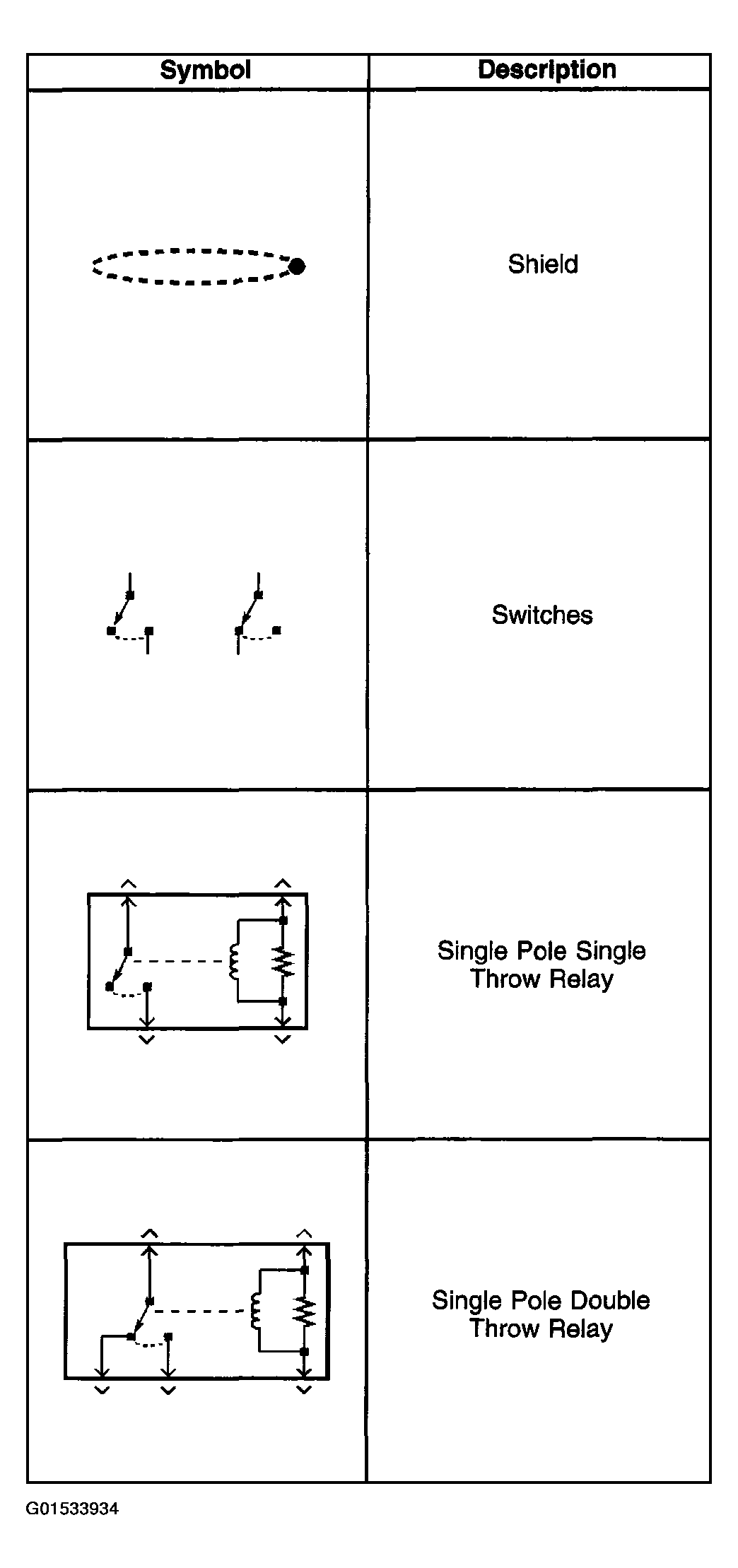

Fig 9: Identifying Electrical Symbols (8 Of 8)

G01533934

Courtesy of GENERAL MOTORS CORP.
