Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust muffler heat shield to the vehicle with new rivets.
  2. Install the exhaust system muffler. Refer to MUFFLER REPLACEMENT   .
  3. Lower the vehicle.

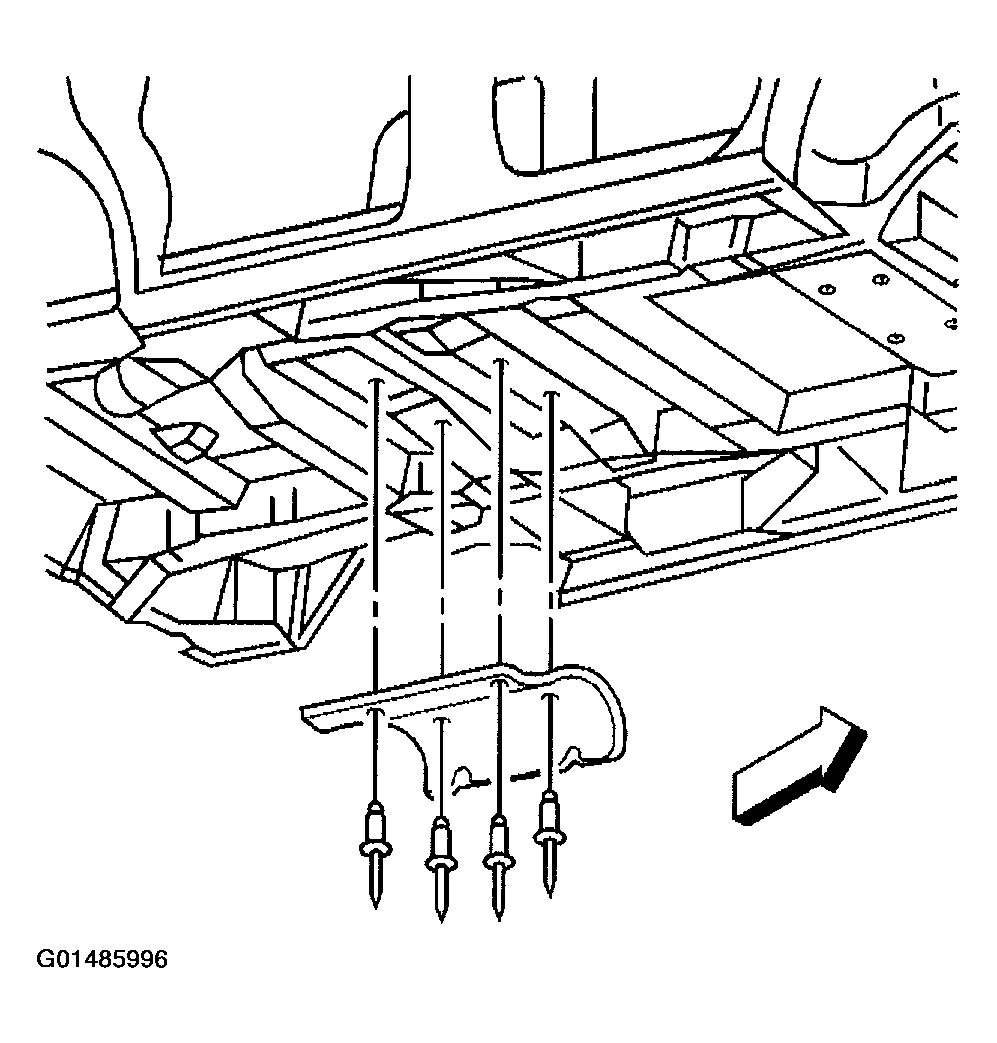

    Fig 1: Removing Exhaust Muffler Heat Shield From Vehicle
    G01485996Courtesy of GENERAL MOTORS CORP.
