Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust crossover pipe.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the exhaust crossover pipe nuts.

    Tighten

    Tighten the exhaust crossover pipe nuts to 25 N.m (18 lb ft).

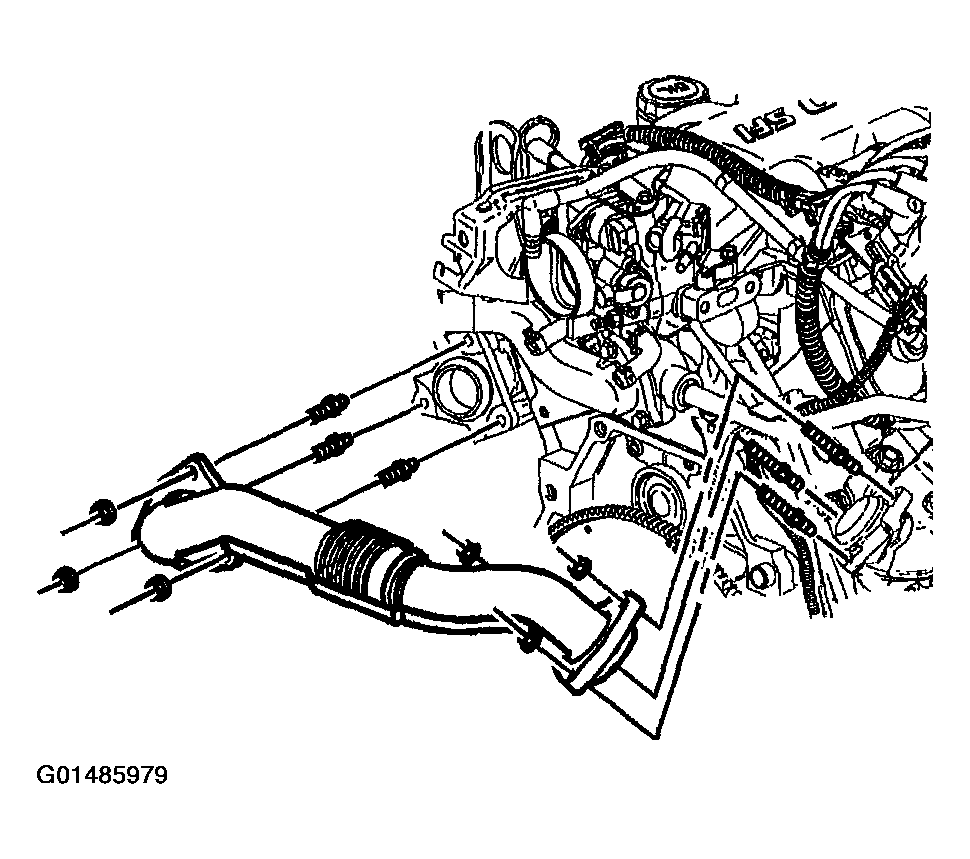

    Fig 1: Installing Exhaust Crossover Pipe
    G01485979Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust crossover pipe heat shield.
  4. Install the exhaust crossover pipe heat shield bolts.

    Tighten

    Tighten the exhaust crossover pipe heat shield bolts to 10 N.m (89 lb in).

  5. Install the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT  in Engine Cooling.
  6. Install the inlet radiator hose to the engine. Refer to RADIATOR HOSE REPLACEMENT - INLET  in Engine Cooling.
  7. Fill the cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM  in Engine Cooling.
  8. Install the throttle body air inlet duct. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.

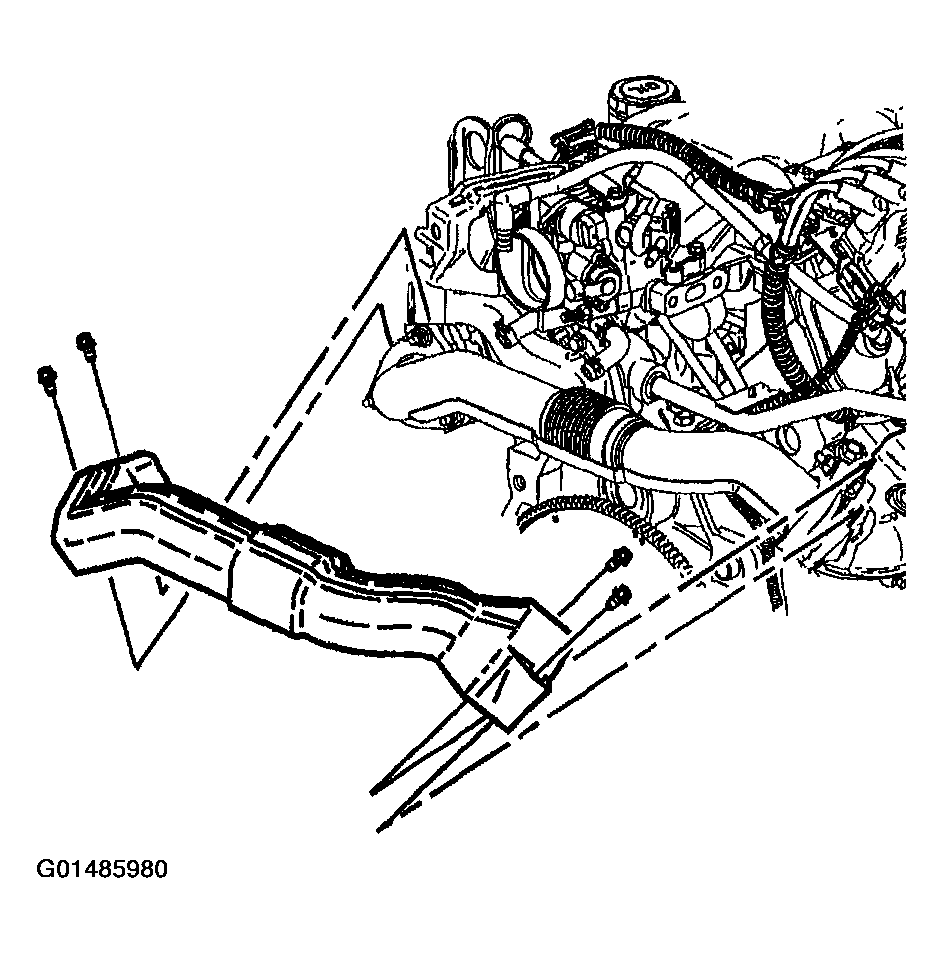

    Fig 2: Installing Exhaust Crossover Pipe Heat Shield
    G01485980Courtesy of GENERAL MOTORS CORP.
