Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to FASTENER NOTICE in General Information.
  2. Remove the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT   .
  3. Use a drill to remove the catalytic converter heat shield rivets.
  4. Remove the catalytic converter heat shield.

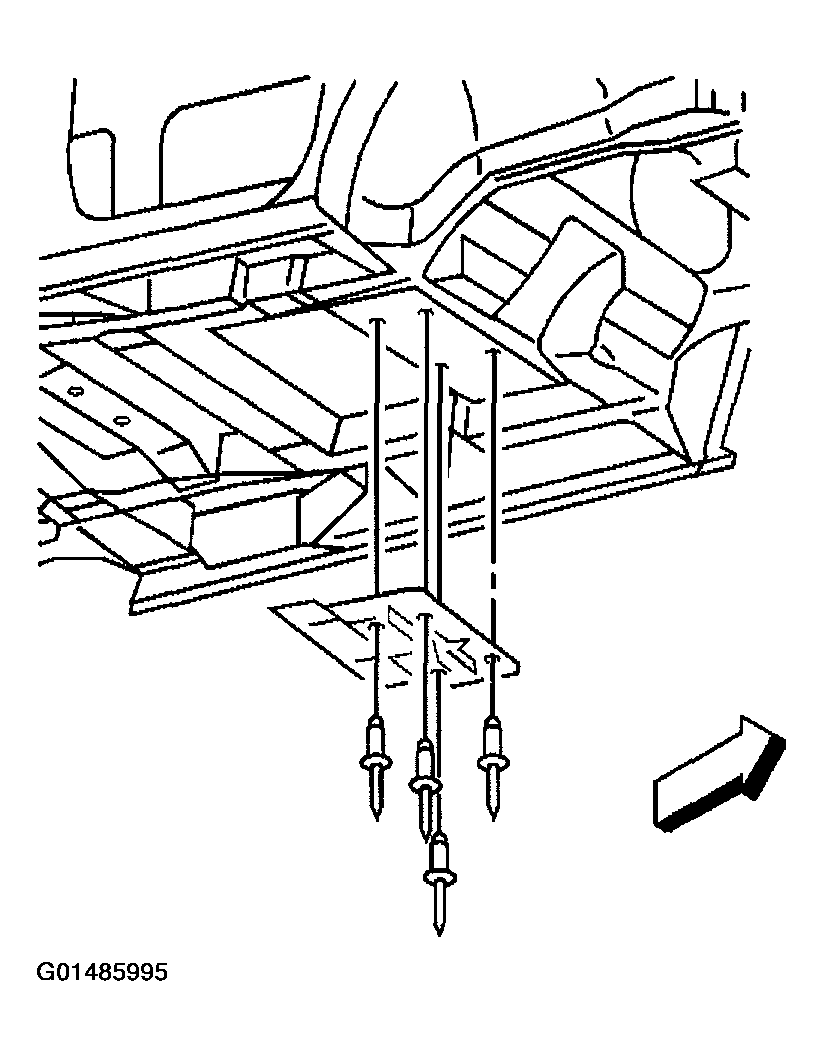

    Fig 1: Removing Catalytic Converter Heat Shield
    G01485995Courtesy of GENERAL MOTORS CORP.
