Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water pump gasket.
  2. Install the water pump.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the water pump Bolts.

    Tighten

    Tighten Bolts to 10 N.m (89 lb in).

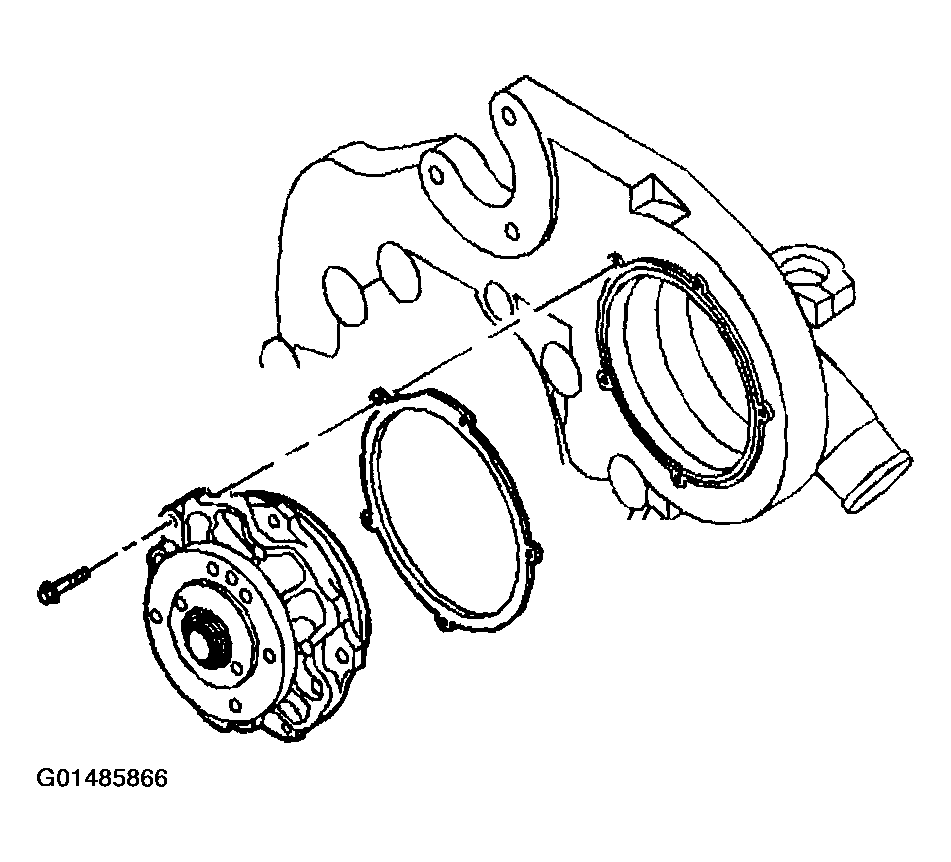

    Fig 1: Installing Water Pump Gasket And Water Pump
    G01485866Courtesy of GENERAL MOTORS CORP.
  4. Install the water pump pulley. Loosely install the mounting Bolts.
  5. Install the drive Belt. Refer to DRIVE BELT REPLACEMENT  in Engine Mechanical - 3.4L.
  6. Install the water pump pulley Bolts.

    Tighten

    Tighten the Bolts to 25 N.m (18 lb in).

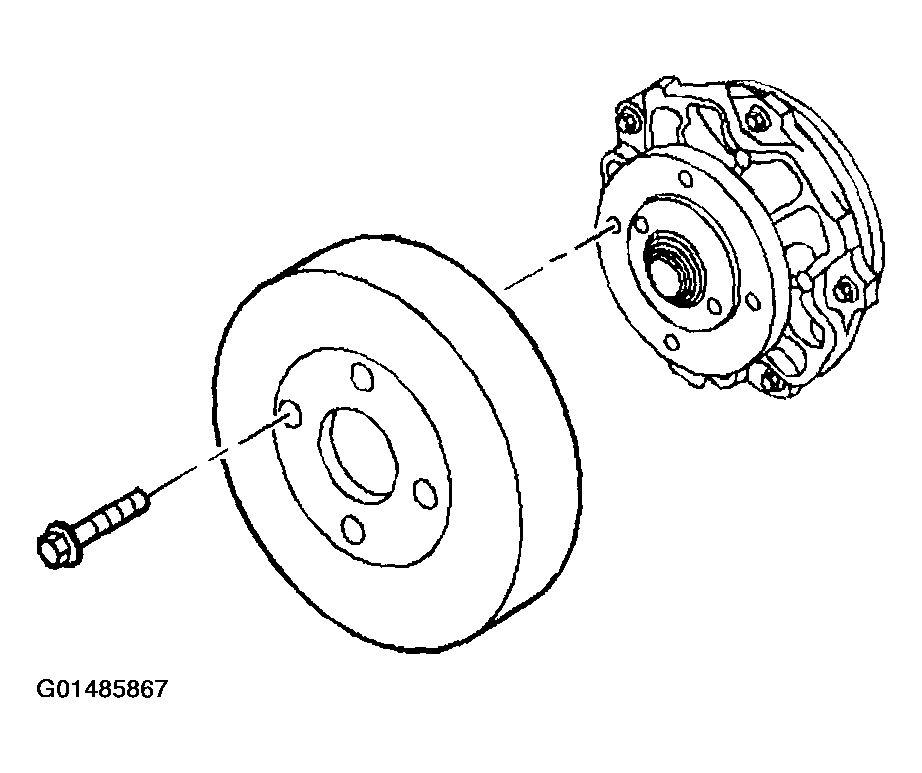

    Fig 2: Installing Water Pump Pulley
    G01485867Courtesy of GENERAL MOTORS CORP.
  7. Install the drive Belt guard.
  8. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM   .
  9. Inspect the cooling system for leaks.

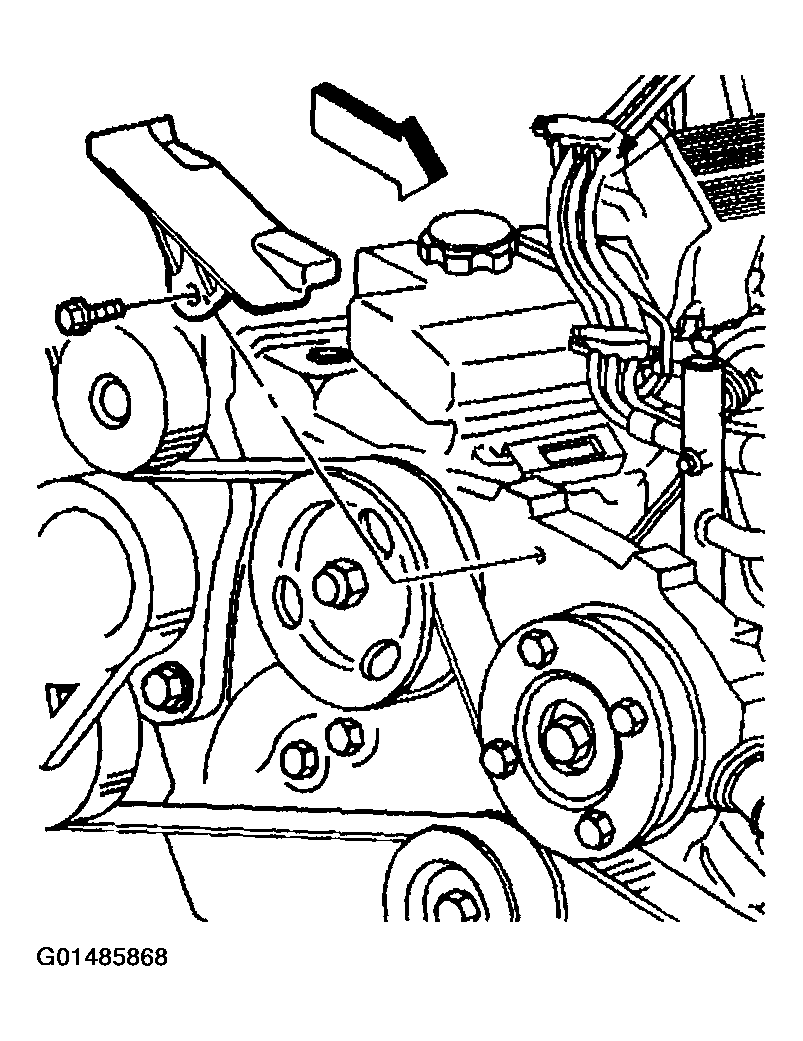

    Fig 3: Installing Drive Belt Guard
    G01485868Courtesy of GENERAL MOTORS CORP.
