Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle Body heater outlet hose.
  2. Use the J 38185  in order to install the hose clamps.
  3. Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM   .
  4. Install the air cleaner and duct assembly. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.

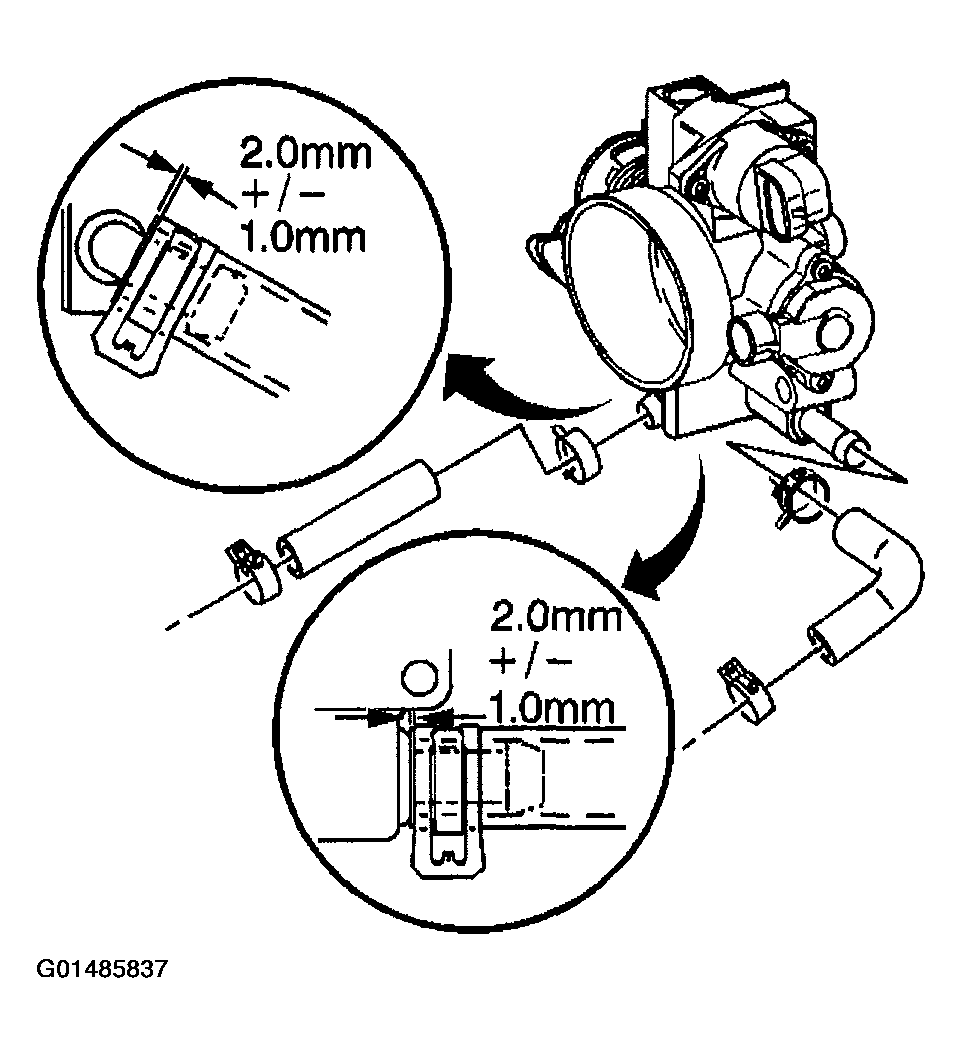

    Fig 1: Installing Throttle Body Heater Outlet Hose
    G01485837Courtesy of GENERAL MOTORS CORP.
