Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM   .

    Important:  Use the J 38185  to gently release tension on the hose clamp until the hose clamp lock feature engages allowing removal of the hose.

  2. Release tension from the hose clamp at the water pump housing using at J 38185.
  3. Disconnect the radiator outlet hose from the water pump housing.
  4. Release tension from the hose clamp at the radiator using the J 38185.
  5. Disconnect the radiator outlet hose from the radiator.
  6. Remove the radiator outlet hose.

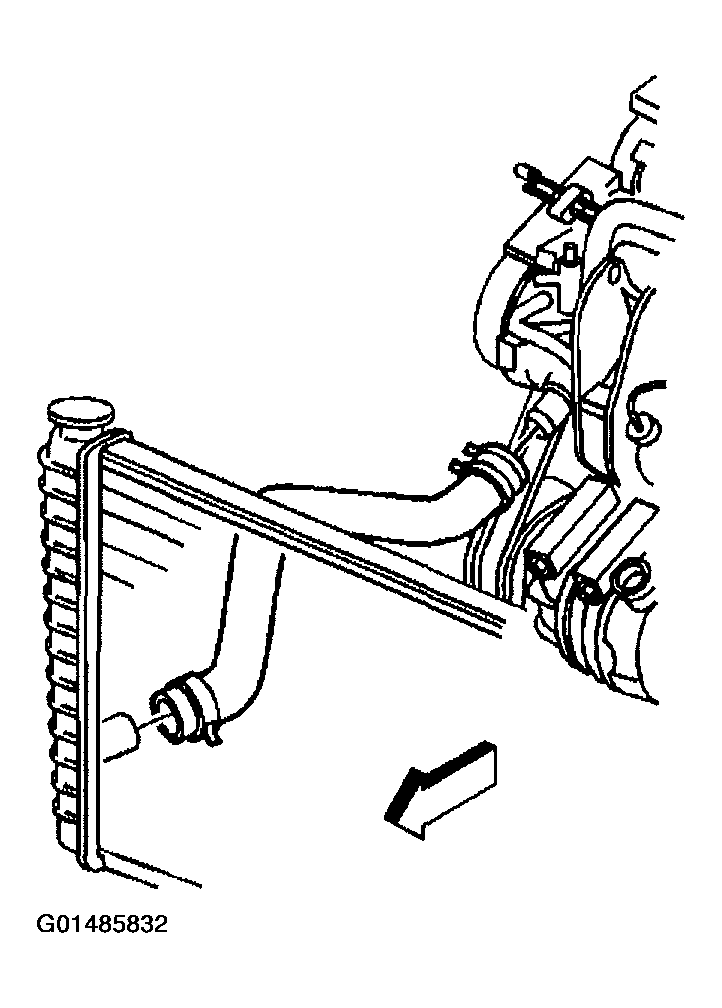

    Fig 1: Disconnecting Radiator Outlet Hose From Radiator
    G01485832Courtesy of GENERAL MOTORS CORP.
