Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to JACKING AND LIFTING in General Information.
  2. Remove the air Baffle Bolts.
  3. Remove the air Baffle.

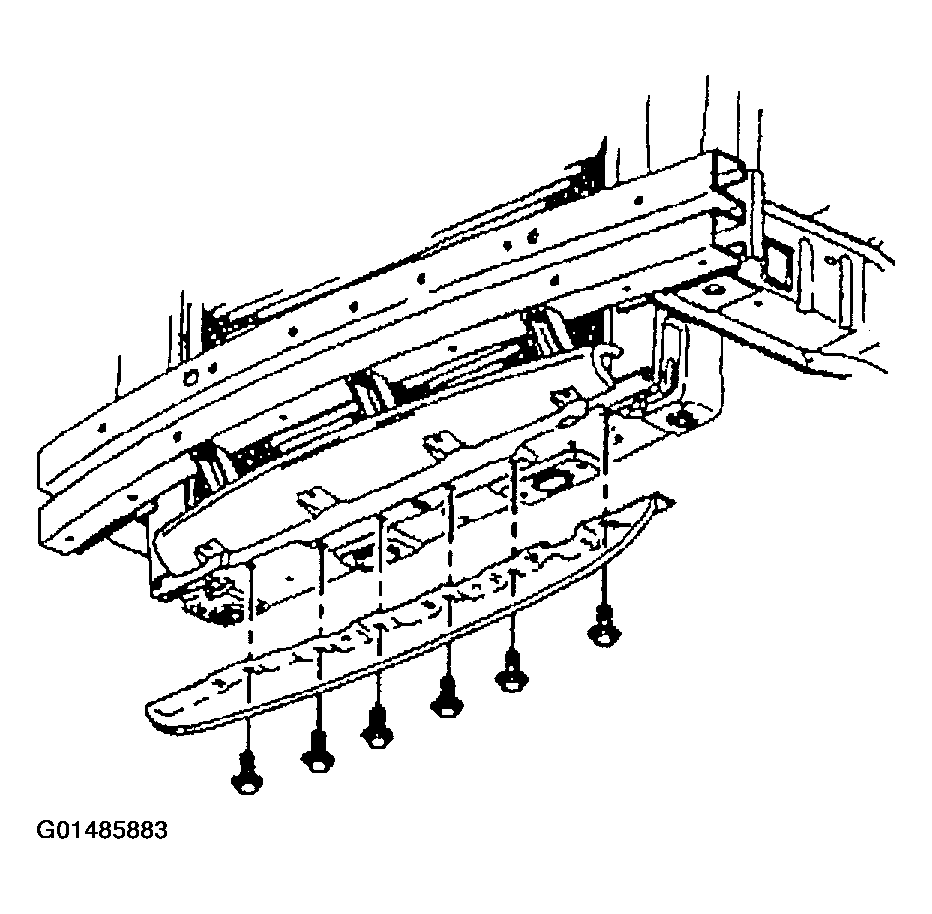

    Fig 1: Removing Air Baffle Bolts And Air Baffle
    G01485883Courtesy of GENERAL MOTORS CORP.
