Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air Baffle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the air Baffle Bolts.

    Tighten

    Tighten the Bolts to 20 N.m (15 lb ft).

  3. Lower the vehicle.

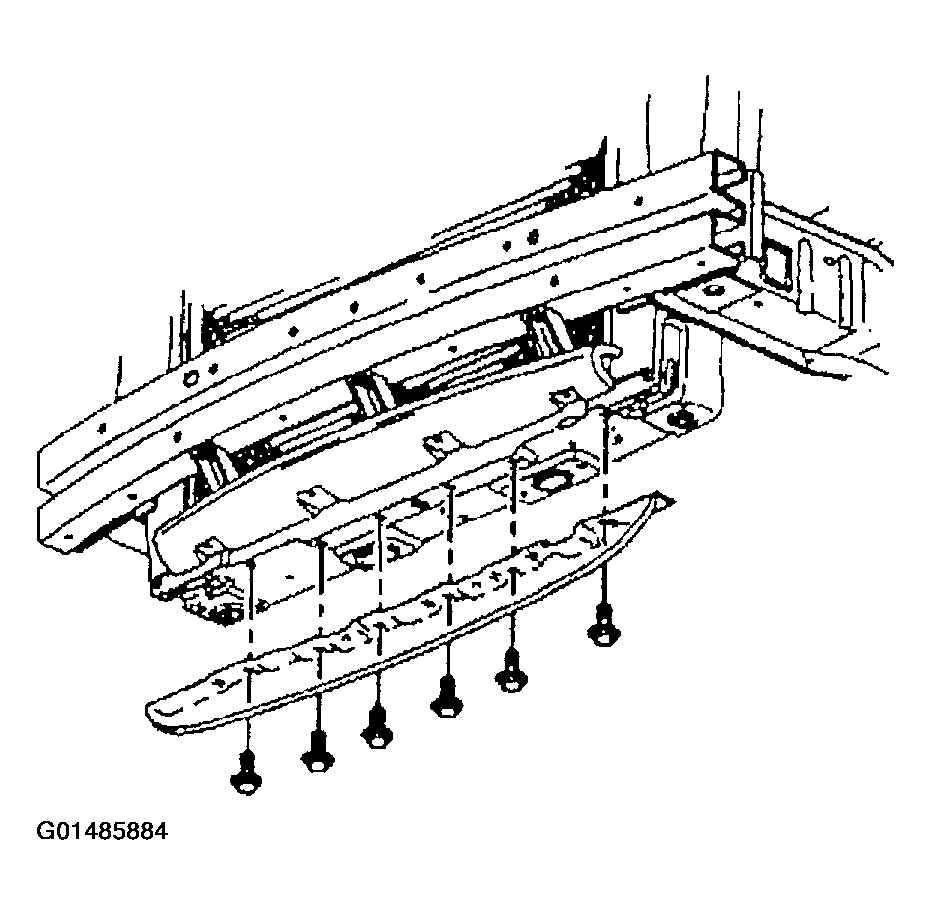

    Fig 1: Installing Air Baffle Bolts And Air Baffle
    G01485884Courtesy of GENERAL MOTORS CORP.
