Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooling fan motor electrical harness to the cooling fan shroud.
  2. Install the heat shields to the cooling fan shroud.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the heat shield screws.

    Tighten

    Tighten the screws to 4 N.m (35 lb in).

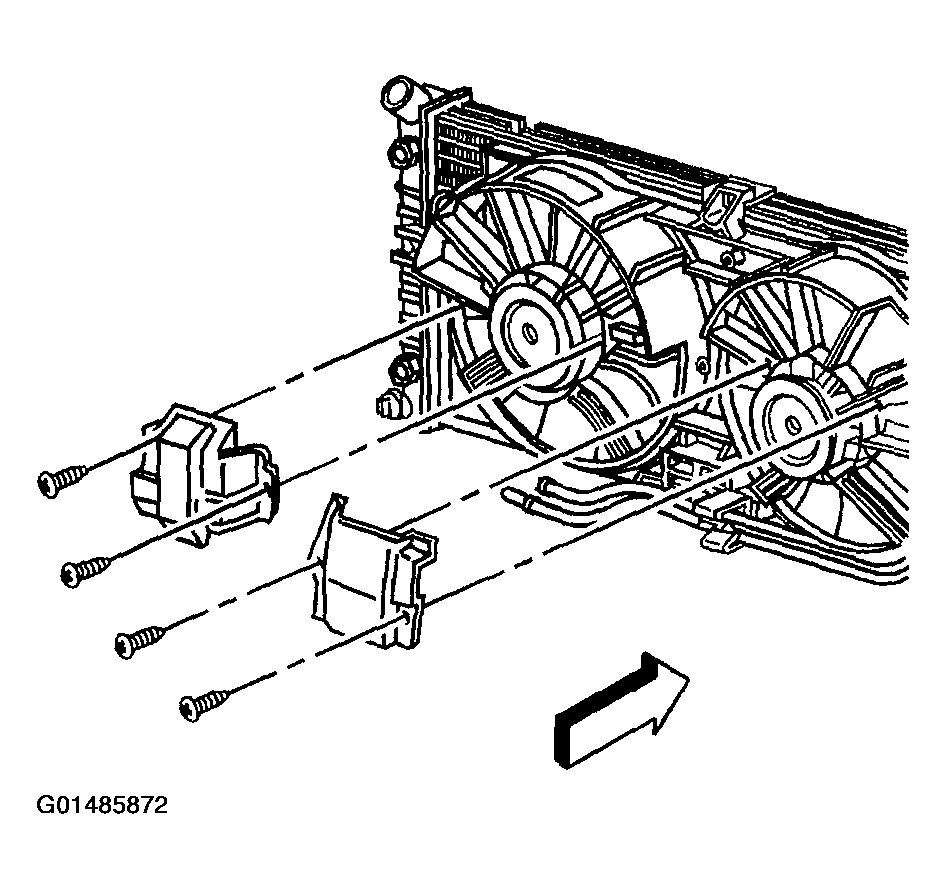

    Fig 1: Installing Heat Shields To Cooling Fan Shroud
    G01485872Courtesy of GENERAL MOTORS CORP.
  4. Install the fan motors to the cooling fan shroud.
  5. Install the screws to the cooling fan motor.

    Tighten

    Tighten the screws to 6 N.m (53 lb in).

  6. Connect the cooling fan motor electrical connectors.

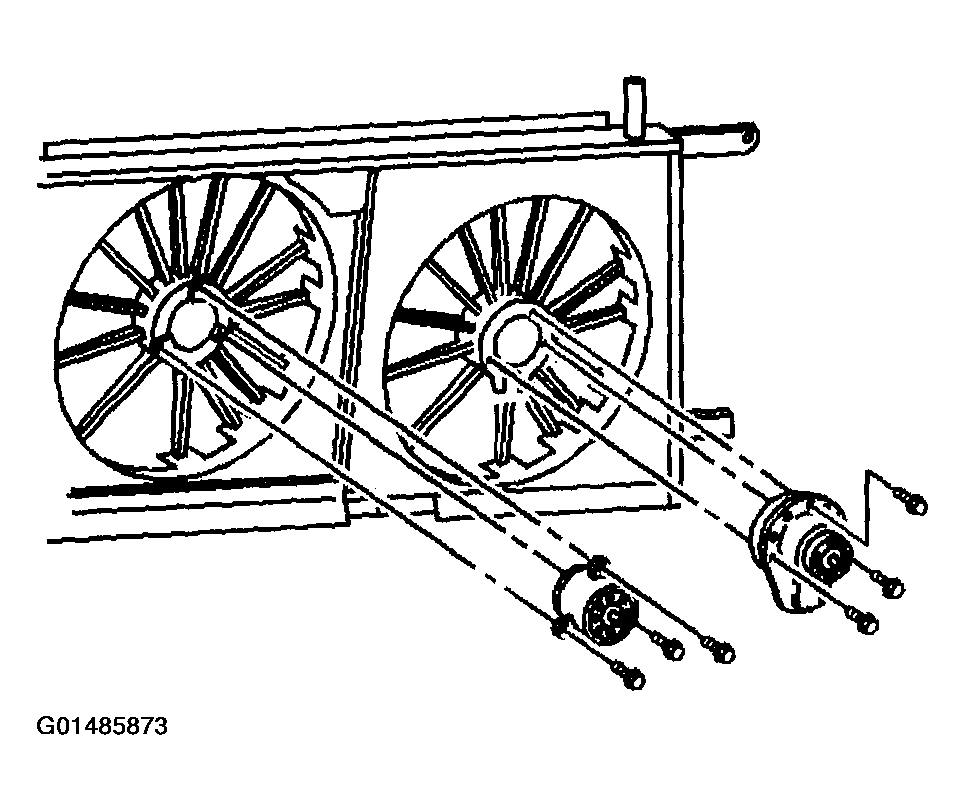

    Fig 2: Installing Screws To Cooling Fan Motor
    G01485873Courtesy of GENERAL MOTORS CORP.
  7. Install the cooling fans to the shroud.

    Important:  Turn the cooling fan nuts counterclockwise to tighten.

  8. Install the cooling fan nuts.

    Tighten

    Tighten the nuts to 6 N.m (53 lb in).

  9. Install the electric cooling fan assembly. Refer to COOLING FAN REPLACEMENT - ELECTRIC   .

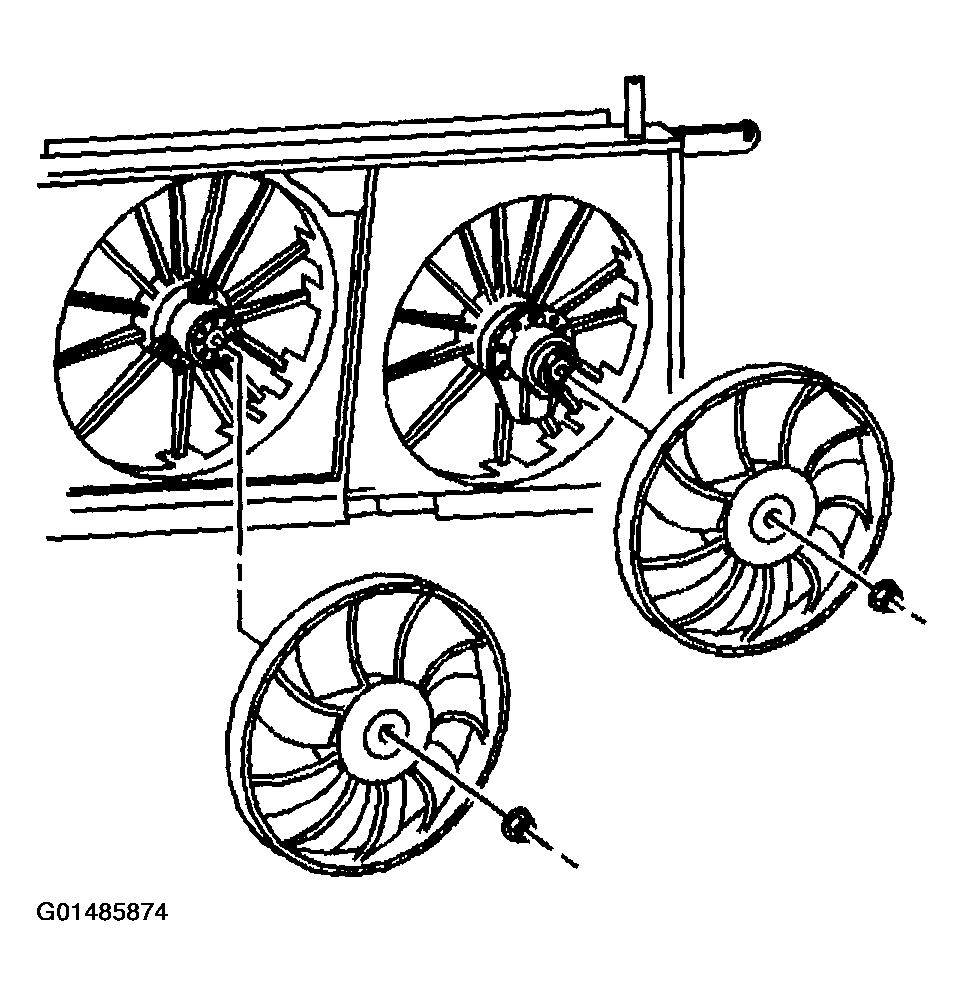

    Fig 3: Installing Cooling Fans To Shroud
    G01485874Courtesy of GENERAL MOTORS CORP.
