Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer toELECTRIC COOLANT FAN CAUTION
in Cautions and Notices.
CAUTION:
To help avoid personal injury or damage to the vehicle, a bent, cracker, or damaged fan blade or housing should always be replaced.
Important: If abnormal noise or vibration is felt from the engine compartment, inspect and clean any foreign material from the cooling fan Blades.
- Turn the ignition off.
- Remove the cooling fans with the cooling fan shroud. Refer to COOLING FAN REPLACEMENT - ELECTRIC
.
Important: Turn the cooling fan nut clockwise to loosen.

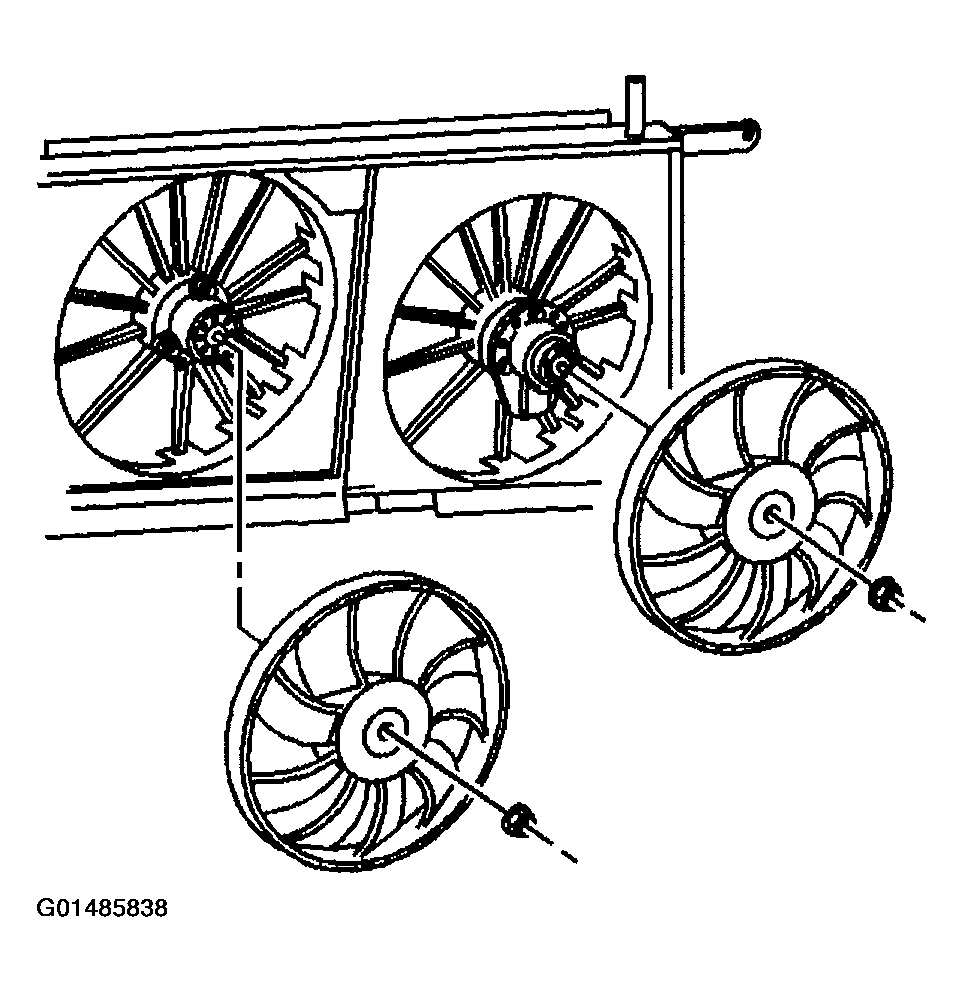

- Remove the cooling fan nut.
- Remove the cooling fan.
