Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Reposition the reservoir hose clamp at the radiator overflow fitting using the J 38185.
  2. Remove the reservoir hose at the radiator overflow fitting.
  3. Remove the mounting clip to the reservoir.
  4. Remove the coolant reservoir.

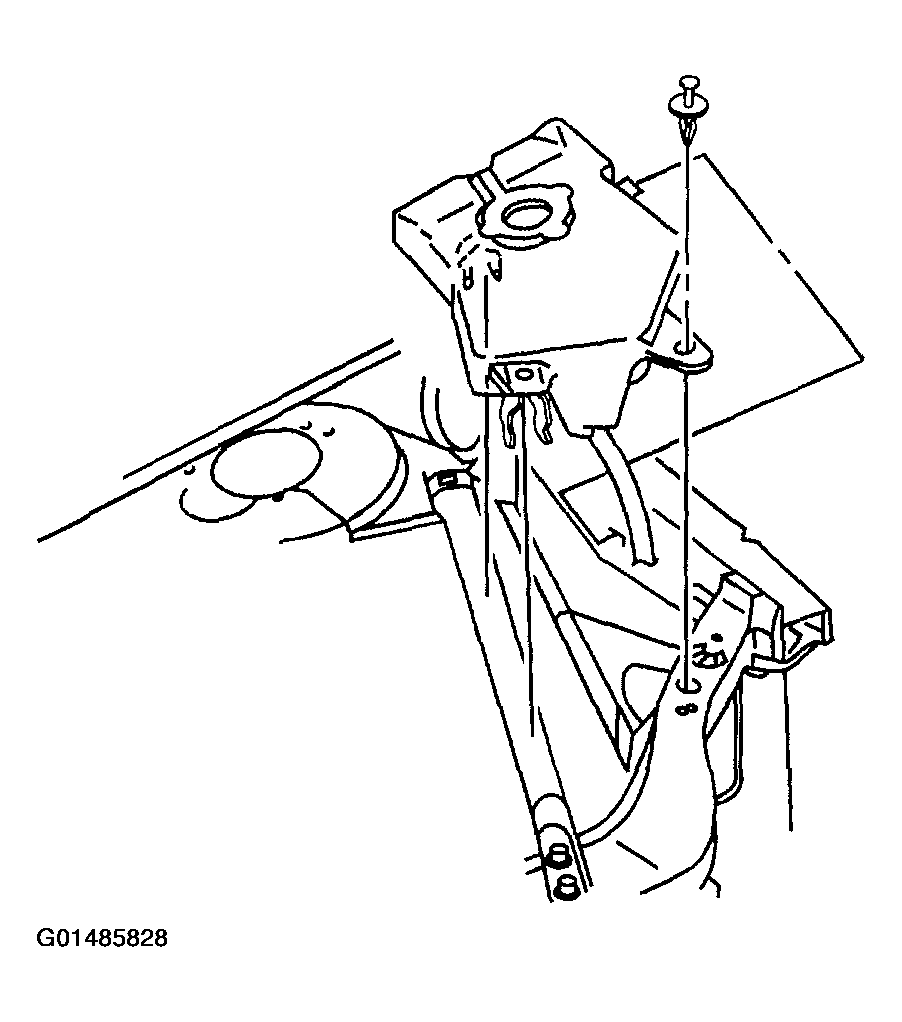

    Fig 1: Removing Coolant Recovery Reservoir
    G01485828Courtesy of GENERAL MOTORS CORP.
