Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coolant reservoir.
  2. Install the mounting clip to the reservoir.
  3. Connect the reservoir hose to the radiator overflow fitting.
  4. Reposition the reservoir hose clamp to secure the hose using the J 38185.
  5. Fill the coolant reservoir. Refer to DRAINING AND FILLING COOLING SYSTEM   .

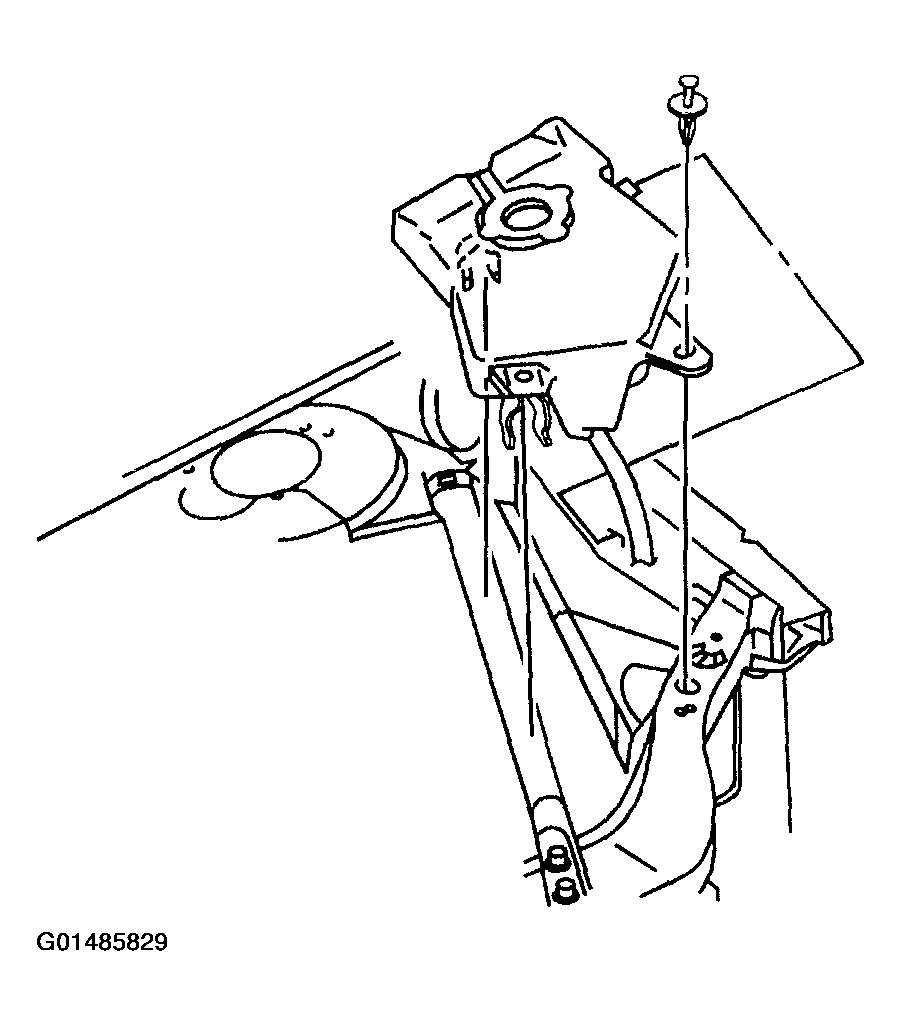

    Fig 1: Installing Coolant Recovery Reservoir
    G01485829Courtesy of GENERAL MOTORS CORP.
