Thermostat Test Procedure Using Glycol
WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

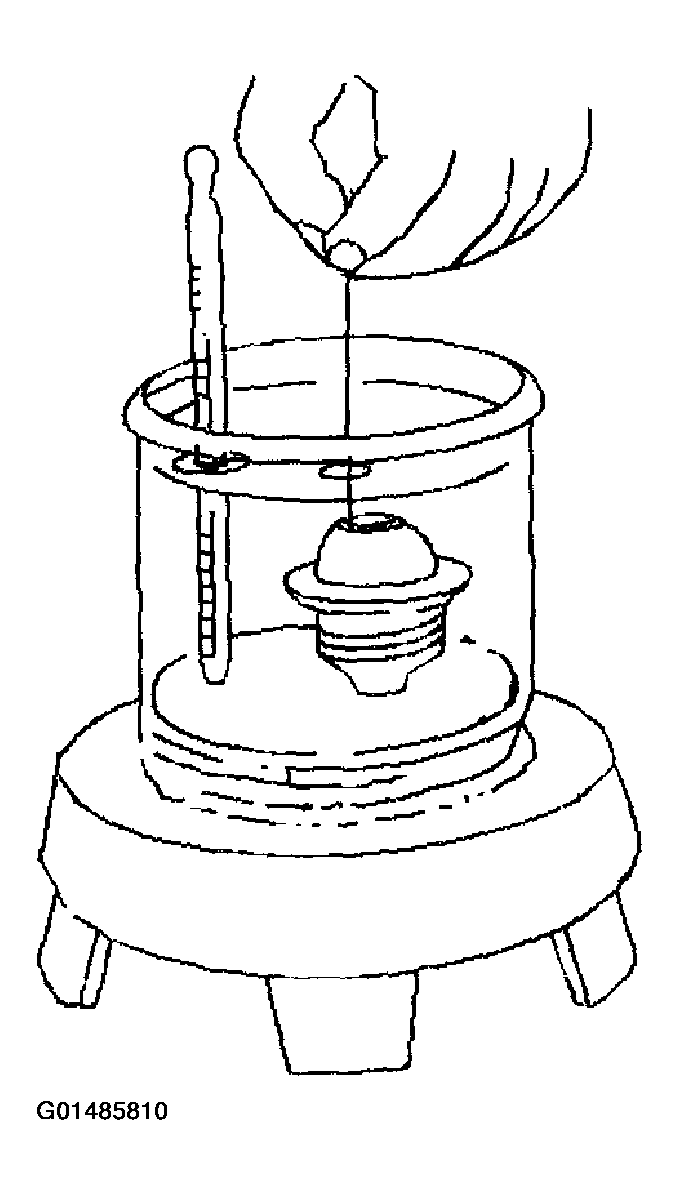

Inspect the operation of the thermostat By hanging the thermostat on a hook in a 33 percent glycol solution.
In order to inspect if the thermostat valve is opening properly, perform following test:
- Completely Submerge the thermostat in a glycol solution. The solution should Be 11°C (22°F) above the temperature indicated on the thermostat valve.
- Thoroughly agitate the solution. Under these conditions, the thermostat valve should open.
In order to inspect if the thermostat valve is closing properly, perform the following test:
- Completely submerge the thermostat in a glycol solution. The solution should Be 6°C (10°F) Below the temperature indicated on the thermostat valve.
- Thoroughly agitate the solution. Under these conditions, the thermostat valve should close completely.
