WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

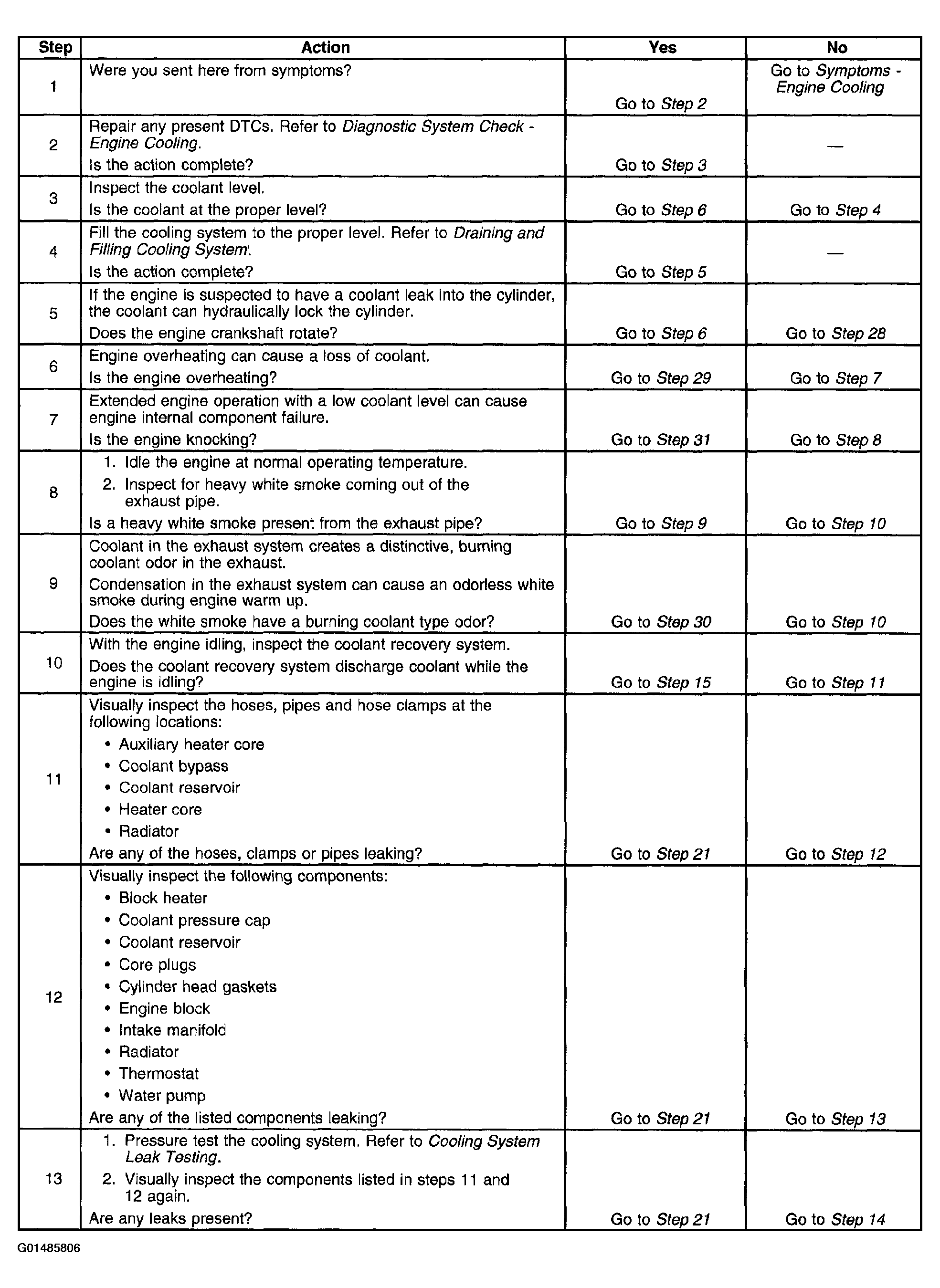

Fig 1: Diagnostic System Check - Loss Of Coolant (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

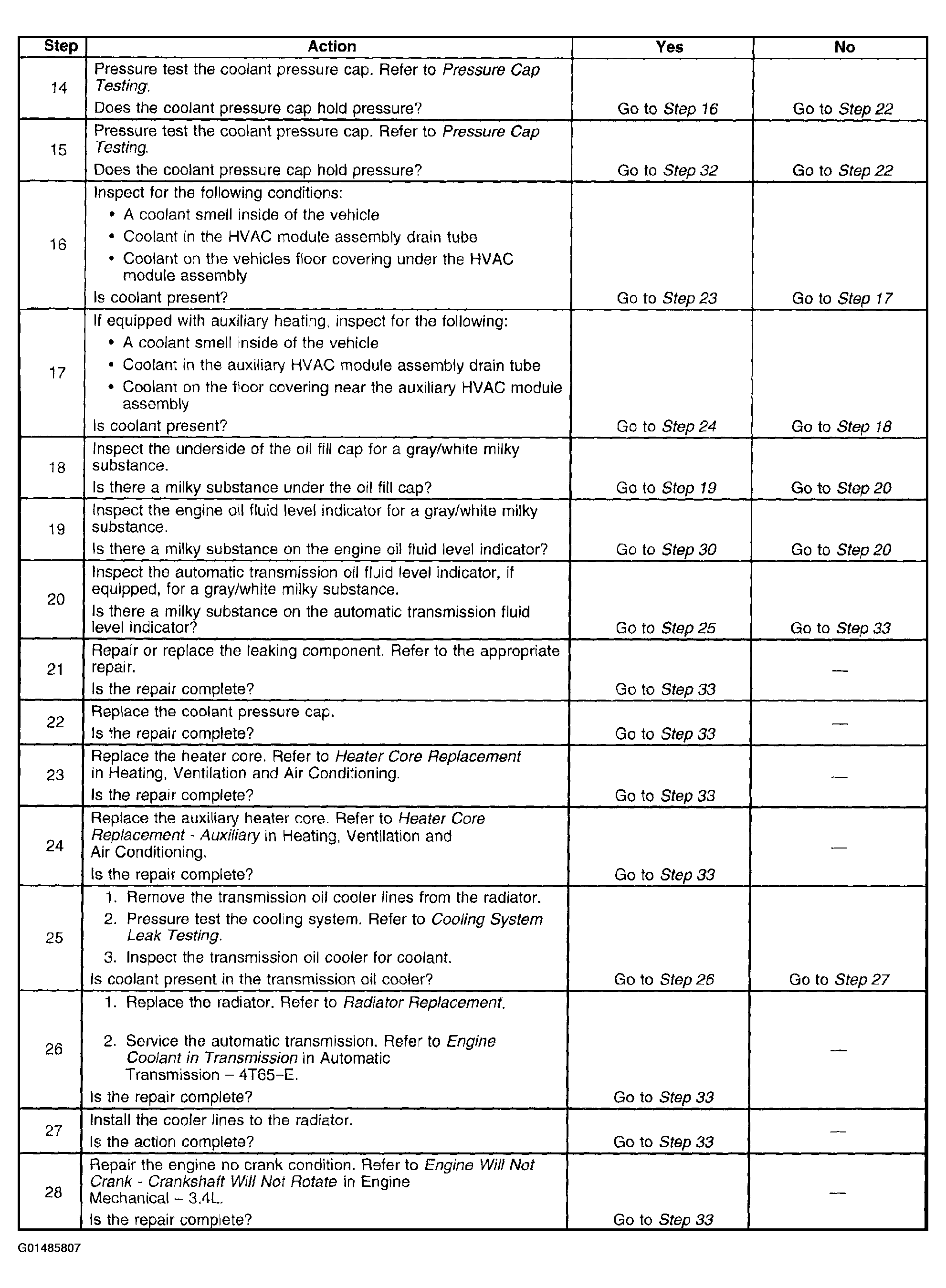

Fig 2: Diagnostic System Check - Loss Of Coolant (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

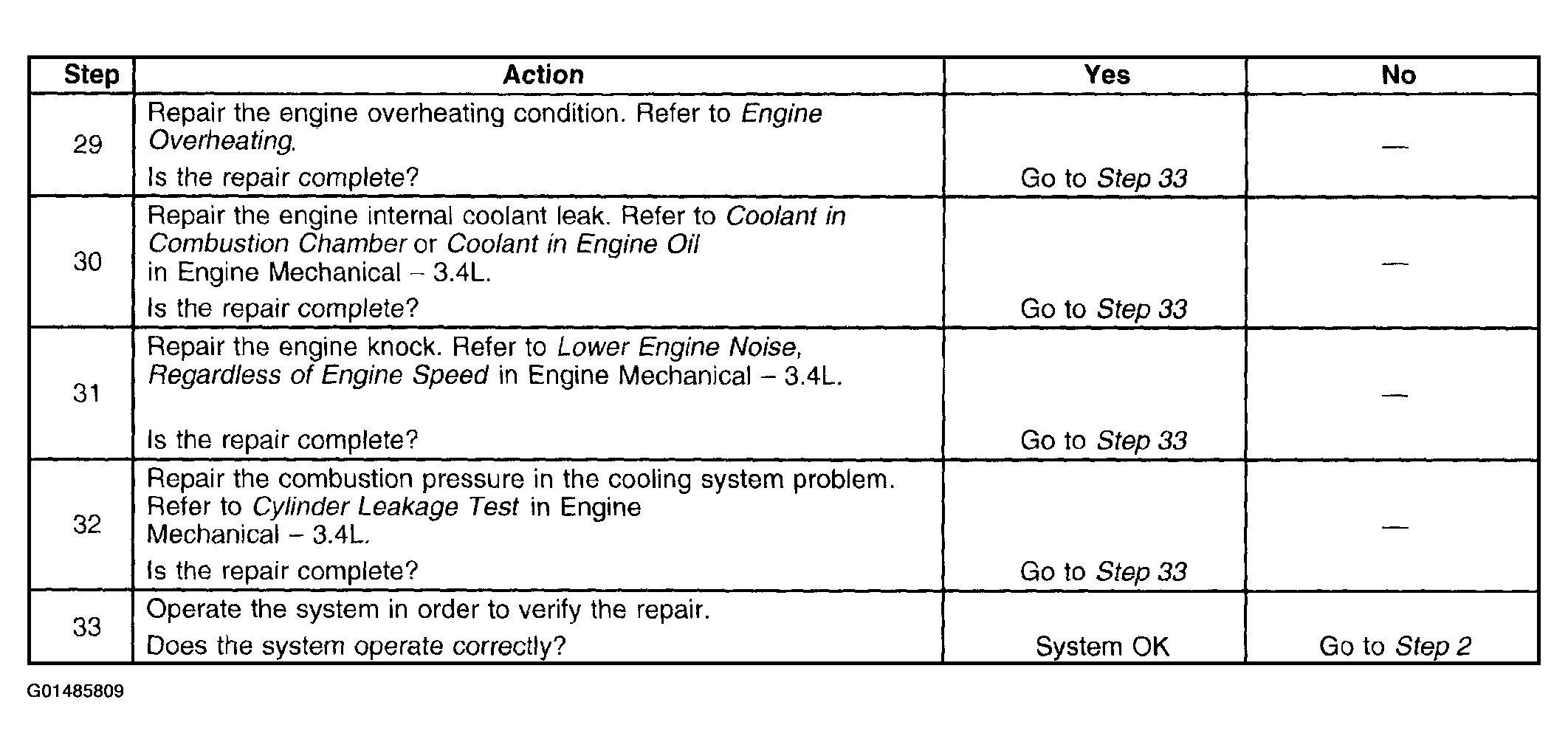

Fig 3: Diagnostic System Check - Loss Of Coolant (3 Of 3)
