Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover(s). Refer to VALVE ROCKER ARM COVER REPLACEMENT - LEFT  and/or VALVE ROCKER ARM COVER REPLACEMENT - RIGHT  .
  2. Remove the rocker arm bolt(s).
  3. Remove the valve rocker arm(s) and the pushrod(s).

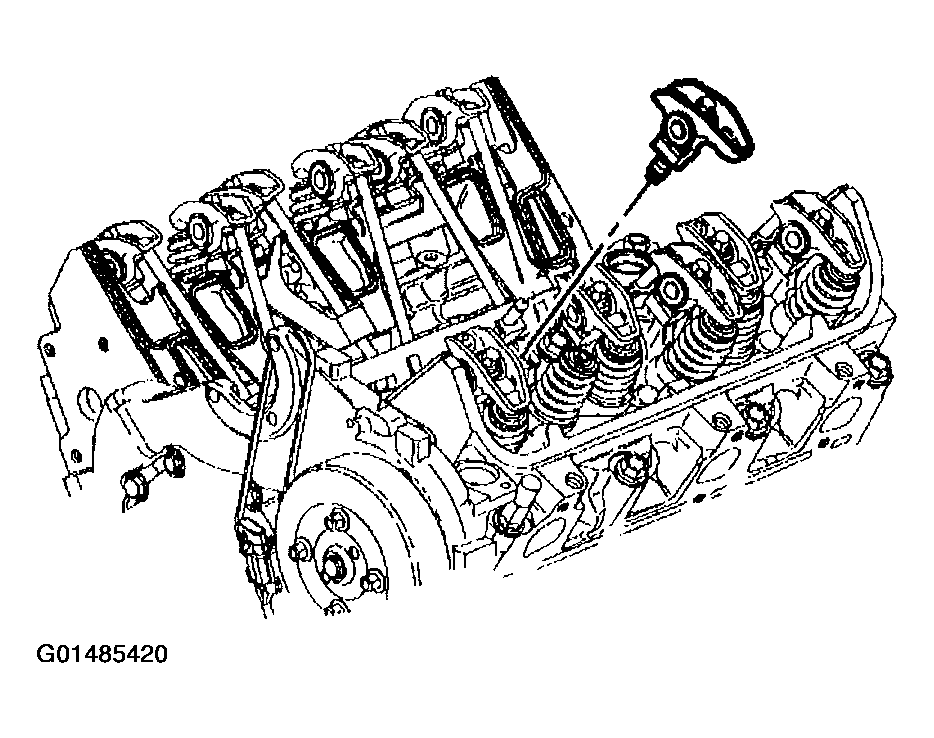

    Fig 1: Removing Valve Rocker Arm
    G01485420Courtesy of GENERAL MOTORS CORP.
