Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N 12345739 or the equivalent to the notches where the cylinder head and intake manifold meet.
  3. Install the valve rocker arm cover.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install the PCV valve to the engine left side valve rocker arm cover.

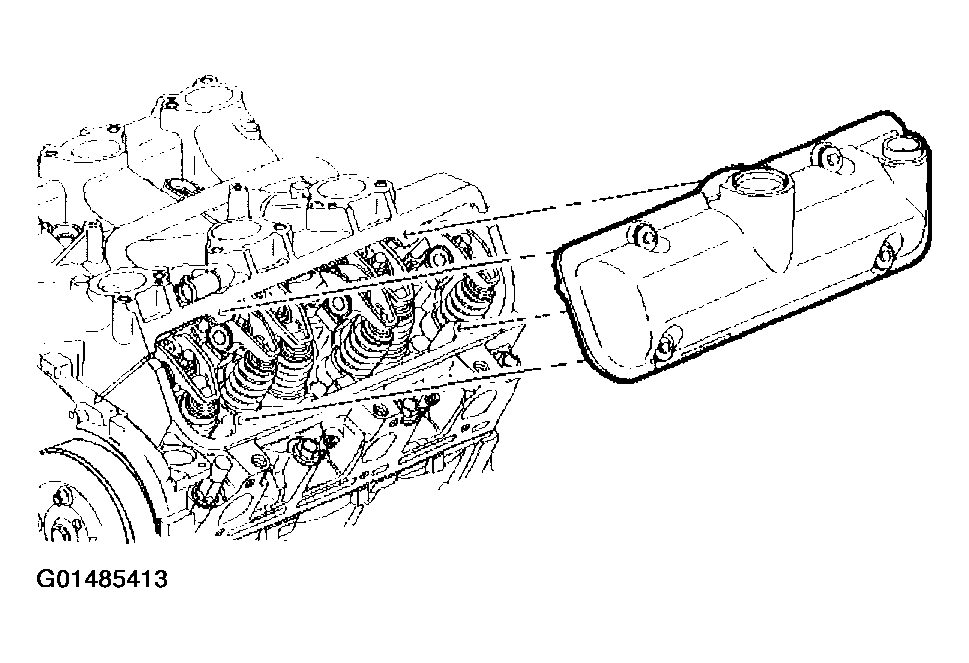

    Fig 1: Installing Valve Rocker Arm Cover
    G01485413Courtesy of GENERAL MOTORS CORP.
  6. Install the right engine mount strut at the engine. Refer to ENGINE MOUNT STRUT REPLACEMENT - RIGHT   .
  7. Connect the engine left side spark plug wires. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
