Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the valve lifters using prelube GM P/N 1052367 (Canadian P/N 992869) or the equivalent.
  2. Install the valve lifters in their original locations.
  3. Install the lifter guide.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Apply threadlock GM P/N 12345382 (Canadian P/N 10953489) or the equivalent to the lifter guide bolts and install the bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install the valve rocker arms and pushrods. Refer to VALVE ROCKER ARM AND PUSH ROD REPLACEMENT   .
  6. Install the lower intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - LOWER   .
  7. Install the valve rocker arm cover. Refer to VALVE ROCKER ARM COVER REPLACEMENT - LEFT   or VALVE ROCKER ARM COVER REPLACEMENT - RIGHT   .
  8. Inspect for leaks.

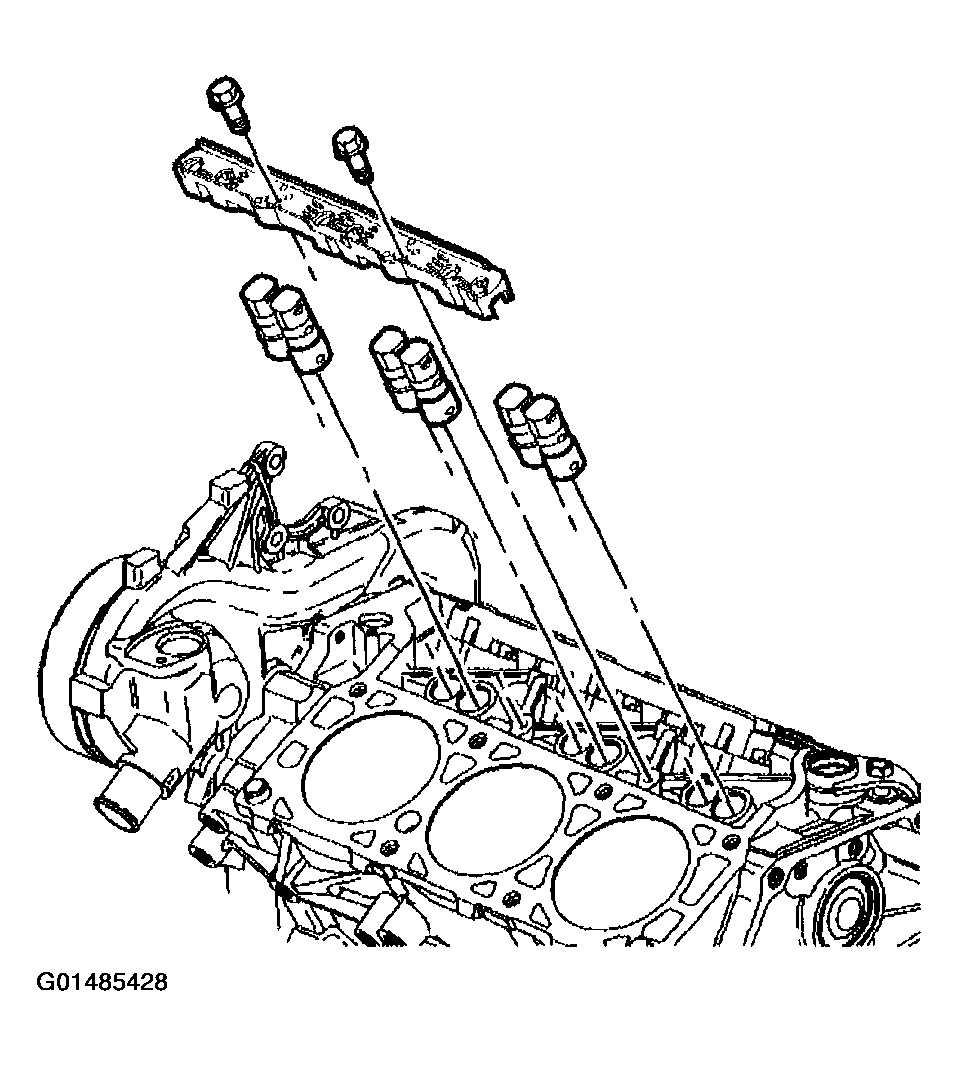

    Fig 1: Installing Lifter Guide And Bolts
    G01485428Courtesy of GENERAL MOTORS CORP.
