Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. Refer to INTAKE MANIFOLD REPLACEMENT - UPPER   .
  2. Disconnect the fuel feed and return pipe from the fuel injector rail. Refer to ENGINE CONTROLS - REMOVAL & INSTALLATION & OVERHAUL  in Removal and Installation in Engine Performance.
  3. Remove the oil pump drive clamp bolt.
  4. Remove the oil pump drive clamp.
  5. Remove the oil pump drive.

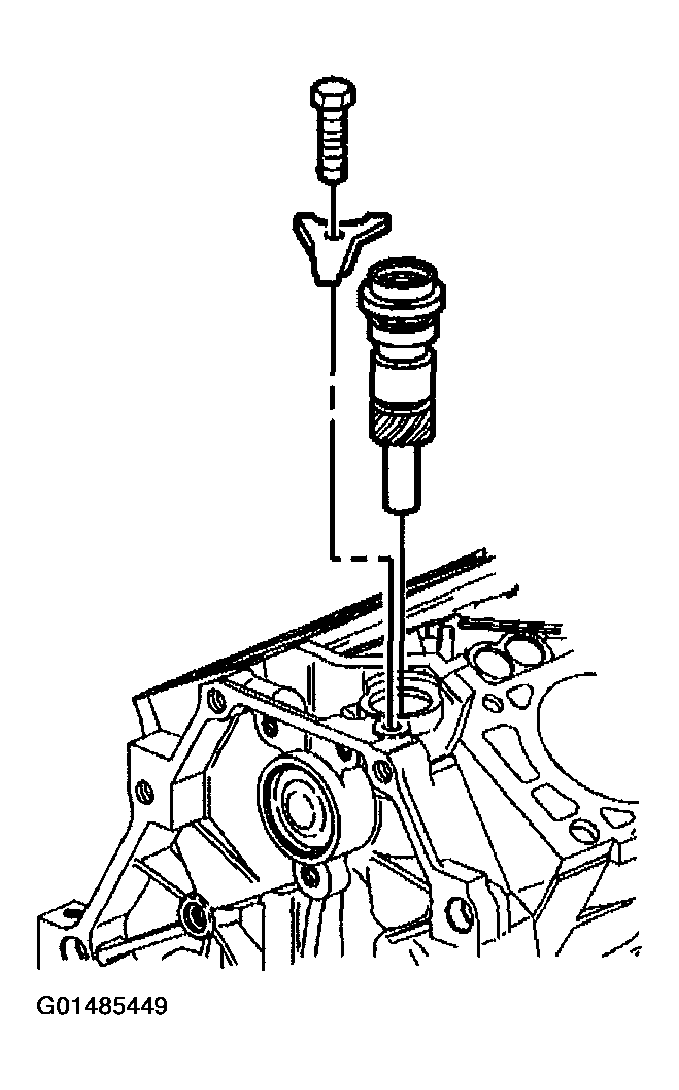

    Fig 1: Removing Oil Pump Drive, Clamp And Clamp Bolt
    G01485449Courtesy of GENERAL MOTORS CORP.
