Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT  in Engine Cooling.
  2. Remove the oil level indicator.
  3. Remove the oil level indicator tube.

    If you are unable to remove the oil level indicator tube, perform the following steps:

    1. 3.1. Remove the stud in order to allow for lateral movement of the oil level indicator tube.
    2. 3.2. Apply penetrating oil to the bottom of the oil level indicator tube.
    3. 3.3. Move the oil level indicator tube back and forth in order to loosen the oil level indicator tube.

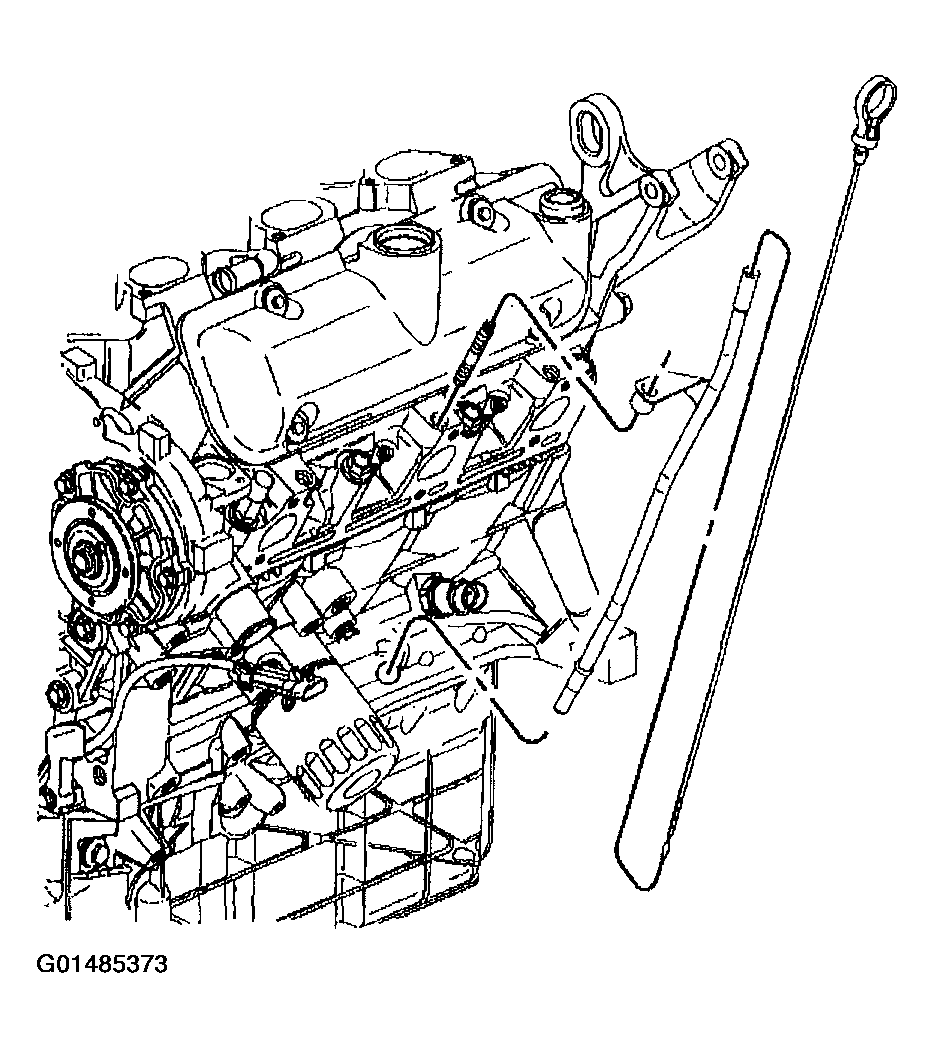

    Fig 1: Removing Thermostat Bypass Pipe
    G01485373Courtesy of GENERAL MOTORS CORP.
