Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the oil level indicator tube.
  2. Apply GM sealant P/N 12345739 or equivalent around the oil level indicator tube 12.7 mm (0.50 in) below the bead.
  3. Install the oil level indicator tube into the engine block.
  4. Install the oil level indicator.
  5. Install the thermostat bypass pipe. Refer to THERMOSTAT BYPASS PIPES REPLACEMENT  in Engine Cooling.

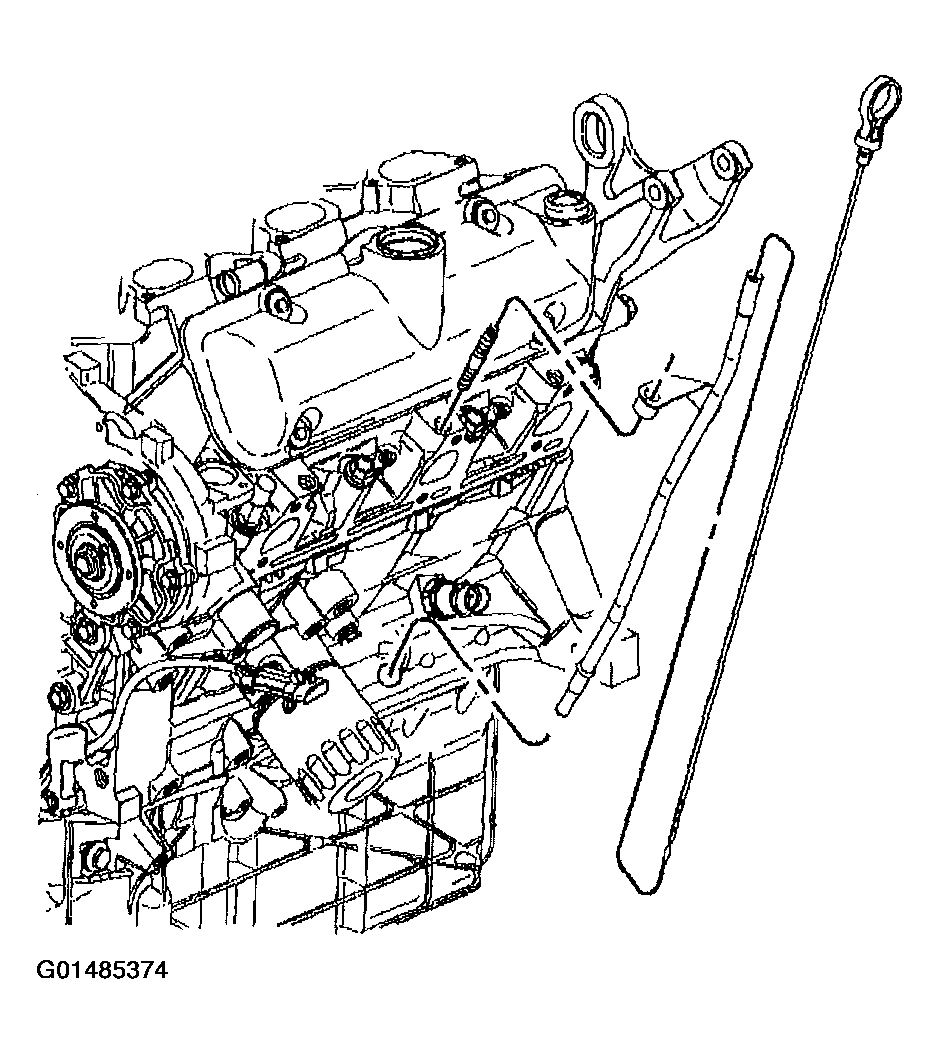

    Fig 1: Cleaning Oil Level Indicator Tube
    G01485374Courtesy of GENERAL MOTORS CORP.
