Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil cooler and the oil cooler inlet hose clamp. Ensure that the oil cooler seal is in place. Coat the seal with engine oil.

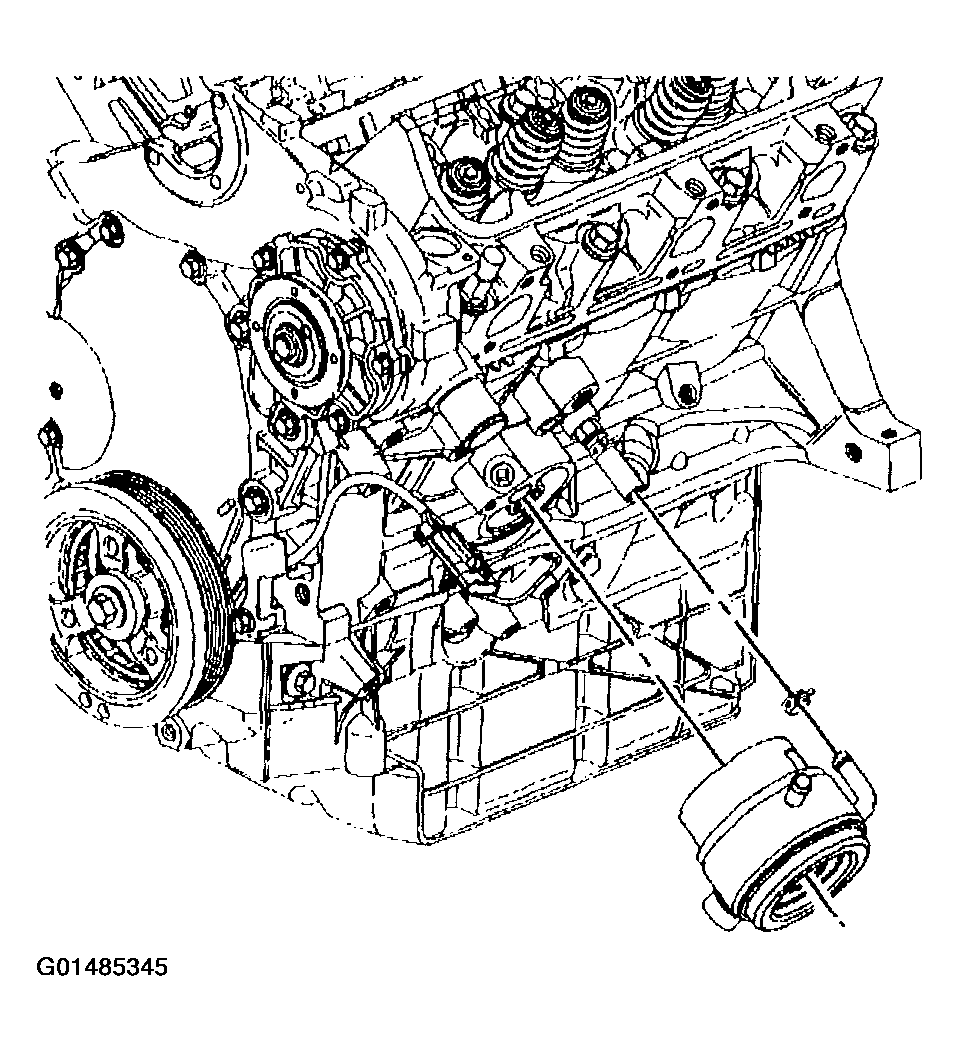

    Fig 1: Installing Oil Cooler
    G01485345Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the oil cooler connector.

    Tighten

    Tighten the oil cooler connector to 50 N.m (37 lb ft).

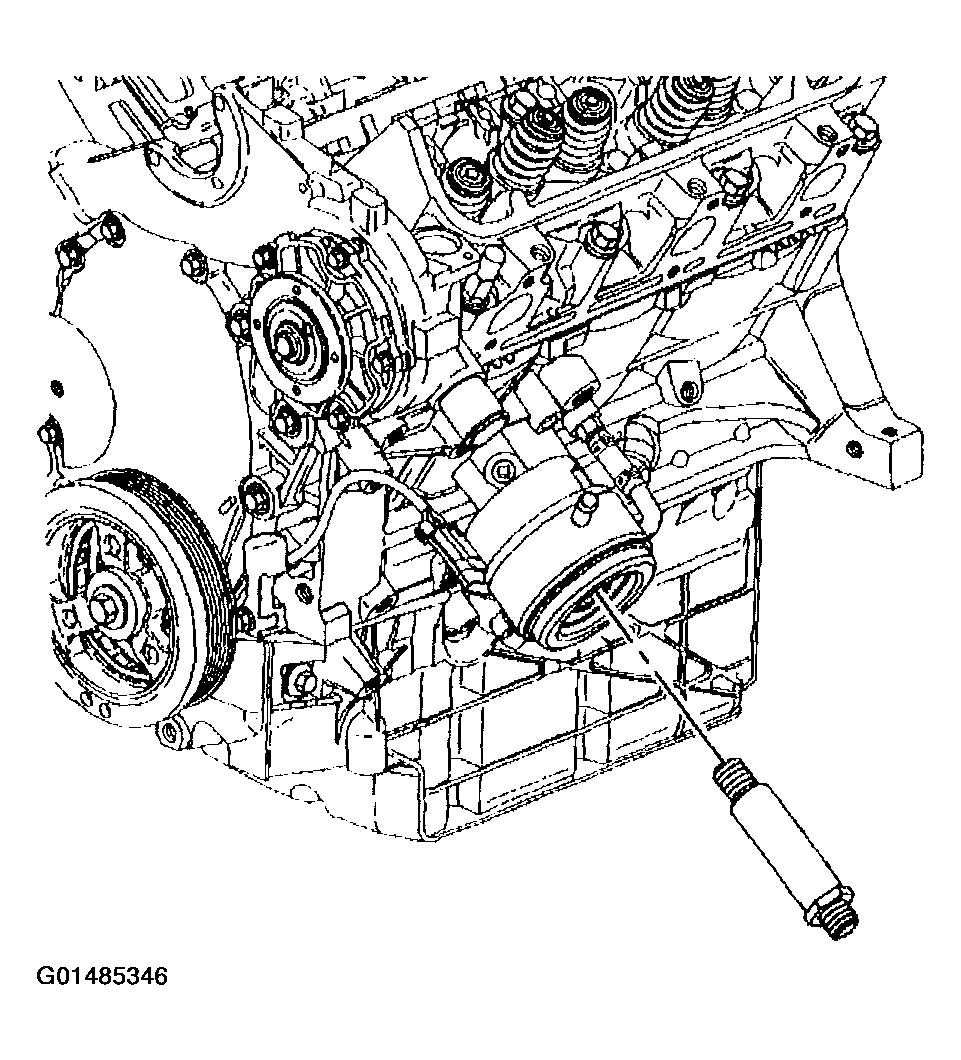

    Fig 2: Installing Oil Cooler Connector
    G01485346Courtesy of GENERAL MOTORS CORP.
  3. Connect the oil cooler outlet hose to the oil cooler.

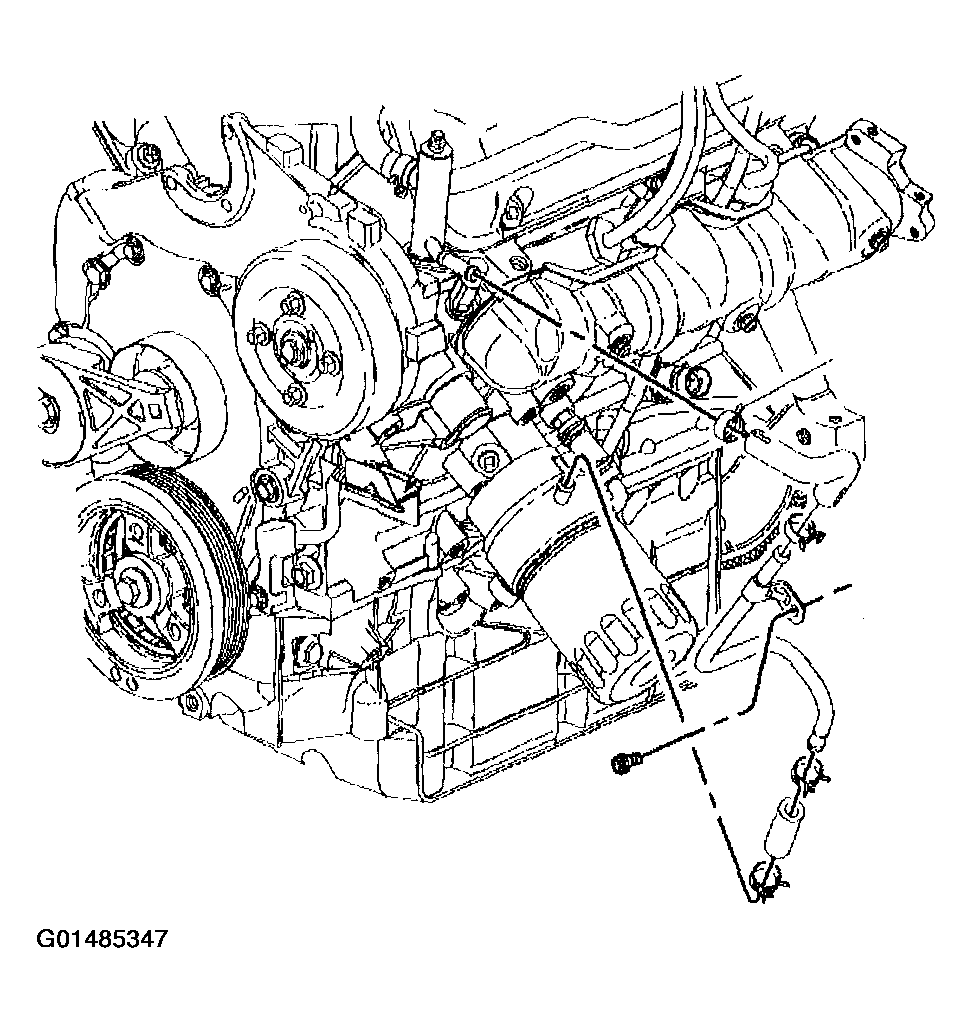

    Fig 3: Connecting Oil Cooler Outlet Hose To Oil Cooler
    G01485347Courtesy of GENERAL MOTORS CORP.
  4. Install the oil filter. Refer to ENGINE OIL AND OIL FILTER REPLACEMENT   .
  5. Connect the knock sensor electrical connector.
  6. Lower the vehicle.
  7. Fill the engine cooling system with engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM  in Engine Cooling.
  8. Add engine oil as necessary. Refer to ENGINE OIL AND OIL FILTER REPLACEMENT   .
  9. Inspect the oil cooler for leaks.

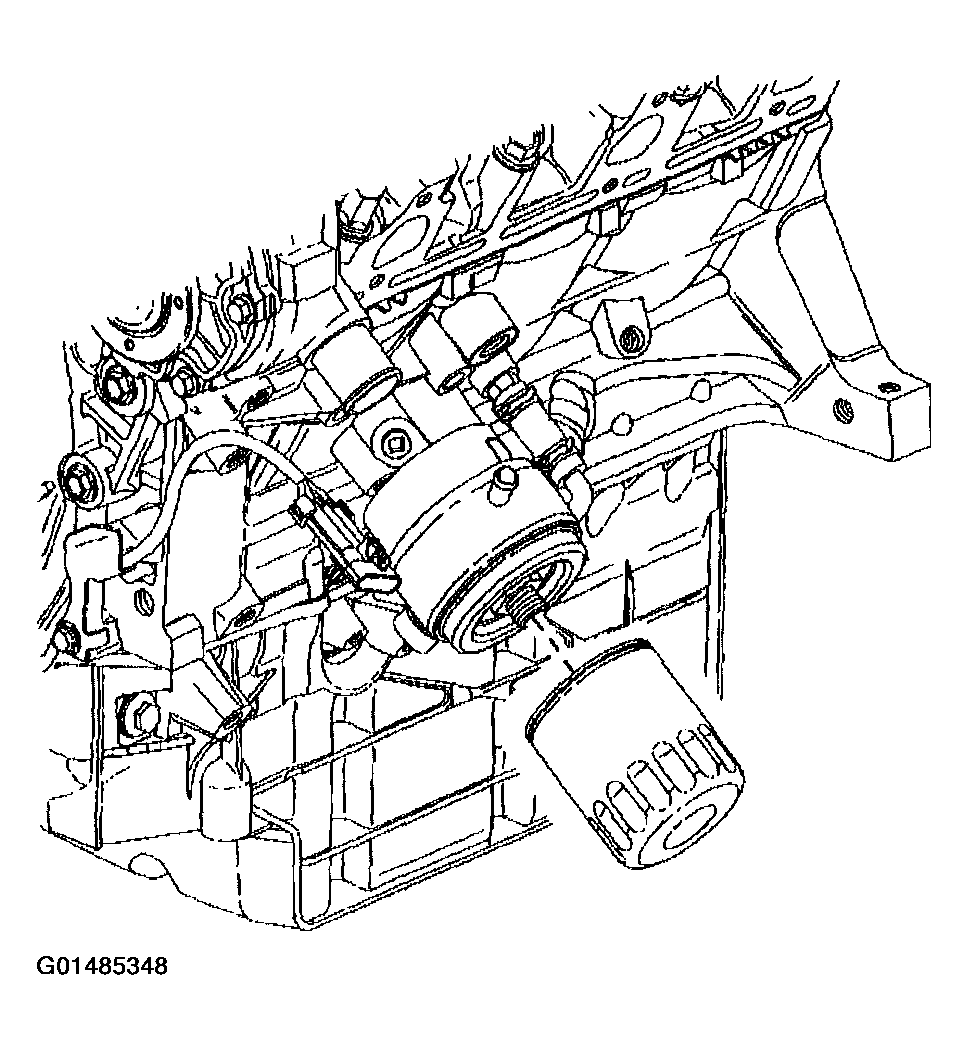

    Fig 4: Installing Oil Filter
    G01485348Courtesy of GENERAL MOTORS CORP.
