Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine coolant from the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
Raise and support the vehicle. Refer to JACKING AND LIFTING in General Information.
Disconnect the knock sensor electrical connector.
Remove the oil filter. Refer to ENGINE OIL AND OIL FILTER REPLACEMENT .

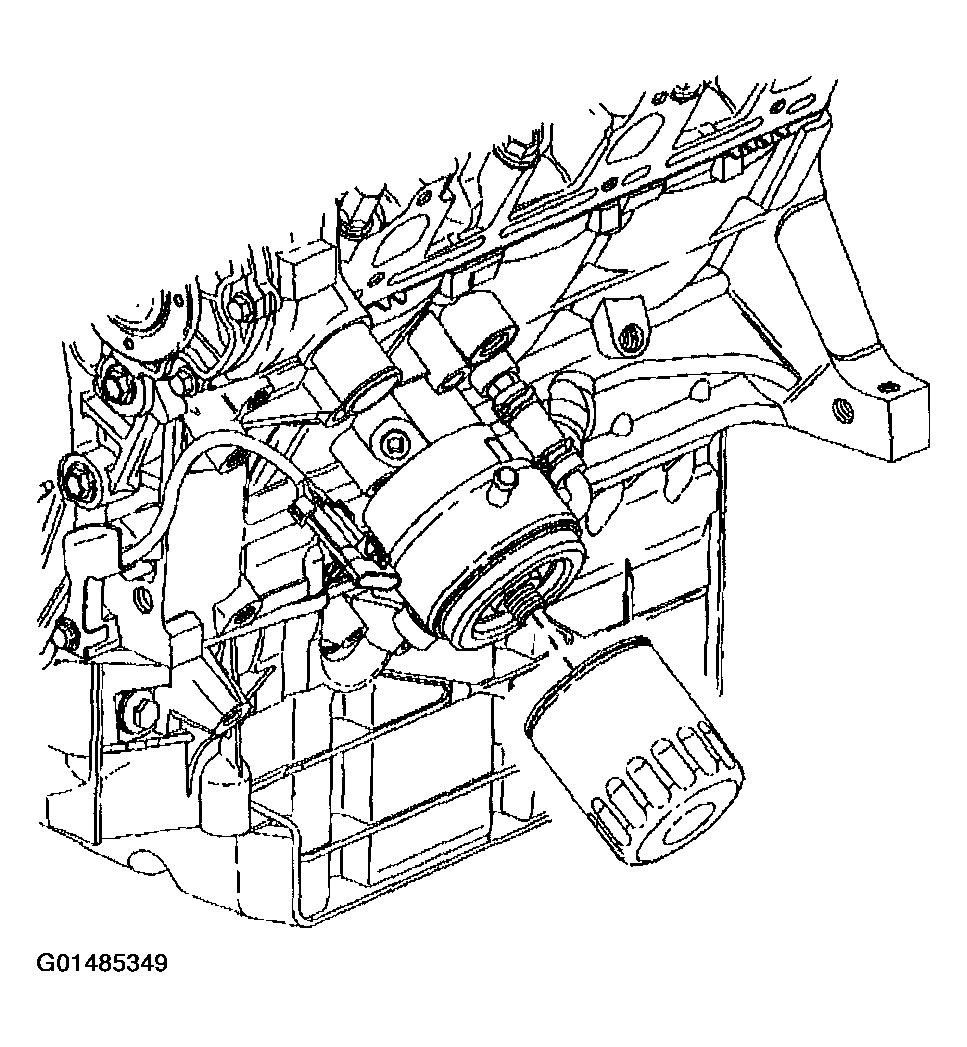

Fig 1: Removing Oil Filter
Courtesy of GENERAL MOTORS CORP.
Disconnect the oil cooler outlet hose from the oil cooler.

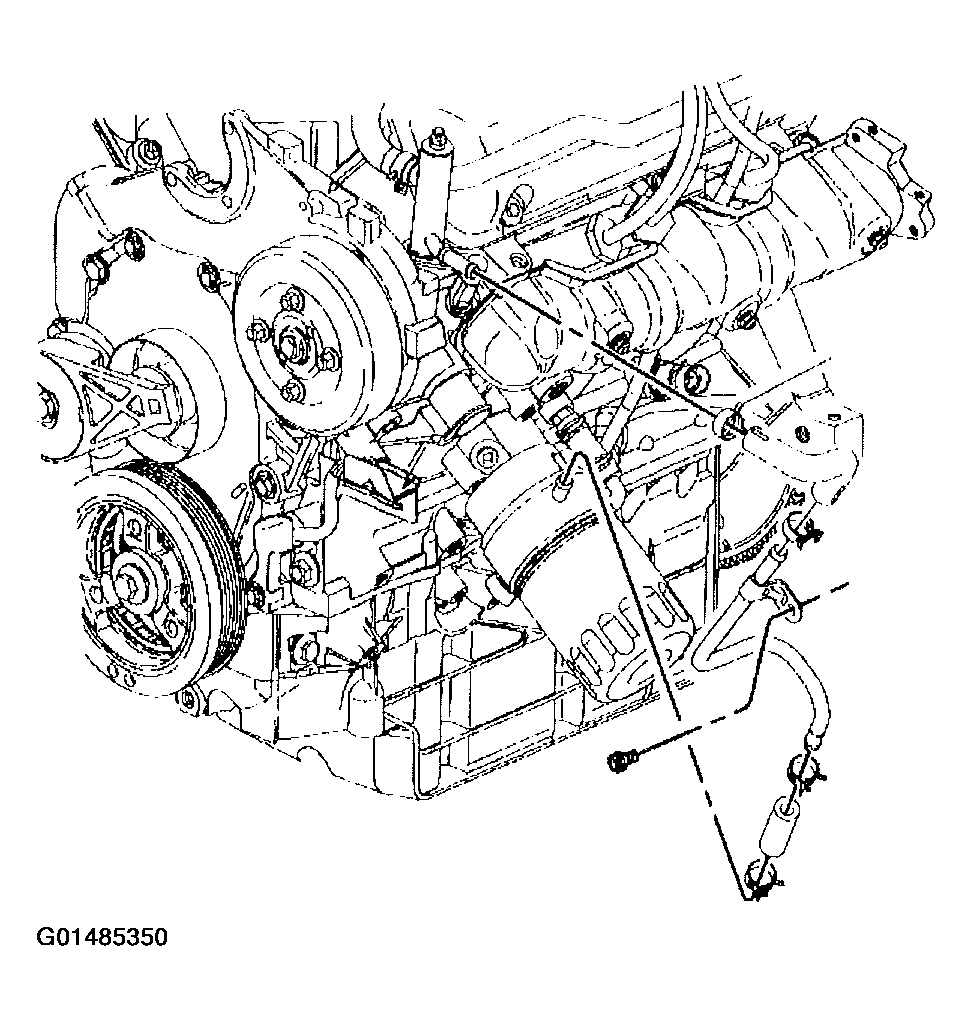

Fig 2: Disconnecting Oil Cooler Outlet Hose From Oil Cooler
Courtesy of GENERAL MOTORS CORP.
Remove the oil cooler connector.

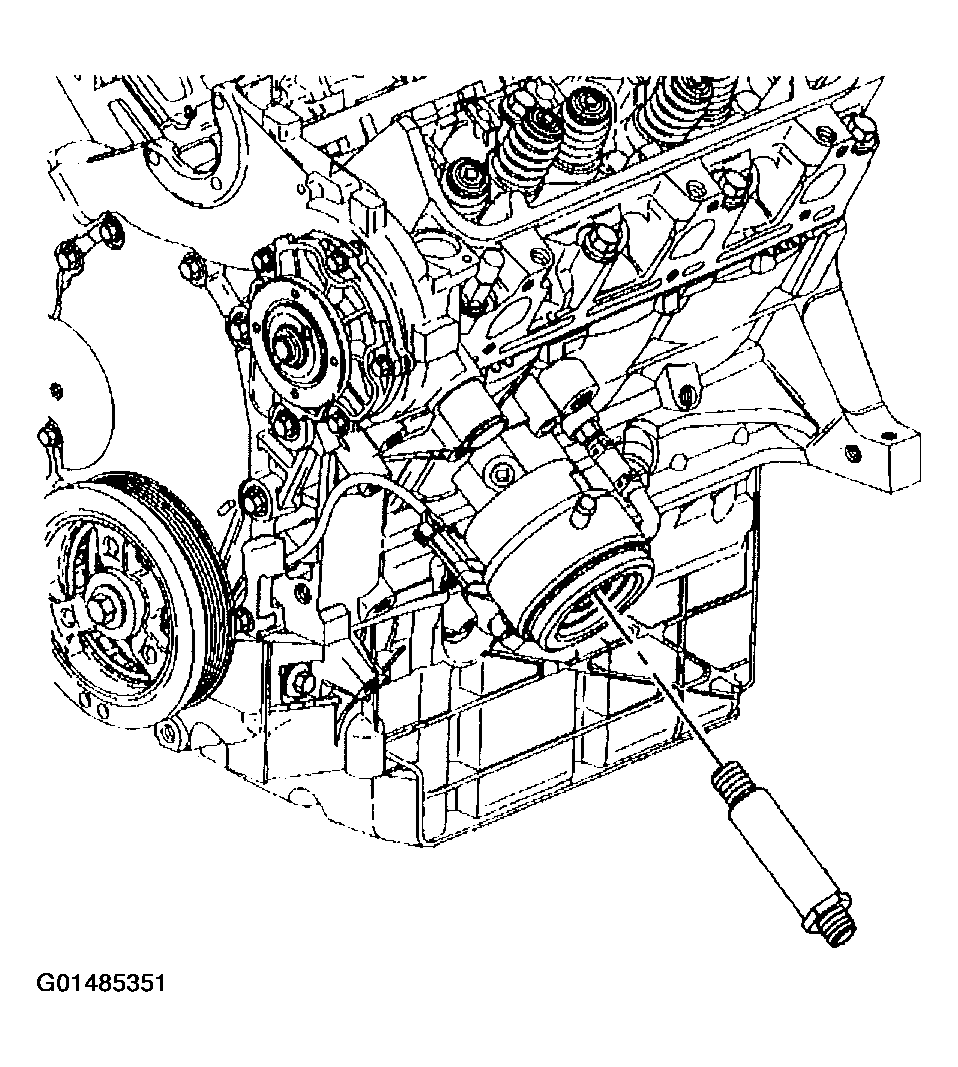

Fig 3: Removing Oil Cooler Connector
Courtesy of GENERAL MOTORS CORP.
Remove the oil cooler inlet hose clamp and the oil cooler.

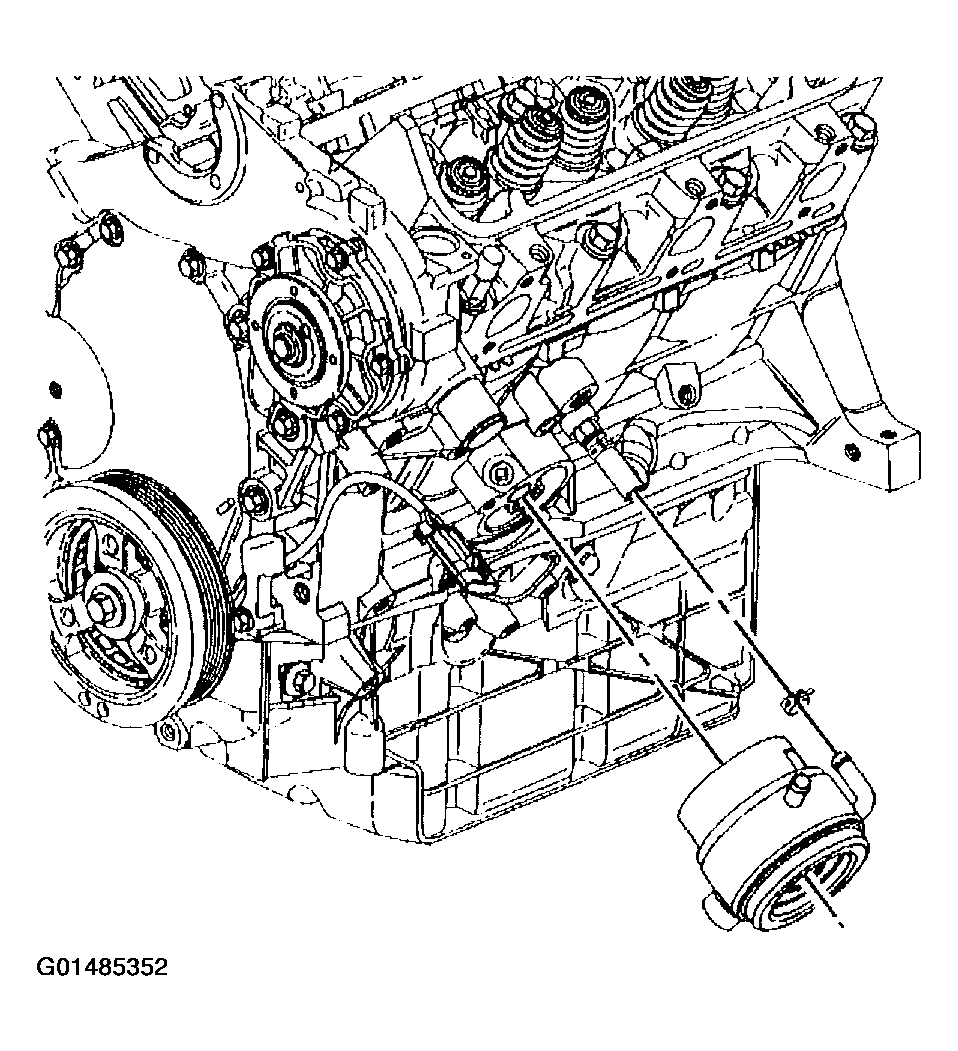

Fig 4: Removing Oil Cooler Inlet Hose Clamp And Oil Cooler
Courtesy of GENERAL MOTORS CORP.
Remove the oil cooler inlet hose clamp and oil cooler inlet hose from the oil cooler hose fitting.

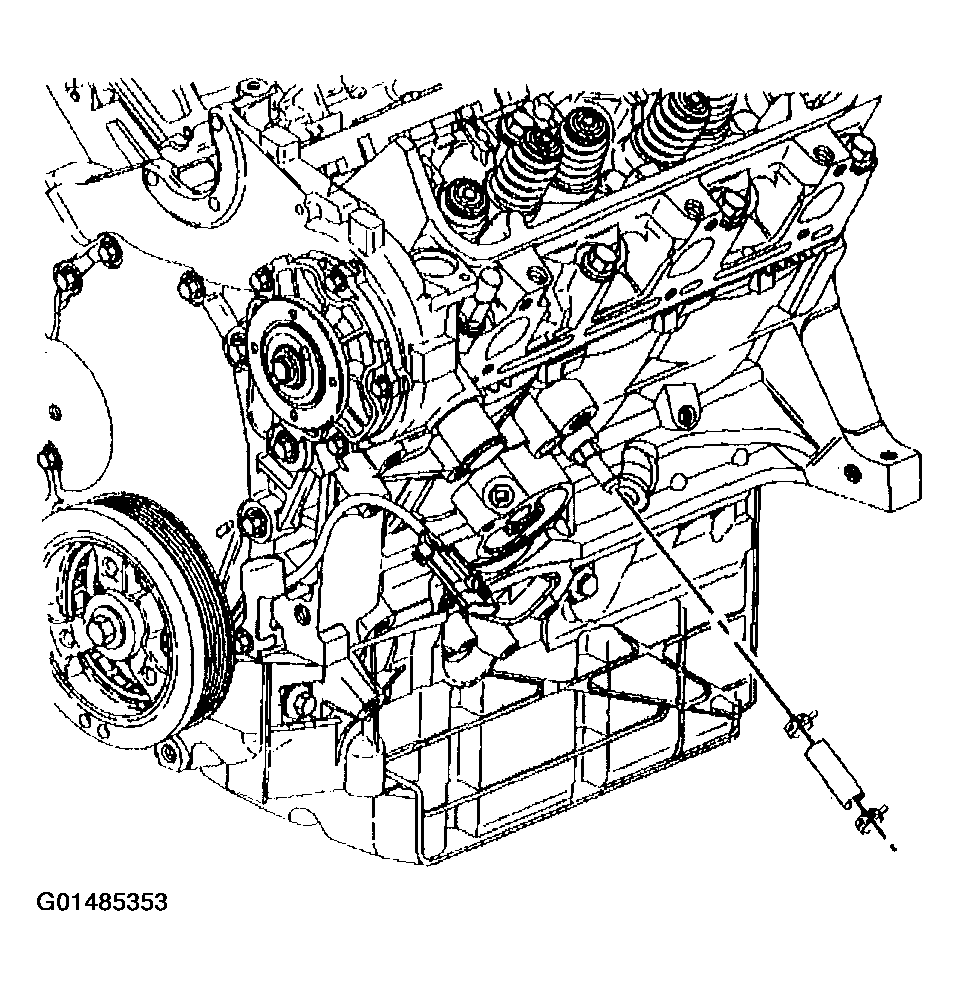

Fig 5: Removing Oil Cooler Inlet Hose Clamp
Courtesy of GENERAL MOTORS CORP.
If necessary, remove the oil cooler hose fitting.

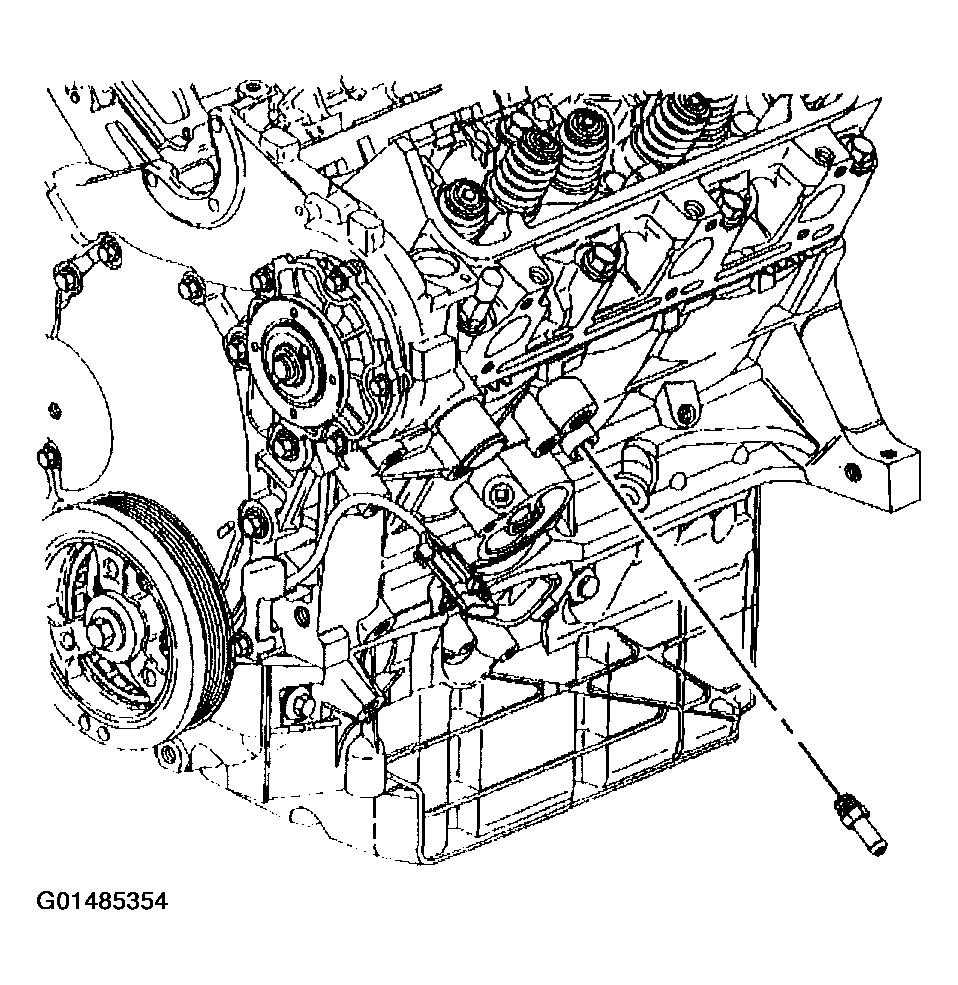

Fig 6: Removing Oil Cooler Hose Fitting
Courtesy of GENERAL MOTORS CORP.
